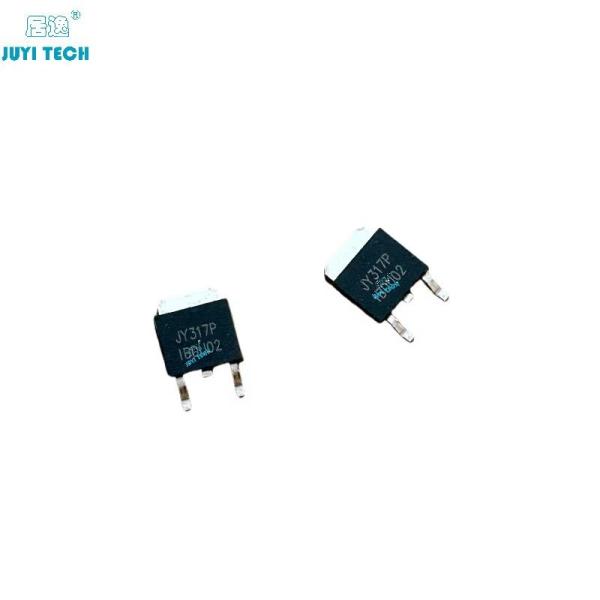

JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
Specifications
Brand Name :
JUYI
Model Number :
JY317P
Place of Origin :
China
MOQ :
10set
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
1000sets/day
Delivery Time :
5-8 working days
Packaging Details :
PE bag+ carton
Model :
JY317P
Color :
black
High-precision reference voltage :
1.5V
Output Current :
1.5A
Application :
Home appliances,Motor Drivers etc.
Vin--Vout :
+40v
Description

JUYI high-precision three-terminal adjustable voltage regulator for home appliances

JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances

DESCRIPTION
JY317P series is a high-precision three-terminal adjustable voltage regulator. The output current up to 1.5A.At the same time, the chip integrates a high-precision reference voltage source and output over-current/short-circuit protection circuit and over-temperature protection current, etc. Therefore, it is particularly suitable for applications with stricter requirements.
FEATURES
●High-precision reference voltage: 1.25V
●Maximum voltage difference between input and output: 40V
●Low output voltage temperature coefficient
●Output Current: 1.5A
APPLICATION
● Home appliances
● Motor Drivers etc.
TYPICAL APPLICATION CIRCUIT
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
PACKAGE AND PIN FEATURES
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
TO-252
Pin Name
Pin No.
Description
VADJ
 1
Reference voltage terminal
VOUT
 2
Output
VIN
 3
Input
ABSOLUTE MAXIMUM RATING
Description
Limit
 Unit
VIN-VOUT +40 V
Output current range IOUT
 1.5 A
Operating Temperature Range
-40-125
 ℃
Storage Temperature Range
-55-150
℃
Note: If the parameters exceed the range of "absolute maximum value", it may cause permanent damage to the chip. The above is
only the limit range. Under such limit conditions, the technical indicators of the chip will not be guaranteed.Working near the "absolute
maximum" for a long time will affect the reliability of the chip.
ELECTRICAL CHARACTERISTICS
JUYI High Precision Three Terminal Adjustable Voltage Regulator For Home Appliances
DOWNLOAD THE DATASHEET OF JY317P
