JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
Specifications
Brand Name :
JUYI
Model Number :
JY2605M
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
10000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
PE bag+ carton
Model :
JY2605M
Speed Adjustment :
Linear
Packaging Specifications :
QFN5*6
Application :
Power Switching application,Electric Vehicles, Industrial Automation, Robotics
Pulsed Drain Current :
185A
Drain-Source Voltage :
60V
Gate-Source Voltage :
±20V
Operating Junction and Storage Temperature Range :
-55 to +175℃
Sensor :
Hall sensor or sensorless
Technical Support :
Yes
Description
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
GENERAL DESCRIPTION

The product utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.

FEATURES
  • 60V/50A, RDS(ON) =14mΩ@VGS=10V(typical)
  • Fast switching and reverse body recovery
  • Fully characterized avalanche voltage and current
  • Excellent package for good heat dissipation
APPLICATIONS
  • Power Switching application
  • Synchronous rectification
  • Motor drive for 12V-24V Systems

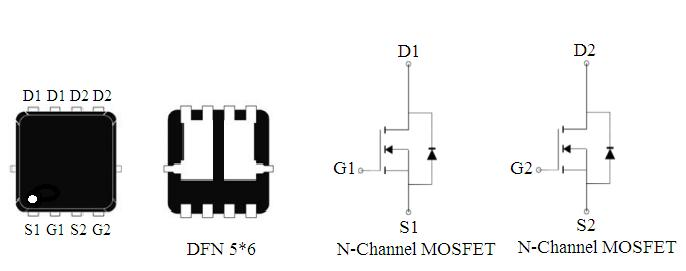

PIN DESCRIPTION
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions

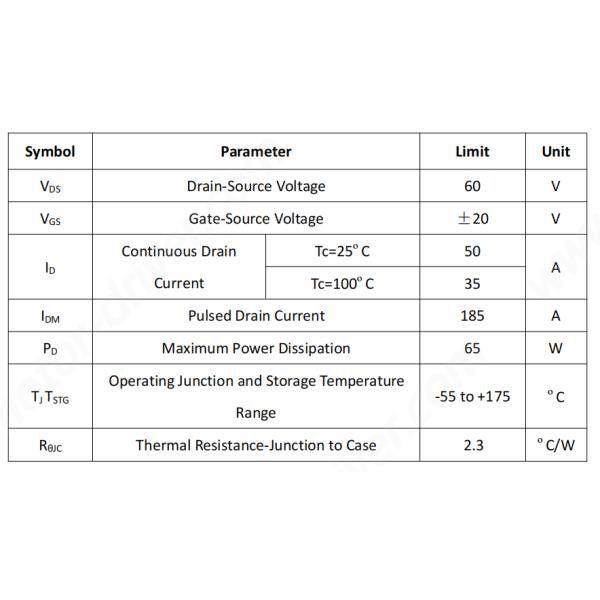

Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions

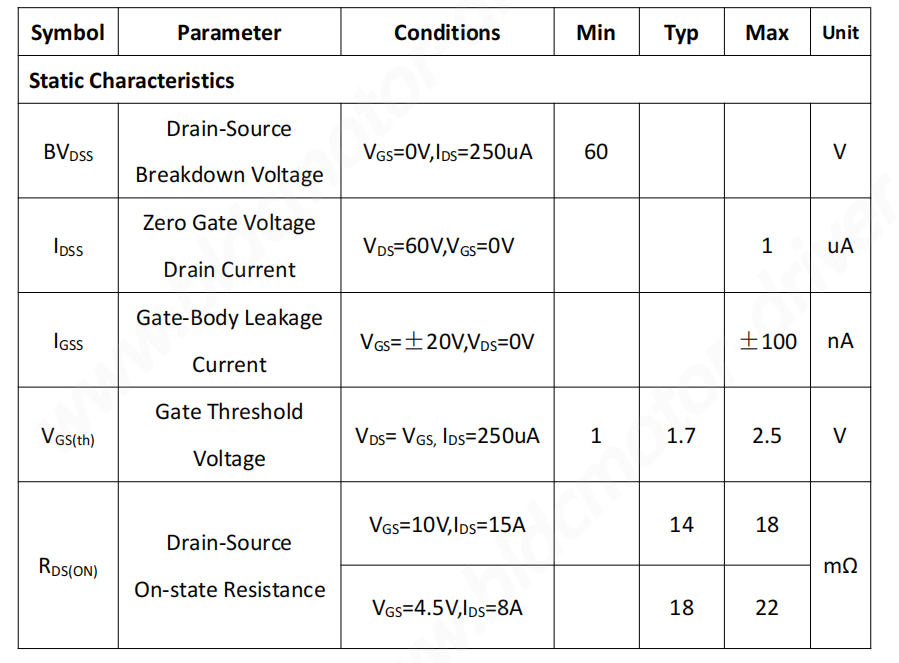

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions

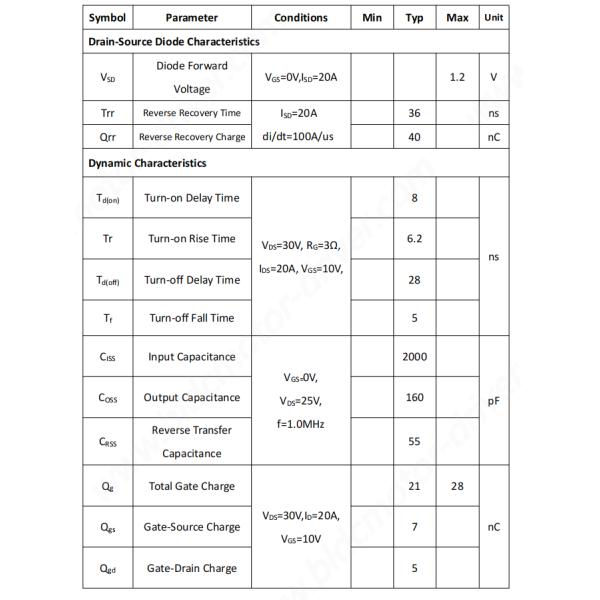

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions

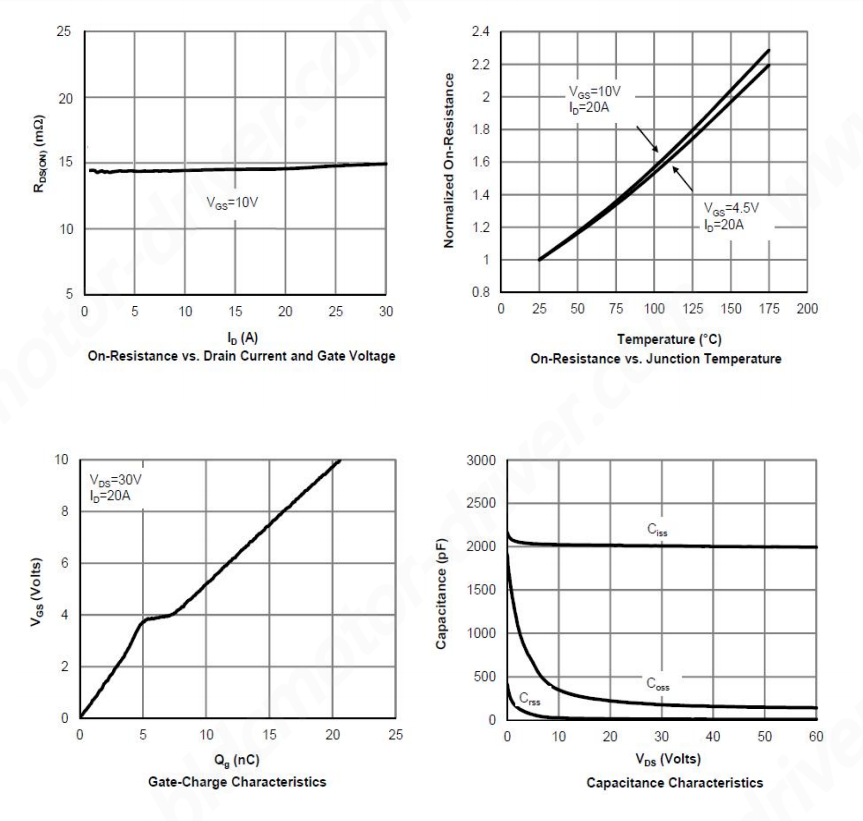

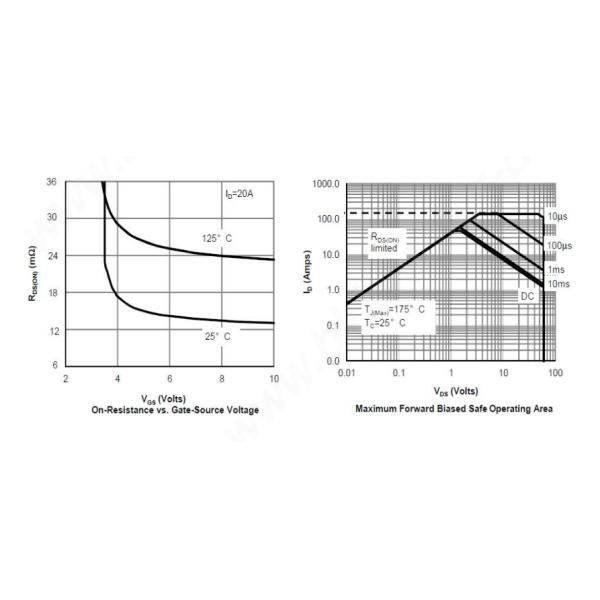

Typical electrical and thermal characteristics
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions

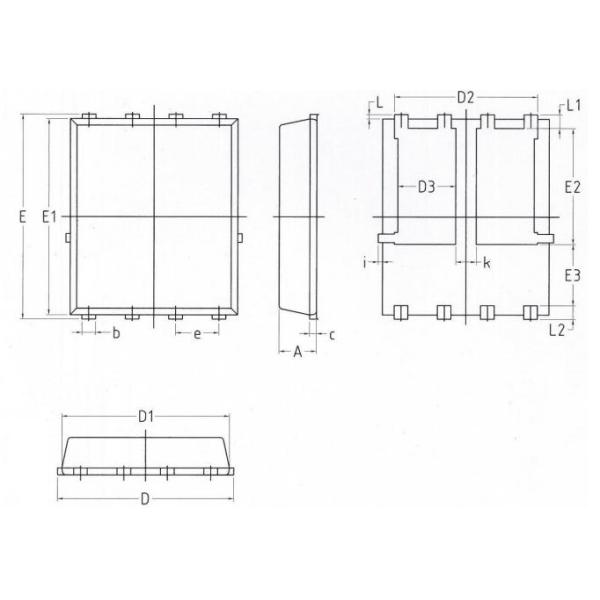

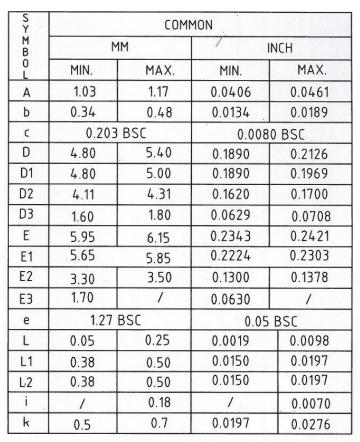

DFN5*6 Package Outline
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
