28mm Brushless DC Motor 12V to 48V 80W Coreless BLDC Motor 8275rpm Customizable

Product Tag: 28mm Coreless Motor , 28mm Ironless Motor , 28mm Slotless Motor , 28mm Slotless Brushless Motor , 28mm Slotless BLDC Motor , 28mm Coreless Brushless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Slotless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Motor , 28mm Brushless DC Motor , 28mm DC Brushless Motor , 28mm Brushless Electric Motor , 28mm BLDC Motor , 28mm Brushless DC Electric Motor , 28mm Sensored Brushless Motor , 28mm Sensorless Brushless Motor

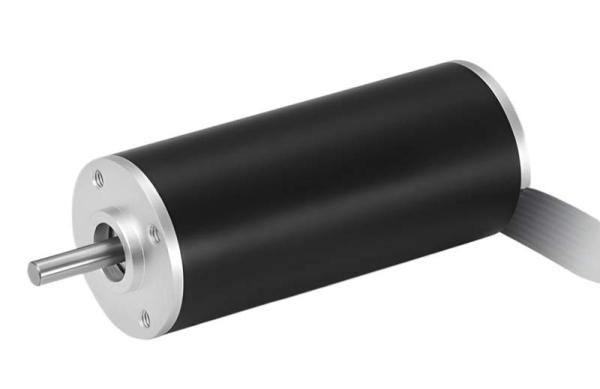

We proudly present our Ø 28mm DC Brushless Motor in a compact size, available with either sensorless or sensored options. Our customization capabilities allow us to adapt the motor to your specific dimensions and requirements.

Unlike standard iron core brushless motors, this Coreless Brushless Motor employs a unique design that omits the iron core.

This innovative approach significantly enhances efficiency and performance.

Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.

These 28mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.

To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

Check Here and download.

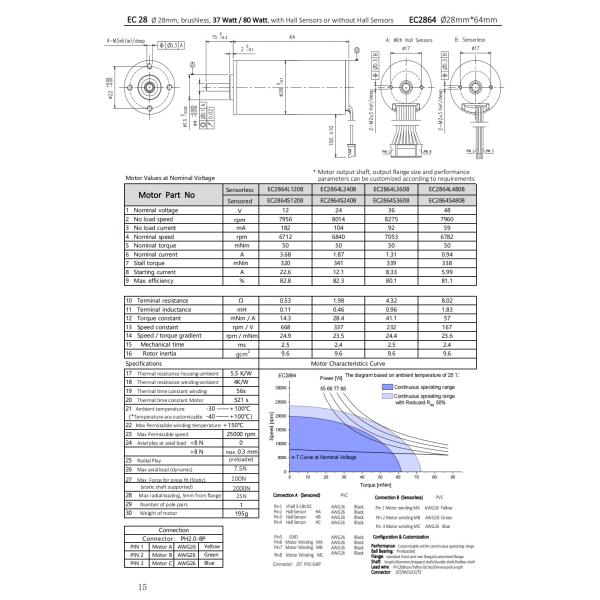

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
