40mm Slotless Brushless DC Motor 12V to 48V Zero Cogging Micromotor 120W 6154rpm Customizable

Product Tag: 40mm Coreless Motor , 40mm Low Cogging Motor , 40mm Cogging Free Motor , 40mm Zero Cogging Motor , 40mm Ironless Motor , 40mm Slotless Motor , 40mm Slotless Brushless Motor , 40mm Slotless Brushless DC Motor , 40mm Brushless DC Slotless Motor , 40mm Slotless BLDC Motor , 40mm BLDC Slotless Motor , 40mm Coreless Brushless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Slotless Motor , 40mm Brushless Coreless Motor , 40mm Brushless Motor , 40mm Brushless DC Motor, 40mm DC Brushless Motor, 36mm Brushless Electric Motor , 40mm BLDC Motor , 40mm Brushless DC Electric Motor , 40mm Sensored Brushless Motor , 40mm Sensorless Brushless Motor

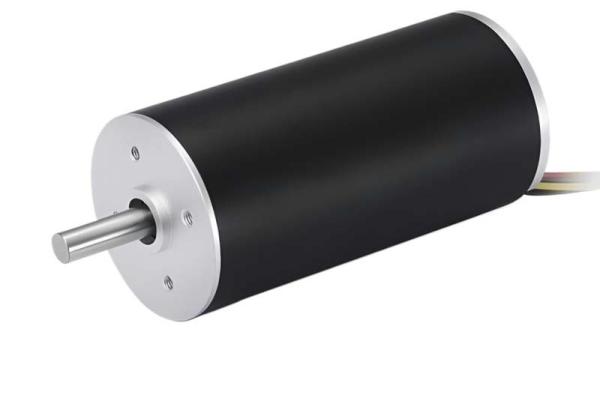

Meet our compact Ø 40mm Slotless Brushless DC Motor, which comes in both sensorless and sensored variations. With a variety of customization options, we can tailor the motor precisely to your specifications and dimensions.

Unlike standard iron core brushless motors, this slotless design showcases a unique construction that lacks an iron core.

This innovative approach significantly improves efficiency and performance.

Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.

These 40mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.

To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

Check Here and download.

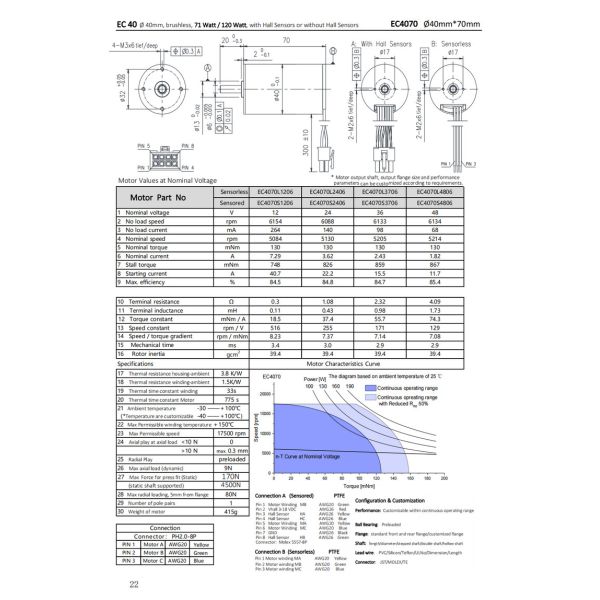

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
