23mm High Torque Brushed DC Motor 12V 27.5 Watt 9860rpm Energy Efficient
23mm High Torque Brushed DC Motor 12V 27.5 Watt 9860rpm Energy Efficient
Specifications
Brand Name :
PM
Model Number :
RE2347
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
300
Price :
6- 120 US$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
89000PCS per Month
Delivery Time :
15 working days
Packaging Details :
strong export carton box outside,Poly foam inside
Product Type :
23mm Electric Motor
Rated Torque: :
9mNm or Customized
Rated Voltage :
9V to 24V DC or Customized
Applicaiton Field :
precision drives in medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Warranty :
2 Years
Motor Dimension :
23mm (motor diameter)*47mm (body length)
Description

23mm 12V Brushed DC Motor 27.5 Watt 9860rpm 9V to 24V Customizable Coreless Motor

Product Tag: 23mm Electric Motor, 23mm Brush Motor, 23mm Micro Motor, 23mm Micromotor, 23mm Brushed Motor, 23mm DC Motor, 23mm Coreless Motor, 23mm Brush DC Motor, 23mm Coreless DC Motor, 23mm DC Coreless Motor, 23mm Brushed DC Motor

  • Step into the world of precision with our coreless brush motors, where slotless windings weave a tale of seamless performance.
  • Our design is a symphony of a symmetrical winding, a commutator, and a motor shaft, harmonizing to create smooth, stable operation while dancing away vibrations.
  • These motors are not just efficient—they’re quick, with low inertia for rapid bursts of acceleration, free from cogging, and delivering a consistent linear output.
  • Perfect for the art of speed regulation and servo magic, our collection spans 8 mm to 40 mm in diameter, and we can craft bespoke sizes to fit your creative vision!

If you're currently using slotless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.

Key Specifications for this Ø23mm DC Motor

  • Motor Dimension: 23mm (motor diameter)*47mm (body length)
  • Rated Voltage: 9V to 24V DC or Customized
  • Rated Torque: 28.1mNm or Customized
  • Rated Speed: 6160rpm to 9860rpm or Customized
  • Rated Power: 27.5W or Customized
  • Can be assembled with gearboxes, brakes and encoders.

To see the product catalogue on our Coreless Brush Motor Φ8-40mm , please

Check Here and download.

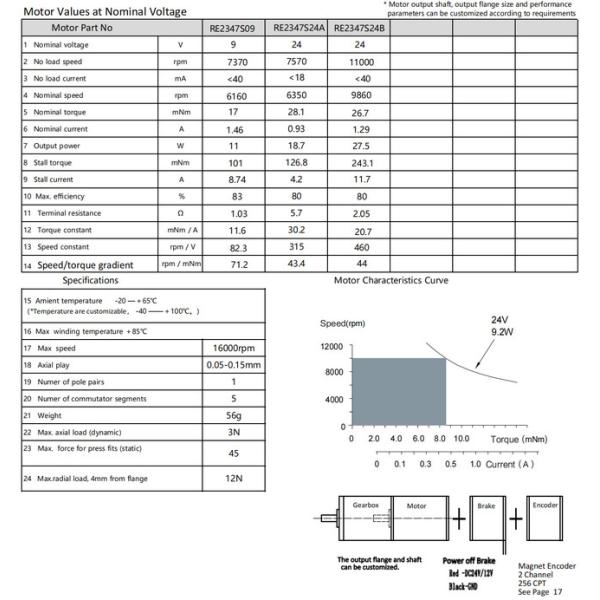

Please review the standard data and dimensions of the motor below.

Please note that we can provide deep customization based on your size and data requirements.

23mm High Torque Brushed DC Motor 12V 27.5 Watt 9860rpm Energy Efficient

23mm High Torque Brushed DC Motor 12V 27.5 Watt 9860rpm Energy Efficient
