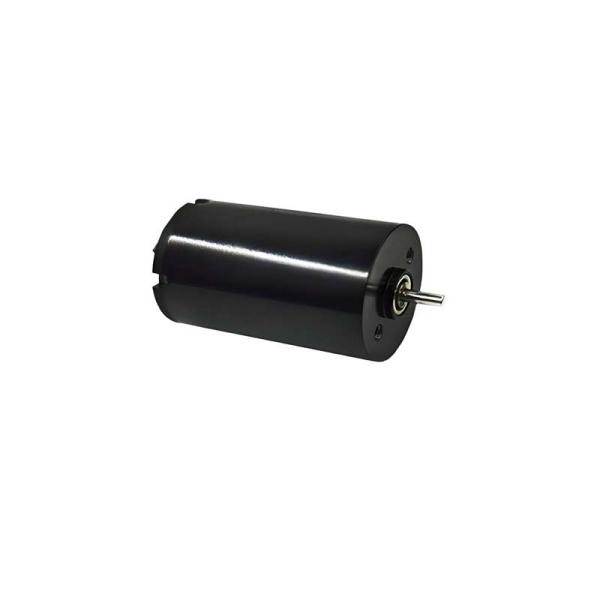

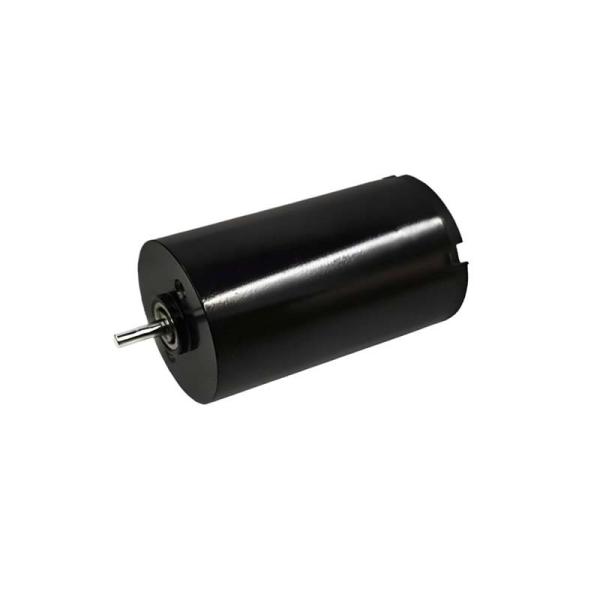

16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
Specifications
Brand Name :
PM
Model Number :
RE1625
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
300
Price :
6- 120 US$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
80000PCS per Month
Delivery Time :
21 working days
Packaging Details :
strong export carton box outside,Poly foam inside
Product Type :
DC Electric Motor- Coreless Motor
Rated Torque: :
1.5mNm or Customized
Rated Voltage :
6V to 24V DC or Customized
Applicaiton Field :
precision drives in medical equipment and devices, healthcare products, automotive, robotics, and industrial automation
Warranty :
2 Years
Motor Dimension :
16mm (motor diameter)*25mm (body length)
Description

16mm Coreless Motor Micromotor DC Brush Type 1.57 Watt 9980rpm 6V to 24V Customizable

Product Tag: 16mm Electric Motor, 16mm Brush Motor, 16mm Micro Motor, 16mm Micromotor, 16mm Brushed Motor, 16mm DC Motor, 16mm Coreless Motor, 16mm Brush DC Motor, 16mm Coreless DC Motor, 16mm DC Coreless Motor, 16mm Brushed DC Motor

  • Coreless Windings: Essential for our precision brushed DC coreless motors (Brush Motors).
  • Design Features: Symmetrical winding, commutator, and motor shaft for smooth operation and reduced vibration.
  • Advantages: Low inertia for quick acceleration, high efficiency, no cogging, and reliable linear output.
  • Applications: Effective in speed regulation and servo functions.
  • Size Range: Available from 8 mm to 40 mm in diameter, with custom sizes and specifications easily accommodated.

If you're currently using Coreless motors from Maxon, Faulhaber, or Portescap, we urge you to consider us as the premier alternative choice.

Key Specifications for this Ø16mm DC Coreless Motor

  • Motor Dimension: 16mm (motor diameter)*25mm (body length)
  • Rated Voltage: 6V to 24V DC or Customized
  • Rated Torque: 1.5mNm or Customized
  • Rated Speed: 5860rpm to 9980rpm or Customized
  • Rated Power: 1.57W or Customized
  • Coreless DC Motors can be assembled with gearboxes, brakes and encoders.

To see the product catalogue on our Brush dc motor coreless type Φ8-40mm , please

Check Here and download.

Please review the standard data and dimensions of the motor below.

Please note that we can provide deep customization based on your size and data requirements.

16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable

16mm Brushed DC Motor 1.57 Watt 9980rpm Electric Brush DC Motor 24V Customizable
