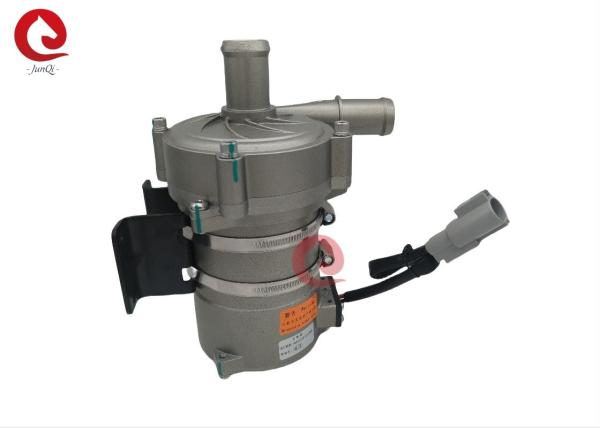

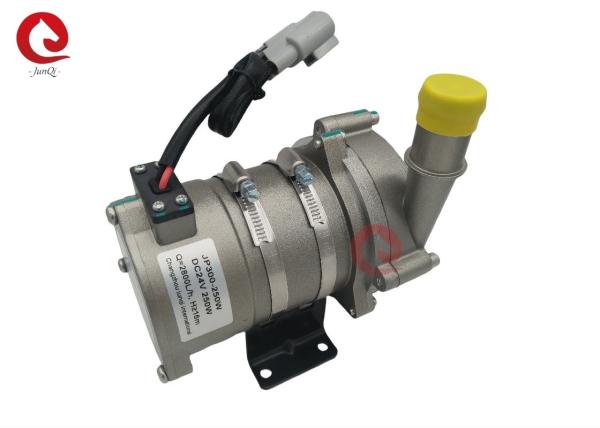

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head
Specifications
Brand Name :
Junqi
Model Number :
JP300-250W
Certification :
TS16949,ISO9001,CE
Place of Origin :
China
MOQ :
2 pcs ( sample available)
Price :
negotiation
Payment Terms :
T/T,,Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Description :
Electric Vehicle Coolant water pump
Model :
JP300-250W
Rated Voltage :
24VDC
Power :
250W
Rated Flow :
2800L/h
Rated Head :
16m
Description

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head



Pumps Features:


1. Built-in a variety of protection functions and power reverse protection function;

2. Troubleshooting: When there is a fult, the fault feedback line is low, and when there is no fault, the fault feedback line is high( the fault level is based on customer requirements.)


Technical Parameter:


Model JP300-250W
Rated Voltage 24VDC
Rated Current 10.5A
Operating Voltage DC 18~32V
Rated Power 240W
Workign environment -40℃~85℃
Working Medium 50% glcol aqueous solution
Protection level IP68
Working Noise ≤60dB ( Distance 1m)
Working life ≥20000h
Weight 2.45KG
Protection function Blocked rotation, reverse connection, over voltage, low voltage, over current, over temperature, idling.



Working Performance Curve:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head



Application:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head




Work shop:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head


Dimensions(mm):

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head


Certificate:

JUNQI Electric Bus Water Pump JP300-250W 24V New Energy Passenger Bus Circulating Water Pump 2800L/h, 16m Lift Head

For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
