24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling
Specifications
Brand Name :
Junqi
Model Number :
JP200-3X Series
Certification :
TS16949,ISO9001,CE
Place of Origin :
China
MOQ :
12pcs ( sample available)
Price :
negotiation
Payment Terms :
T/T,,Western Union,Paypal
Supply Ability :
10000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Description :
Electric Vehicle Coolant water pump
Model :
JP200-3X
Rated Voltage :
24VDC
Power :
240W
Rated Flow :
2000L/h
Rated Head :
18m
Description

24V 240W High Lift 18m JP200-3X Eelectronic Water Pump For Cocal Trucks and MuCK Truck Engine Cooling



Technical Parameter:


Model JP200-3X
Rated Voltage 24VDC
Rated Current 10A
Operating Voltage DC 18~32V
Rated Power 240W
Workign environment -40℃~105℃
Working Medium 50% glcol aqueous solution
Protection level IP68
Working Noise ≤61dB ( Distance 1m)
Working life ≥20000h
Weight 2.45KG
Protection function Blocked rotation, reverse connection, over voltage, low voltage, over current, over temperature, idling.


Pumps Features:


1. Built-in a variety of protection functions and power reverse protection function;

2. Troubleshooting: When there is a fult, the fault feedback line is low, and when there is no fault, the fault feedback line is high( the fault level is based on customer requirements.)

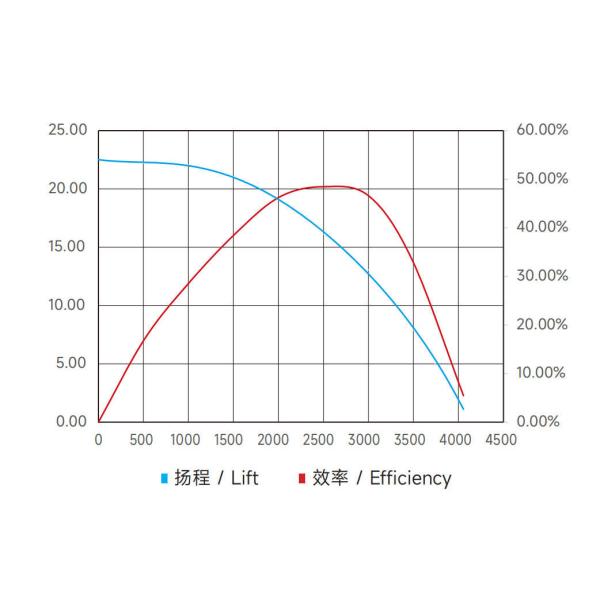

Working Performance Curve:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling



Application:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling




Work shop:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling

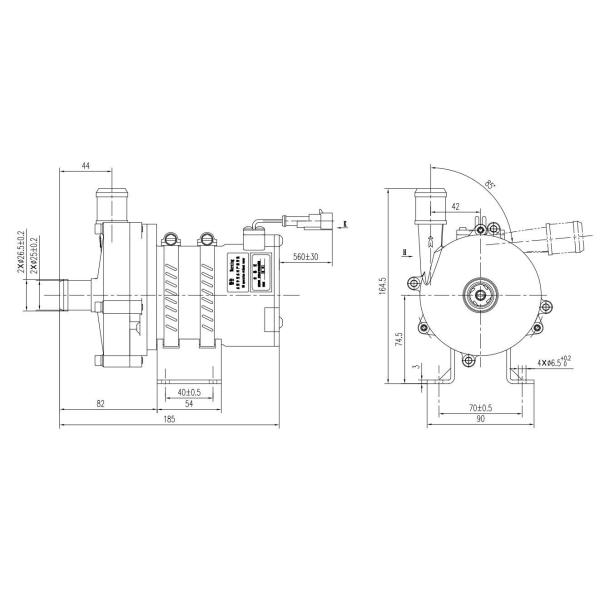

Dimensions(mm):

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling


Certificate:

24V 240W High Lift 18m JP200-3X Electronic Water Pump For Cocal Trucks And MuCK Truck Engine Cooling

For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
