12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling
Specifications
Brand Name :
junqi
Model Number :
JP80
Certification :
IS9001, TS16949,CE
Place of Origin :
China
MOQ :
5 sets
Price :
USD45-USD70
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000set/month
Delivery Time :
base on order,
Packaging Details :
suitable for export
Model :
JP80
Material :
PPS
Voltage :
12VDC/ 24VDC
Power :
80W
Rated Flow Rate :
20LPM,
Max Head :
8m
Application :
Automotive industry, Biofuel Industry, Temperature Control, Motorcycle
Medium :
Antifreeze
Rated Current :
6.7A/3.3A
Outlet Size :
22mm
Structure :
Single-stage Pump
Description

12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling



Water Pump Features:

1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 45dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 20000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)

9.PWM speed adjustable(optional)

10. FG Signal output(optional)

Water Pump Techincal Parameters:

Model JP80
Rated Voltage (V) 12V/24V
Voltage Range (V) DC9~16V/ 18~32V
Rated Current(A) 6.7A/3.3A
Rated Head (m) 8m
Rated Flow (L/min) 20L/min
Rated Power (W) 80W
Max Noise (dB) ≤45dB
OD of inlet (mm) ∅22mm
OD of outlet(mm) ∅22mm
Protection Level IP67
Insulation Level H
Ambient temperature(℃) -40 to 105℃
Medium Antifreeze
Weight (kg) 0.8kg


Water Pump Performance Curve:

12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling

Overall Dimensions:

12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling

Water Pumps applications:

12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling

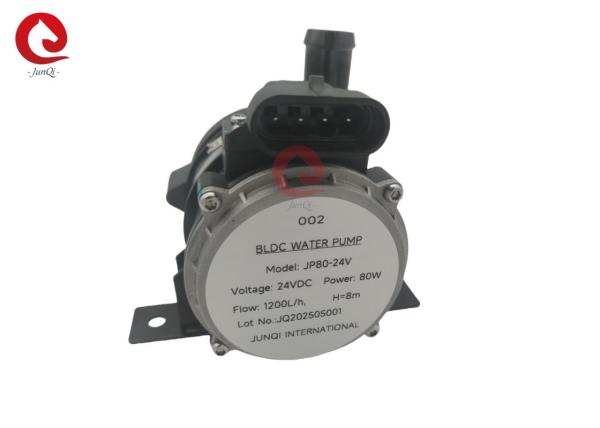

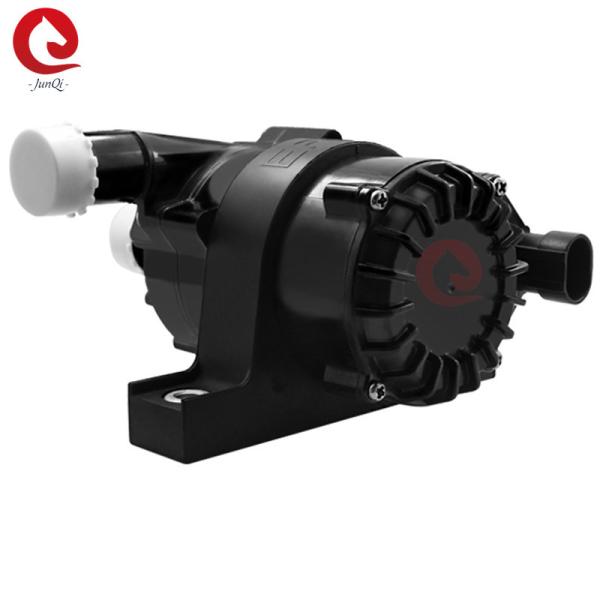

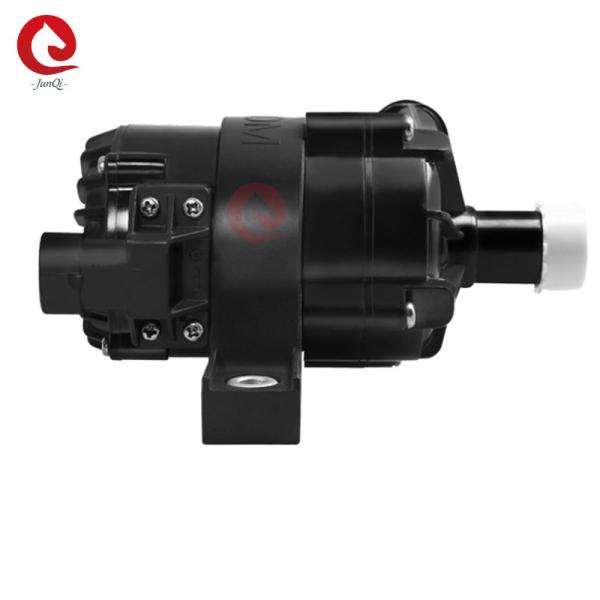

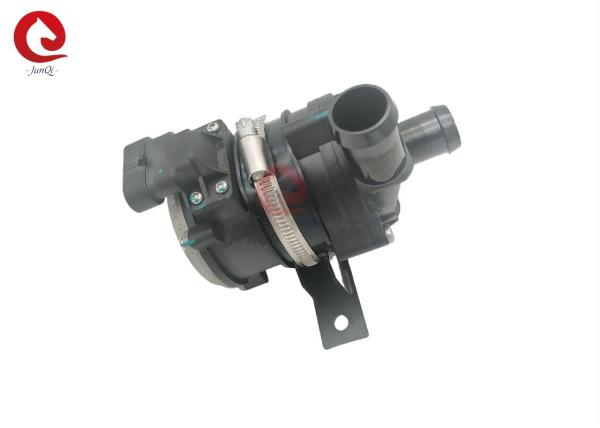

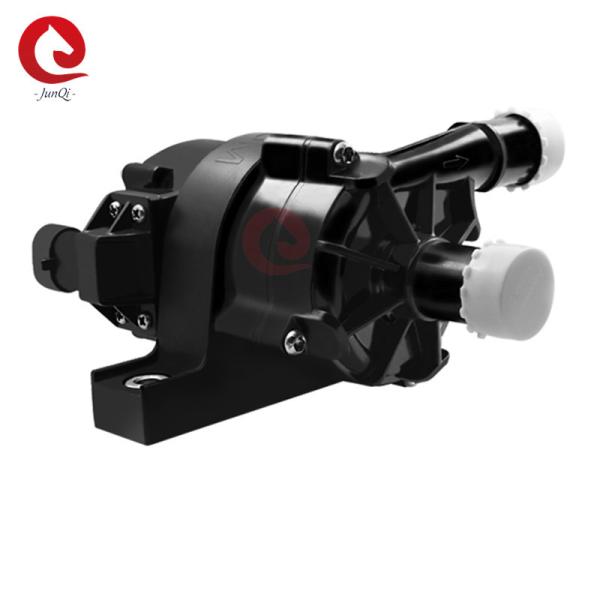

Water Pump View Pictures:

12V/24V High Pressure Liquid Cooling Pump JP80 For Charging Station Cooling

FAQ:

Q: How long is your delivery time?

A: Sample order is 7~10 days.

Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.


Q: How long is your warranty of pump?

A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.


Q: What’s the payment method?

A: Paypal,T/T,


Q: What certificates have your pumps passed?

A: All our products have passed CE, RoHS, Reach.

Parts of pumps met UL.


Q: What certificates have your company passed?

A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001


If you want to get more information about products, please feel free contact with us via ivanzhu@junqitrading.com
