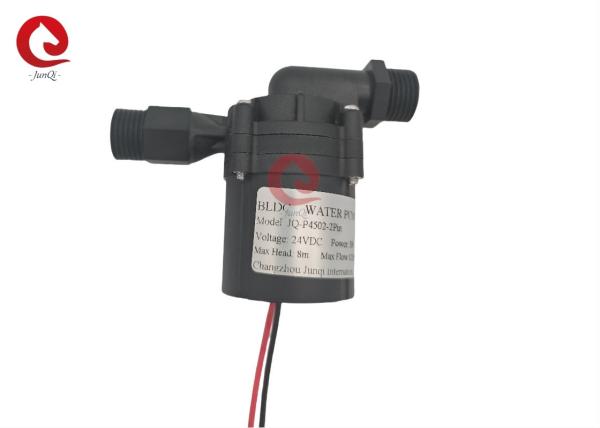

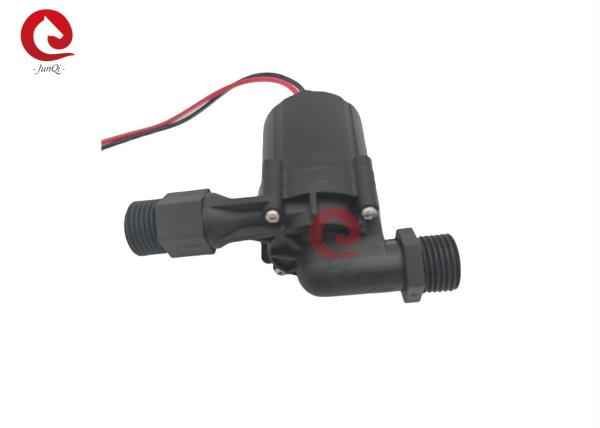

24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502
Specifications
Brand Name :
junqi
Model Number :
JQ-P4502-2pin
Certification :
IS9001, TS16949,CE
Place of Origin :
China
MOQ :
5 sets
Price :
Negotialbe
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000set/month
Delivery Time :
base on order,
Packaging Details :
suitable for export
Model :
JQ-P4502-2pin
Material :
PPS
Voltage :
24VDC
Power :
28W
Rated Flow Rate :
11L/min,
Max Head :
8M
Medium :
water
Max. Current :
1.2A
Outlet Size :
21mm
Structure :
Single-stage Pump
Description

24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502


Water Pump technical parameters:

Model Rated Voltage Max.current Max.Flow rate Max.Lift Ambient Temperature
JQ-P4502-12V DC12V 1.5A 10LPM 6m -10~100℃
JQ-P4502-24V DC24V 1.2A 11LPM 8m -10~100℃


Water Pump Performance Curve:

24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502

Overall Dimensions:

24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502

Applications:

Solar heater circular water system

Intelligent toilet core

Water heating mattress

Homemade beer machine

Water heater supercharging.

24V DC Brushless Motor Panel Hot Water Circulation Mini Pump JQ-P4502

If you want to get more information about products, please feel free contact with us via ivanzhu@junqitrading.com
