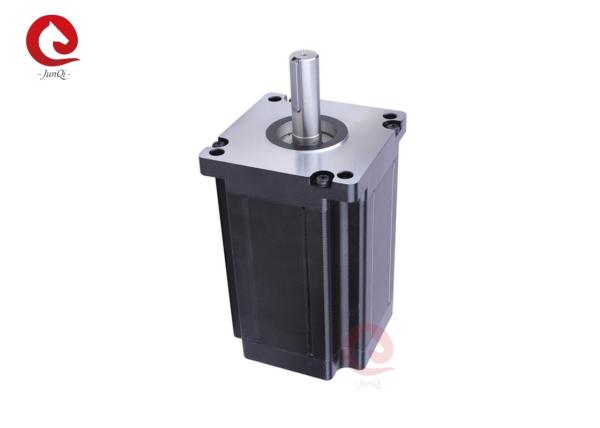

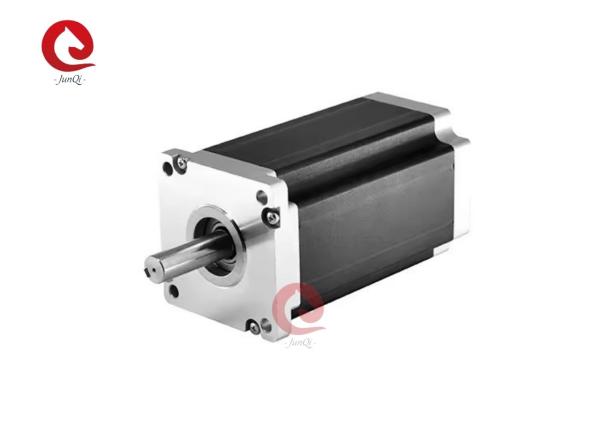

110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts
Specifications
Brand Name :
JEUNKEI
Model Number :
JQ1103P170-01
Certification :
TS16949,ISO9001, ISO14001,CE, RoHs
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD50~USD90/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
1.2° Nema42 Stepper Motor
Model No. :
JQ1103P170-01
Current/Phase :
4.1A
Holding Torque :
13.92N.m
Length :
173mm
No. of Lead wires :
6
Step Angle :
1.2 °
Weight :
8kg
Description

110mm 3-Phase Hybrid Stepper Motor 173mm Length, 4.1A 13.92 N.m CNC machine Parts

General Specification:

Item Specifications
Step Angle 1.2°
Step Angle Accuracy ±5%(full step, no load)
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max. Radial force 330N(20mm from the flange)
Max.Axial force 100N
Ambient Temperature -20℃～+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 1800VAC/1s
Insulation Class Class B

Electrical Specification:

Model No.

Current/

Phase

Resistance/

phase

Inductance/

phase

 Holding Torque Detent Torque # of leads Rotor Inertia Lengh Weight
Single shaft A Ω mH N.m N.m # g-cm² mm kg
JQ1103P170-01 4.1 1.96 18 13.92 1.01 6 10500 173±1 8

Notes: The moitor can be designed and manufactured with customized request.

Mechanical Size(mm):

110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts

Wiring Diagram:

110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts

Pull out torque curve:

110mm 3 Phase Hybrid Stepper Motor 173mm Length 4.1A 13.92 N.m CNC machine Parts

FAQ:

Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit

Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.

Q: What’s Moq?

A: 5PCS. Small Order Welcome.

Q:Do You Make Customized Product?

A:Yes,We Accpet IT.

Q:About After Sale Serive?

A: After Sales Services 24/7.

Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.

Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details

Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
