18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
18VDC 24VDC M430D Stepper Driver
Specifications
Brand Name :
JunQi
Model Number :
M430D
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, PAYPAL
Supply Ability :
2000 sets / Month
Delivery Time :
as confirmed
Packaging Details :
suite for export package
Product Name :
Stepper Motor Driver
Suitable For Motor Type :
2-phase Stepping Motor 28-57mm
Model :
M430D
Input Voltage :
18-40V
Peak Current :
0.9-3A
Power Supply :
DC Supply
Application :
Automatic Product
Description

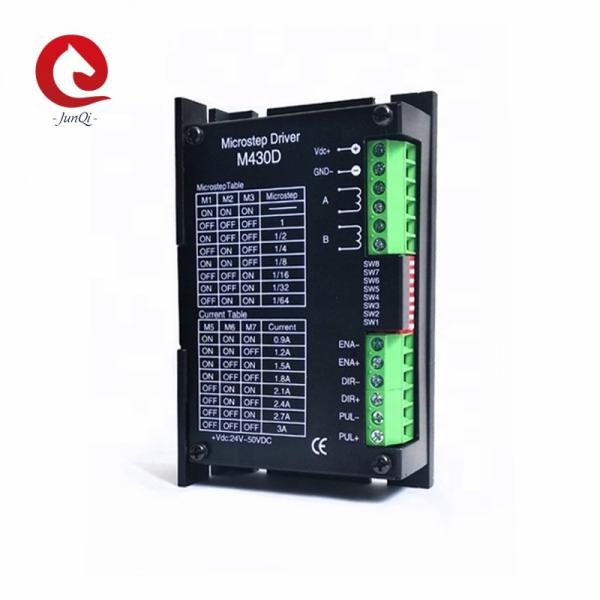

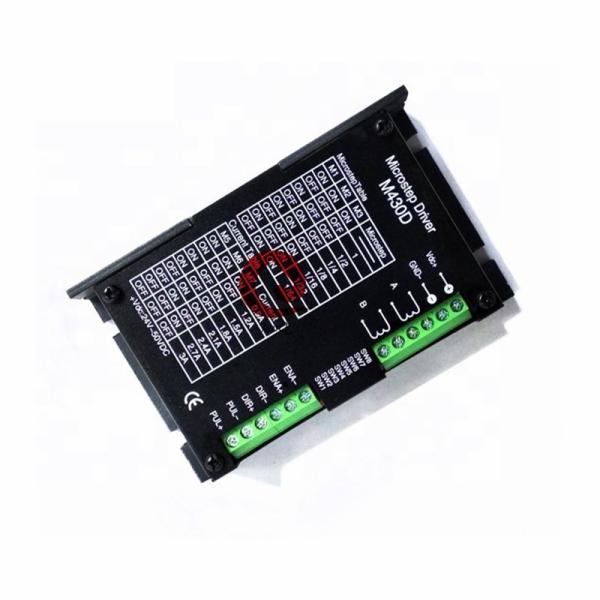

M430D 2 phase stepper motor driver

Features

1. 2phase stepper driver, adoption of bipolar constant-current chopper technology

2. Low-noise, low-vibration and low temperature rising

3. Voltage 18-40VDC

4. With 8 stalls output current setting, current range 0.9-3.0A

5. With 7 stalls microstep subdivision setting

6. Automatic Half current, motor wires misconnected protection

7. Internal optical isolation, highest frequency response 200KHZ

8. Suitable for nema 17, nema 23 stepper motor current under 3.0A

Current Selection:

Peak RMS SW5 SW6 SW7
0.9A 0.65A on on on
1.2A 0.86A on on off
1.5A 1.10A on off on
1.8A 1.28A on off off
2.1A 1.50A off on on
2.4A 1.72A off on off
2.7A 1.93A off off on
3.0A 2.14A off off off

Microstep Selection:

Pulse/Rev SW1 SW2 SW3
200 off off off
400 on off off
800 off on off
1600 on on off
3200 off off on
6400 on off on
12800 off on on

Driver Functions Descriptions:

Driver Function Operating Instructions
Output Current Setting Users can set the driver ouput current by SW5-SW7 three switches. The setting of the specific output current, please refer to the instructions of the driver panel figure.
Microstep setting Users can set the driver Microstep by the SW1-SW3 three switches. The setting of the specific Microstep Subdivision, Please refer to the instructions of the driver panel figure. SW4 and SW8 is vacancy, they do not need to be adjusted.
Signal Interfaces PUL is the setting pulse input, DIR is the stepper motor direction input, OPTO is the power supply for signal port+5V, ENA is the motor free input.
Motor Interfaces A+ and A- are connected to a phase winding of the motor; B+ and B- are connected to another phase winding of the motor. If you need to backward, one of the phase windings can be reversed.
Power Interfaces It uses DC power supply. Recommended operating voltage is 18VDC-40VDC, and power consumption should be greater than 100W

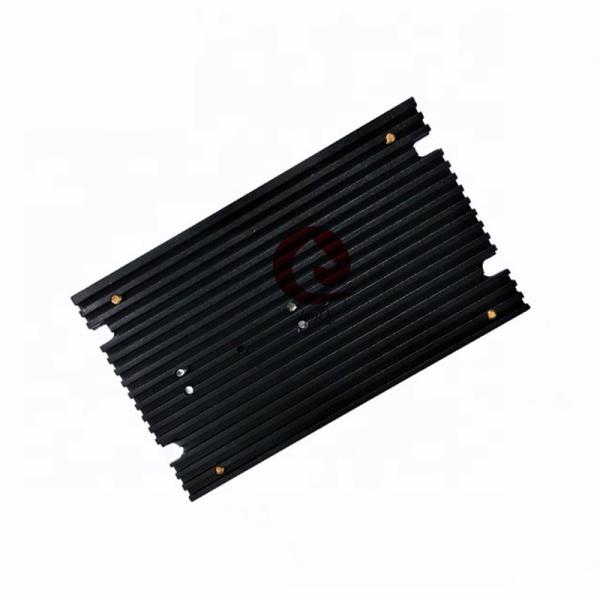

Installation Instructions Driver dimensions:117*71*35mm, Please refer to dimensions diagram. Please leave 10cm spce for heat dissipation. During installation, It should be close to the metal cabinet for heat dissipation.

Signal Interface Details:

The internal interface circuits of the driver are isolated by the opt coupler signals,

R in the figure is an external current limiting resistor. The Connection is differential.

And it has a good anti-jamming performance.

18VDC 24VDC M430D Stepper Driver18VDC 24VDC M430D Stepper Driver

Control Signal and external interface.

Signal amplitudes External current limiting resistor R
5V Without R
12V 680Ω
24V 1.8kΩ

Mechanical Dimension(mm):

18VDC 24VDC M430D Stepper Driver

Application:

It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It alsways performs well when it is used in quipment which requires for low-vibration, low-noise, high-precision and high-velocity.

Packing:

Cardboard boxes plus foam packaging. We can also pack the goods according to customer's requirements.

18VDC 24VDC M430D Stepper Driver

Certificate:

18VDC 24VDC M430D Stepper Driver

Transportation:

At present, our company supports a variety of modes of transport, or according to customer's needs to choose the mode of transportation.

18VDC 24VDC M430D Stepper Driver

FAQ:

1.Q: Can I get some samples first?

A: Sure, we are honored to offer you samples for your check.

2.Q: Do you have the products in stock?

A: Our products are manufactured according to your order except the normal products.

3.Q: What's the delivery time?

A: It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed
