JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
Specifications
Rated Voltage :
24VDC
Model :
JP400-24V-25m
Rated Head :
25m
Weight :
2.8kg
Rated Power :
450W
Medium :
Coolant liquid
Product Name :
BLDC WATER PUMP
Brand Name :
Junqi
Model Number :
JP400-24V-25m
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
2pcs
Price :
USD180-USD200
Payment Terms :
T/T,PAYPAL
Supply Ability :
1000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Rated Flow :
3000L/H
Description
JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System


Pump Features:

The electronic water pump mainly consists of several parts, such as pump cover, impeller rotor assembly, stator bushing component, casing stator component, motor driving plate and heat sink back cover, which are compact in structure and light in weight. Its working principle is that the impeller and rotor assembly are integrated, the rotor and stator are separated by shielding sleeve, and the heat generated by the rotor in the medium can be exported through the cooling medium. So, its high working environment adaptability, can adapt to -40 ℃ ~ 100 ℃ environment temperature. The pump is of high strength and abrasion resistant material with a service life of more than 20000 hours.


The Pump Main Technical Data:

  1. Rated voltage: DC24V
  2. Working voltage range: DC18-32V
  3. IP Level: IP68
  4. Working current: less than 20A
  5. Rated Flow rate: 3000L/H
  6. Rated Head: 25m
  7. Rated Power: 450W
  8. Weight: 2.8kg

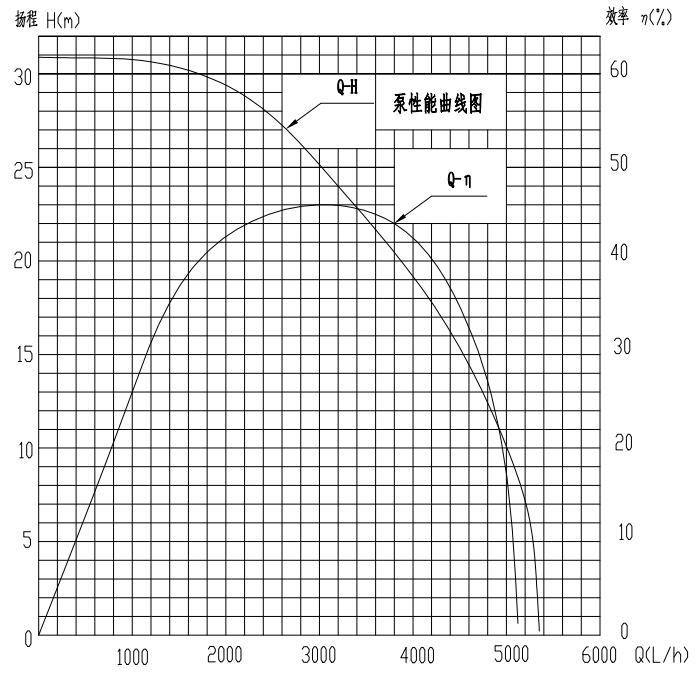

H-Q Performance Curve:

JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System

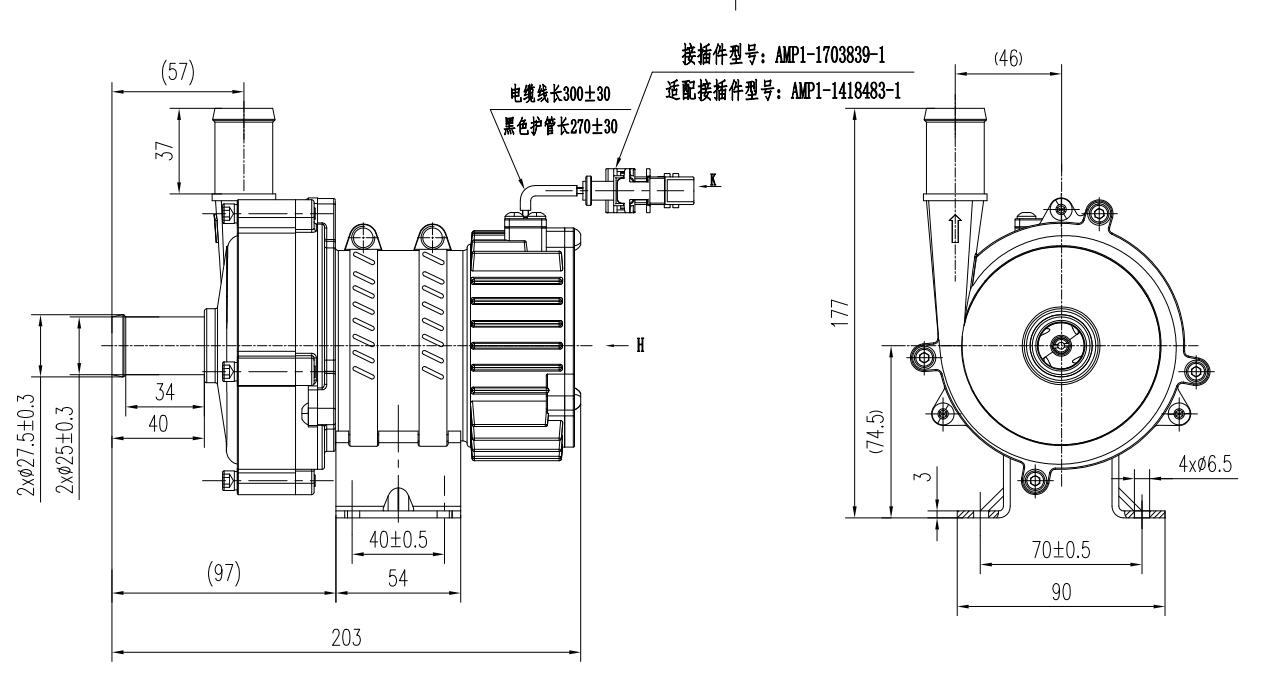

Dimensions of the pump:

JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System

Applications:

Battery energy storage cooling; Fuel cell cooling; Industrial cooling system; immersion cooling, Communication base station cooling; Supercomputer cooling; Battery thermal manage system cooling, IT fluid cooling solutions, Data center cooling system......

JUNQI 24V High-Efficiency Brushless DC Water Pump 3000LPH 25m Head For Commercial Vehicles and Heavy Trucks Cooling System
