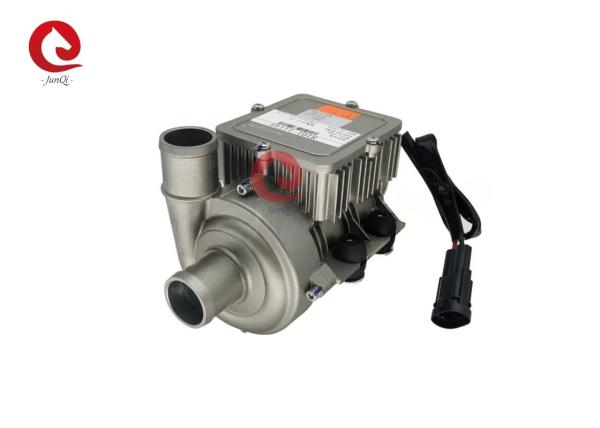

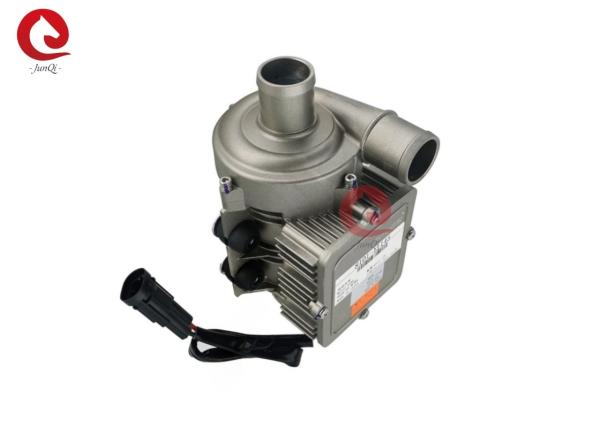

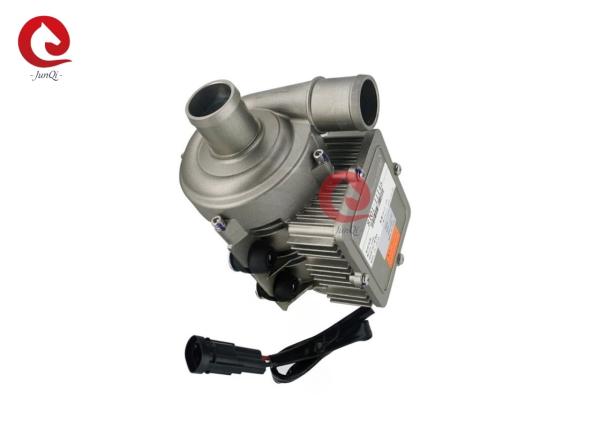

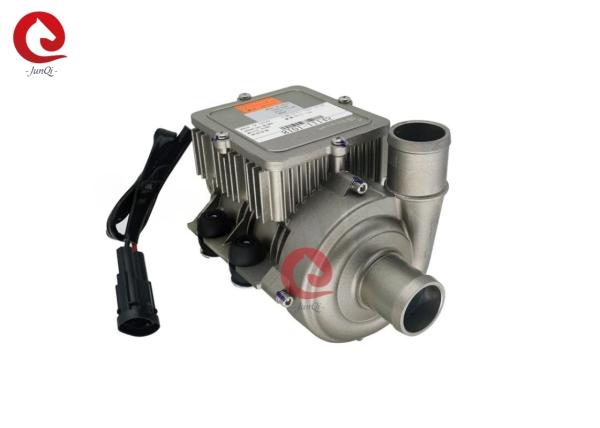

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System
Specifications
Brand Name :
Junqi
Model Number :
JP1000-24V-13m
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
1pcs
Price :
USD500-usd600/pc (Negotiable)
Payment Terms :
T/T,PAYPAL
Supply Ability :
1000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
BLDC WATER PUMP
Model :
JP1000-24V-13m
Voltage :
24VDC
Working voltage :
18~32VDC
Rated Flow rate :
10800L/h
Rated Head :
13m
Medium :
50% glycol aquesous lolution
outlet/ inlet size :
38mm
Description
24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System



Features:


♦ Highly integrated shield pump,hihg reliability, mainteanance-free, soft satart protection, low starting current;

♦ High efficiency: hydraulic+motor+controller;

♦ With anti-reverse connection, over current, over voltage, under voltage, over temperature, blocking rotot protection;

♦ Full range adjustable speed ( support fixed speed customization);

♦ BLDC-PMSM+Non-inductive FOC, lightweight, low noise;

♦ Industry-leading ECU gauge devices, a variety of communication methods of ECU platform design;

♦ To meet the needs of intelligent vehicle connection: CAN communication, non-sensing temperature measurement.


Technical Parameters:


JP1000-24V-13m
Rated Voltage Working Voltage Portection Level Ambient Temperature Medium Rated Current Noise Rated Parameters Working life Weight
DC24V DC18~32V IP67 -40~85℃ Coolant liquid 31.3A ≤70dB JP1000-24V ≥20000h 4.2kg
Q=10800L/h, H=13m
750W


H-Q performance curve:

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System

PWM control chart:

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System

Dimensions(mm):

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System

Workshop pictures:

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System

Certificates:

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System

Applications:

Eelectric Car, Electric Bus, Electric Truck, Fuel Cell cooling, Commerical Vehicle Battery,Thermal Management Liquid Cooling Systme, Battery Energy Storage cooling, Data Center, Immeersion cooling, Turbocharger intercooler cooling pump, Supercomputer cooling, Electricized engineering vehicles, Fluid cooling solutions......

24V 750W 10800L/h 13m Lift EWP JP1000-24V-13m Brushless DC Water Pump for Commerical Vehicle Battery Cooling System

FAQ:

Q: How long is your delivery time?

A: Sample order is 7~10 days.

Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.

Q: How long is your warranty of pump?

A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.

Q: What’s the payment method?

A: Paypal,T/T,

Q: What certificates have your pumps passed?

A: All our products have passed CE, RoHS, Reach.

Parts of pumps met UL.

Q: What certificates have your company passed?

A: Our company has passed IATF16949, ISO9001,


If you want to get more information about products, please feel free contact with us via ivanzhu@junqitrading.com
