Specifications
Brand Name :
Junqi
Model Number :
JQ45BLW27-24V
Certification :
CE,ROHS, UL
Place of Origin :
China
MOQ :
5pcs
Price :
USD58-usd73.5 /pc (Negotiable)
Payment Terms :
T/T,PAYPAL
Supply Ability :
1000PCS/Month
Delivery Time :
as confirmed
Packaging Details :
suite for export
Product Name :
Brushless DC Motor
Commutation :
Brushless
Model :
JQ45BLW27-24V
Rated Voltage :
24VDC
Rated Speed :
4840rpm
Rated Current :
3.26A
Rated Torque :
130mN.m
Weight :
150g
Description

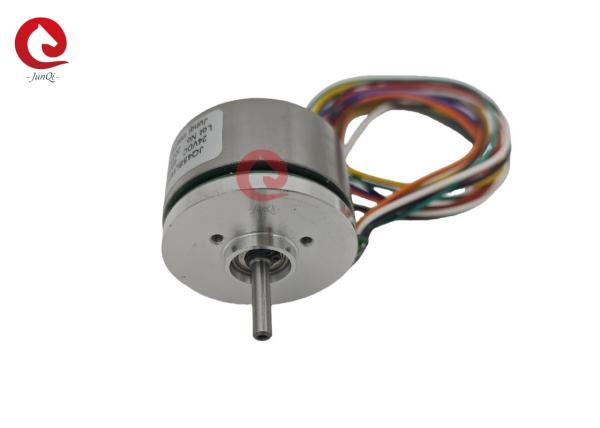

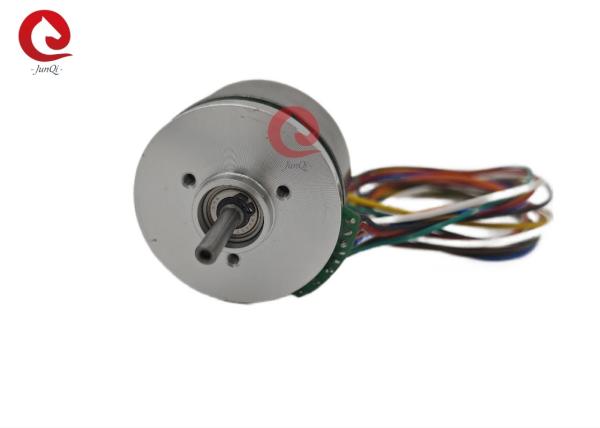

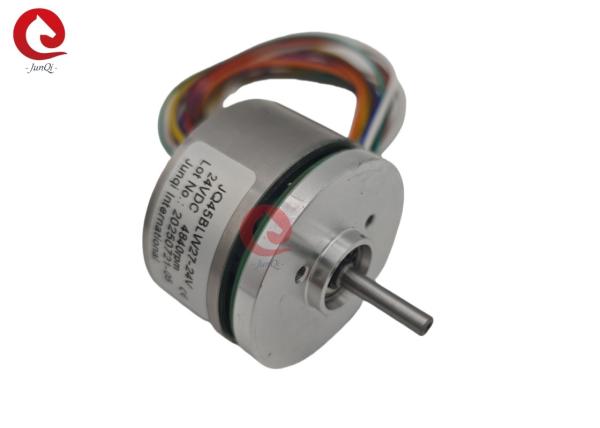

JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor


Feature Summary:


1. Wide range of speed control and smooth torque output.

2. Excellent speed stability.

3. Small size, high power.

4. High efficiency, low temperature rise.


Technical Parameters:


Item JQ45BLW27-24V
Rated voltage 24VDC
Rated Torque 130mN.m
No load speed 6100±10% rpm
No load current ＜0.5A
Rated Speed 4840rpm
Rated Current 3.26A
Peak Current 9.5A
Peak Torque 390mN.m
Back EMF 2.75Vrms/kRPM
Number of Phase 3
Number of Poles 16
Line to Line Resistance 0.56±10% ohms@20℃
Line to Line Inductance 0.27±20% mH@1kHz
Totor Inertia 181g.cm²
Weight 150g



We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....
