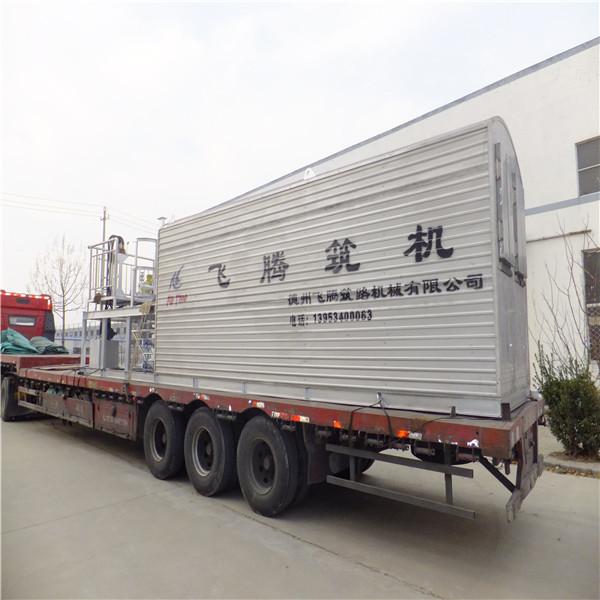

Outside Thermal Oil Boiler Heating Corrosive Materials Melting Plant With Drum Hydraulic Push Arm

Description

The FT series melting equipment is specifically designed for melting corrosive materials, such as DMF rectification residue and various hazardous wastes.

The thermal oil (or steam) is as the heating medium, which is heated by a thermal oil boiler (or a steam furnace), and the barrel material is heated and melted into a liquid state through the thermal oil coils inside the equipment.

This equipment is suitable for melting various corrosive materials with similar properties to asphalt, packed in the drum.

The part equipment which contact materials directly is made of 304 stainless steel material, which is suitable for melting various corrosive material.

Melting plant components

The equipment mainly consists of melting tank, lifting system, tipping devices, drum plate, dripping liquid collect system, hydraulic propulsion system, thermal oil heating system, liquid pump, pipe system, and electric control system.

Working principle

The equipment adopts automatic spring door sealed box structure. The drum is lifted by electrical hoisting. The hydraulic propeller pushes drum plate into the melter, and using the hot thermal oil from external boiler as the heating source.

Continuous production one full drum in and one empty drum out from the other end.

Features

1. Drum lifting

Lift the barrel by hoist, move the barrel transversely and put it on the turnover device with opening up. No dripping, no pollution.

2. Drum turnover device

In the previous time, after opening the barrel, we need to turn over the barrel by manual and liquid dripping results in waste and pollution when move the barrel with opening down to the sling way.

But our machine adopt the barrel turnover technology invented by ourselves, the machine drastically reduces the labor intensity and avoids dripping during transferring.

3. Collecting disk

After the barrel turned over by the turnover device, a few of liquid dripping from the barrel will be collected by the bottom disk and spilled into the melting tank automatically through a small hole.

4. Barrel plate

The hydraulic pusher does NOT push the barrel directly, but push the barrel plate with square shape, avoiding big resistance, unsatisfactory progress and deformation of barrel and rail.

Our advantages

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,

1. Independent design and professional manufacturer.

2. Production capacity over 200 sets per year.

3. All equipments with compact structure, suitable for container load.

4. Select premium steel with high quality.

5. Complete production control with detailed record and video.

6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.

7. We manufacture our standard equipment, also welcome OEM and ODM.

Our service

Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,

1. Design drawing as your requirement

2. Equipment solution as your real condition

3. Quality equipment as your order

4. Quick response as your time

5. Fast delivery as your demand

6. Complete warranty as your expect

Quality product, quick response and cost saving.

Delivery and shipping

1. Production time around 5-15 days per set

2. Suitable for 40 HQ container loading

3. Trade terms EXW, FOB, CFR, CIF

After sale service

1. Warranty one year

2. Online support service and video technical support

3. Free spare parts

4. Field installation, commissioning and training, field maintenance
