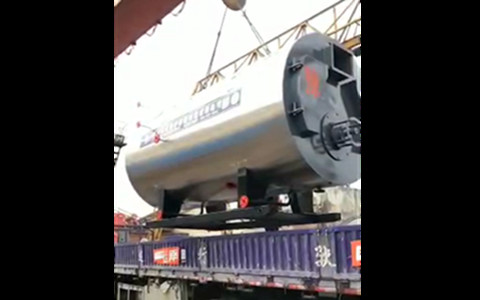

2 Ton Oil Fired Steam Boiler
2 Ton Oil Fired Steam Boiler
2 Ton Oil Fired Steam Boiler
2 Ton Oil Fired Steam Boiler
Specifications
Brand Name :
Yuji
Model Number :
WNS
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
one set two week
Delivery Time :
7-15 working day
Packaging Details :
wooden case packing
Product Name :
WNS Series 2 Tons Oil Diesel Fired industrial Steam Boiler
Color :
Customized
Structure :
water tube
Pressure :
high pressure
Style :
Natural Circulation
Design Fuel :
gas oil
Capacity :
1-20 ton
Temperature :
184/193
Description

WNS Series 2 Tons Oil Diesel Fired industrial Steam Boiler​

Brief Introduction of Boiler Operating Conditions
The engine can be operated under 80% in 100% operating mode. Under 100 barrels, refrigeration systems include: 20 ° C water heater, 1.25 MPa working pressure, 10 pounds can be produced in an hour, and the heat is 193.4 ° C. The average body temperature was 98.96, the average body temperature was 48.93 ° C, and the use of the tea was 754.78 Nm3 / h (dose used once a day ). The natural gas content is very low (> 36.36 MJ / NM3).


Product Features
1. Reasonable design
2. High efficiency and energy saving
3. Manufacturing specifications
4. Large steam space

2 Ton Oil Fired Steam Boiler

Technical Parameters

Main Technical parameters of WNS Series Steam Boiler
Item Unit WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS10 WNS15 WNS20
Steam Capacity t/h 0.5 1 2 3 4 6 10 15 20
Working Pressure MPa 1.0 1.25 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Steam Temperature ℃ 184 193 193 193 193 193 193 193 193
Feed Water Temperature ℃ 20 20 20 20 20 20 104 104 104
Thermal Efficiency / ≥96%
Fuel / Natural gas, liquefied gas, city gas, light oil
Fuel Consumption Natural gas NM3/h 37 73 145 217 289 435 735 1101 1467
Liquefied gas Kg/h 30 58 117 174.5 232 351 589 871 1151
City gas NM3/h 79 157 309 462 615 943 1575 2357 3147
Light oil Kg/h 32 61 121 182 243 367 601 906 1211
Gas Feed pressure Natural Gas mbar 70-100 100-150 100-150 150-200 150-200 150-200 150-200 150-300 150-300
City Gas mbar 100-200 100-200 100-200 150-200 150-200 150-200 150-200 150-300 150-300
Running water volume M3 0.78 3.3 3.6 5.2 6 9 11.6 24.5 29

Note: the fuel consumption in the table is based on light oil low calorific value 42915KJ/Kg (10260Kcal/Kg), natural gas low calorific value 35588KJ/NM3 (8500Kcal/NM3) and liquefied gas low calorific value 45998KJ/Kg (11000Kcal/Kg). Calculation of low calorific value (16750KJ/NM3 (4000Kcal/NM3) of urban gas.

Shape and Interface Dimensions of WNS Biomass Steam boilers
Item Unit WNS0.5 WNS1 WNS2 WNS3
Transport Dimension (L*W*H) / mm 2949*1454*1707 3198*1880*2166 4131*2247*2422 4485*2010*2402
Mainframe transport weight / t 2.8 4.9 8 9
Main Steam Valve Pipe Diameter DN mm 40 65 80 100
Feed Water Valve DN mm 25 40 40 40
Safety Valve Diameter DN mm 40 2*40 2*40 2*50
Drain Valve Pipe Diameter DN mm 40 40 2*40 2*40
Chimney Diameter φ mm 250 280 300 400

Remarks: We will reserve rights to change the above mentioned data due to continuous policy transformation and product improvement.
