Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Plastic coil forming and binding machine PS420 used for notebook with differ thickness
Specifications
Brand Name :
Creative
Model Number :
PS420
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per months
Delivery Time :
30 days
Packaging Details :
wooden box
Functions :
Plastic Coil Forming And Plastic Coil Binder
Book Min Size :
Min 72mm X 72mm
Book Max Size :
Max 420mm X 300 mm
Book Thickness :
Up To 25mm
Power :
3ph 380V ,8KW
Speed :
Up To 700 Books / Hour
Description

Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm

Plastic coil forming and binding machine PS420 used for notebook with differ thickness

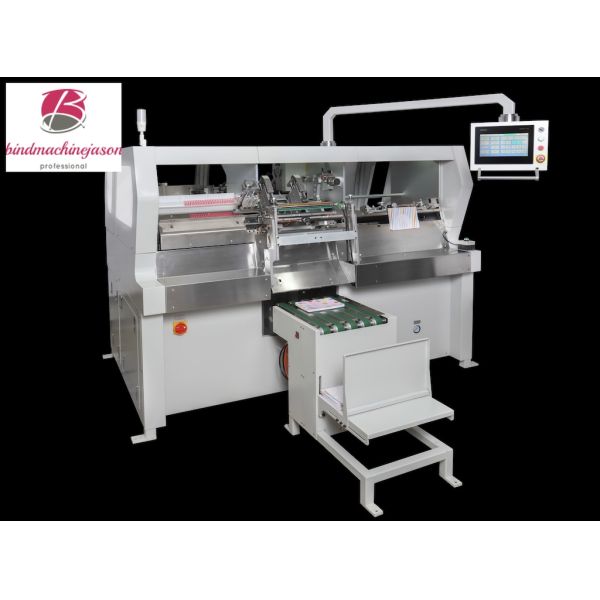

PS420 plastic coil forming and binding machine is a perfect machine used for printing factory to do many differ size and differ thickness book which need be used for plastic coil binding. Machine developed by our partner company (NINGBO CREATIVE AUTOMATIC CO.,LTD )

Application :

Plastic coil forming and binding machine PS420 used for notebook with differ thicknessPlastic coil forming and binding machine PS420 used for notebook with differ thickness

Machine can do differ book size from min A7 book to max size A3 size book ,also for differ book thickness which more than 20mm . But this machine request you punch the hole first ,so if purchased this machine ,also need a punching machine to do hole perforate .

Technical data:

speed Up to 700 books per hour
Air pressure 5-8 kgf

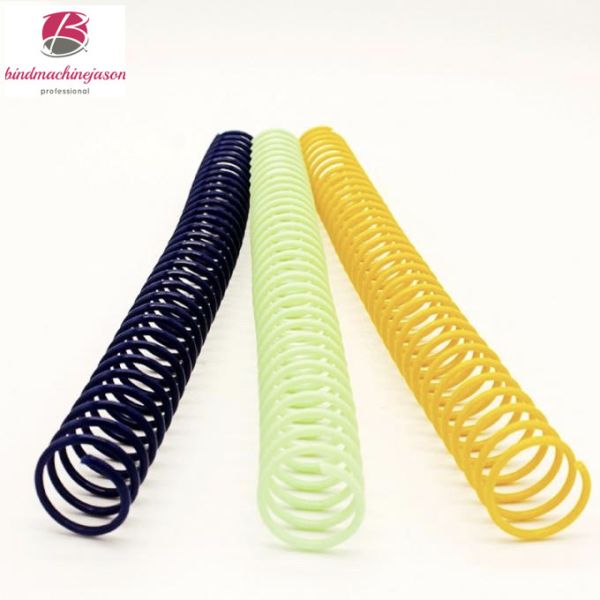

Plastic coil diameter ranger Min 8 and max 28mm (currently 2025 year dec
Hole pitch suggested

standard configuration

Thin book 6.35 (4:1 pitch )

Thicker book 8.47 (3:1 pitch )

other pitch Other pitch can be customized
Max size of paper Binding side 420mm x 300 mm
Min size of paper Binding side 72mm x 72mm
Max book thickness 23mm-24mm (currently )
Electric power 3ph 380V ,8KW

Why Is Plastic Coil Book Printing the Best Choice?

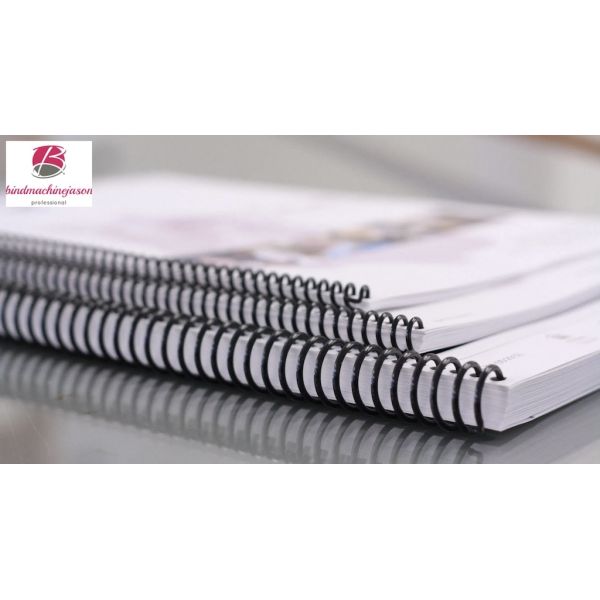

A book that is made with a Plastic Coil book binding will have a similar look to a book made with Wire-O binding, but it will have a few distinct advantages over books bound with wire.

1. Books made with Plastic Coil have a highly flexible appearance. Coils can be made in a variety of colors and sizes making them perfect for all kinds of uses.

2. Safe for little fingers and easy to manipulate, spiral books are good for all ages to use.

Some of the most common uses for plastic coil book printing are:

  • Calendars
  • Catalogs
  • Cookbooks
  • Directories
  • Educational Materials
  • Journals or Diaries
  • Marketing and Promotions
  • Planners
  • Religious Materials
  • Training Manuals
  • Workbooks
