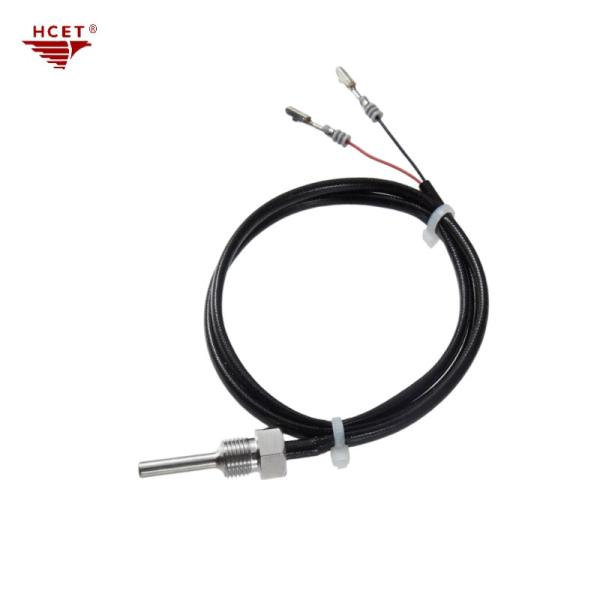

Threaded PT1000 Temperature Sensor SS316 PT1000 Temperature Probe
Threaded PT1000 Temperature Sensor SS316 PT1000 Temperature Probe
Threaded PT1000 Temperature Sensor SS316 PT1000 Temperature Probe
Threaded PT1000 Temperature Sensor SS316 PT1000 Temperature Probe
Specifications
Brand Name :
HCET
Model Number :
PT1000
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
1000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
200 pcs per carton
Product name :
PT1000 temperature sensor
Temperature range :
-50℃~200℃
Response Time :
0~6s
wire :
customizable
Application :
Industrial Piping & Compressors
Description
Threaded PT1000 Temperature Sensor
Stainless Steel 316 pressure resistant probes designed for industrial piping, compressors, and HVAC systems.
Product Specifications
Product Name PT1000 Temperature Sensor
Temperature Range -50℃ to 200℃
Response Time 0-6 seconds
Wire Configuration Customizable
Primary Application Industrial Piping & Compressors
Product Overview
Designed for industrial piping, mechanical equipment and HVAC systems, these threaded PT1000 temperature sensors feature stainless steel 316 threaded interfaces with high-temperature ceramic insulating cores. Supporting M6 to M20 metric thread size customization, they offer excellent protection, oil and corrosion resistance, and can be screwed directly into threaded holes to ensure sealing and stability in high-temperature, high-pressure environments. Compatible with 4-wire connections to reduce wire error.
Key Features
  • Industrial thread interface: M8/M12/M20 and customizable thread sizes with quick screw-in installation and 20Bar pressure resistance
  • Anti-vibration sealing design: stainless steel 316 threads with silicone seals for leak prevention and anti-loosening, suitable for pumps, valves, compressors and vibration applications
  • Wide temperature range adaptability: high-temperature oxidation resistance ideal for boilers and heat exchangers monitoring
  • High precision PT1000 components: ±0.15°C accuracy (Class B) with long-term stability better than 1%
  • Compatibility: standard 4-wire wiring with optional PTFE high-temperature cable
Electrical Characteristics
  • Control temperature range: -50℃ to 200℃ (customizable temperatures available)
  • Response time: 0-6 seconds (measured at water flow rate of 0.2m/sec with 4mm protective tube)
  • Wiring options: 2-wire, 3-wire, or 4-wire configurations with various lengths and single/multiple cores available on request
Dimension Specifications
Threaded PT1000 Temperature Sensor SS316 PT1000 Temperature Probe
Application Examples
Threaded PT1000 Temperature Sensor SS316 PT1000 Temperature Probe
