380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
Specifications
Brand Name :
HCET
Model Number :
HC25
Certification :
ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
2000 pcs per carton
Product name :
HC25 thermal cutoff switch
Material :
metal case
Temperature range :
70℃~160C
Tolerance :
±5℃,±8℃
Voltage :
250V
Current :
16-40A
Application :
Transformers
Description
Bimetal Thermal Cutoff KSD9700 Thermostat Switch Protector 380V
Product Specifications
Attribute Value
Product name HC25 thermal cutoff switch
Material Metal case
Temperature range 70℃~160℃
Tolerance ±5℃,±8℃
Voltage 250V
Current 16-40A
Application Transformers
Product Description

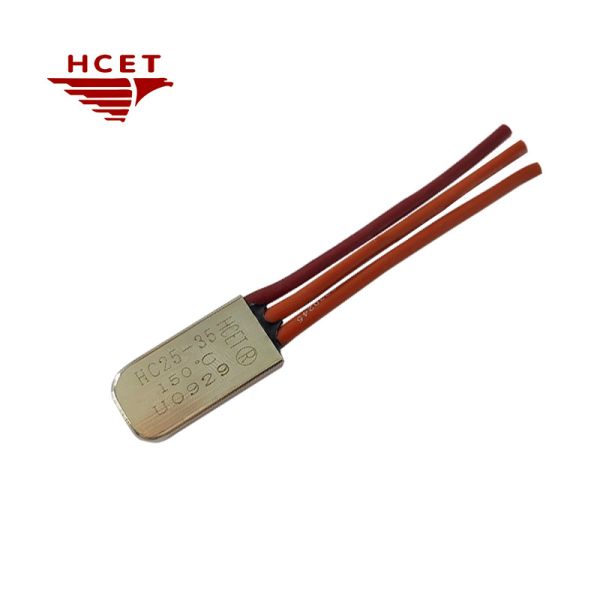

HCET HC25 KSD9700 Three-Phase High Current Thermal Protector (380V 16A/25A/35A) Motor Protection Switch for Transformers

The HC25 series high-current temperature control switch adopts a pure temperature design to ensure an internal low-resistance circuit, and is suitable for large-current circuits such as high-power motors, water pumps, and transformers.

Key Features
  • Military-Grade Epoxy Encapsulation
    Vacuum-sealed construction resists dust, moisture and mechanical stress (IP67 equivalent protection)
  • Ultra-Low Contact Resistance (＜50mΩ)
    Minimizes energy loss in high-current applications like CNC machines & power transformers
  • Precision Temperature Calibration
    ±5℃ tolerance with 70-160℃ range options, ideal for HVAC compressors and industrial pump motors
  • Anti-Arc Copper Alloy Contacts
    Withstands 10,000+ switching cycles at 380V/35A for mining equipment and heavy machinery
Electrical Characteristics
70℃~160℃
Temperature Range (Customizable temperature, please contact us.)
±5℃, ±8℃
Temperature Tolerance
250V AC 50HZ/60HZ
16A,25A,35A Electrical Specifications
Dimensions
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
Product Details
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
Applications
380V High Temperature Cutoff Switch KSD9700 Thermostat Switch Protector
