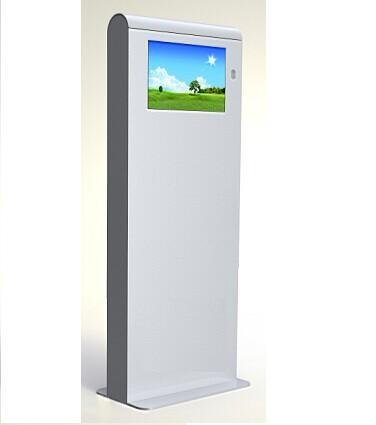

Multi-touch Outdoor Digital Signage Nanotechnology Touch Screen
Specification:
| 1 | Play System | PC | I3 PC |
| 2 | Monitor | 22" | Industrial Special LCD Monitor |
| LED back brightless 1000cd/m2 | |||
| Resolution: 1680x1050 | |||
| Industrial Power supply, Auto light adjustment | |||
| 3 | Touch Screen | 22" | Nanotechnology Touch Screen |
| 4 | Glass | Antireflective Glass 3mm, Light Transmittance 97%, Reflectivity<3% Doubling | |
| 5 | Power Control System | Main Power Control, Segment timing Controlling | |
| 6 | Kiosk Casing | Cabinet | Adopted standard cold rolled steel 1.5mm. Ergonomically sleek and smart design, all steel body surface is imported DuPont metal paint, Moistureproof, Antirust, Anti-acid, Water and Dust at IP55, Powder Coating, Outdoor Anticorrosive more than 7 years |
| 7 | Heat Radiation System | Adopt intelligence Direct air cooling system, can be suitable -20—+45 degree working Environment, No black-oxide for LCD panel under the sunshine, Patent Technology for Air Cooling | |
| 8 | Testing | Water-pro Testing, High&Low Temperature Aging, Sunshine Testing |
