Specifications
Brand Name :
mled
Model Number :
p5
Certification :
CE, RoHS, UL, CCC, ETL
Place of Origin :
ShenZhen,china
MOQ :
1pc
Price :
9-12usd/pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000pc per month
Delivery Time :
1-5days
Packaging Details :
Veneer case / Flight case/ carton box
NAME :
Constant Drive LED Advertising Billboard
Model No. :
Pixel Pitch 5mm
Pixel Configuration :
1R,1G,1B
Pixel Density :
10,000 dots / m²
Display Function :
Video Display, Image & Text Display, Text Display, Market Display
Power Supply :
MW
HS Code :
8528591090
IP Rating :
IP43
Origin :
china
Description

P5 Outdoor Panel 25W AC 220V 640x640mm Constant Drive LED Advertising Billboard

TECHNICAL PARAMETERS

Unit Module Item Parameter
Model Number P5-16S
Module size 320mm*160mm
Pixel pitch 5mm
Pixels Density 40000dots /m2
Pixel configuration 1R1G1B
Package mode SMD 3528 or 2121
Pixel resolution 64dots(W)*32dots(H)
Max Power 23W
Module thickness 12-14mm
Weight 0.4kg
Drive type Constant drive
Scan mode 1/16scan
Port type hub75
Brightness of white balance ≥1500cd/m2

LED

Cabinet

 Dimension 640mm*640mm or 960X960mm
Monomer Module Number 4
Power supply 5V/60A*1 pcs
Thermal discharge anto
Pixel per cabinet 128*128dots
Best viewing distance 6M～40M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃～+85℃

working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 80mm

Power Working voltage AC220V±10%
Average Power consumption 200W/㎡
Max.Power consumption

≤500W/PC
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768

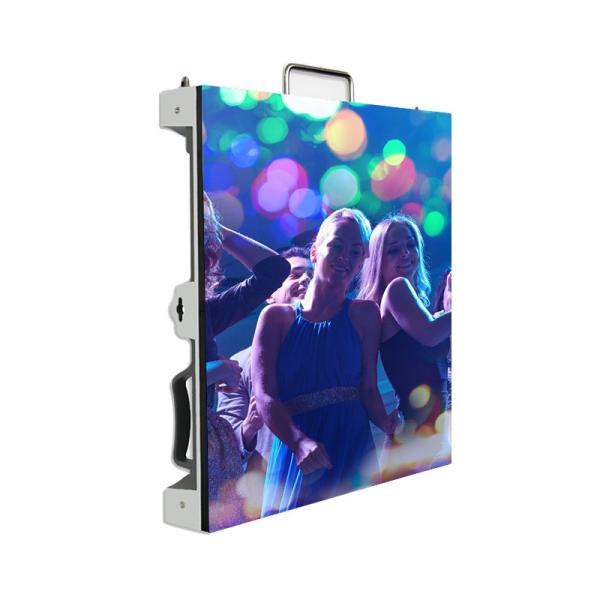

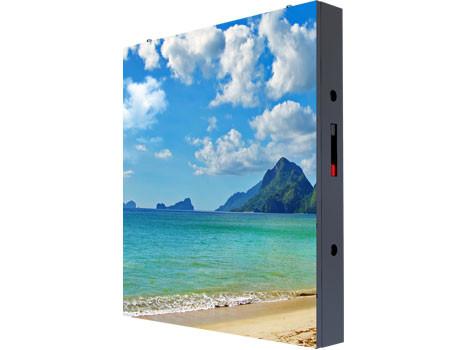

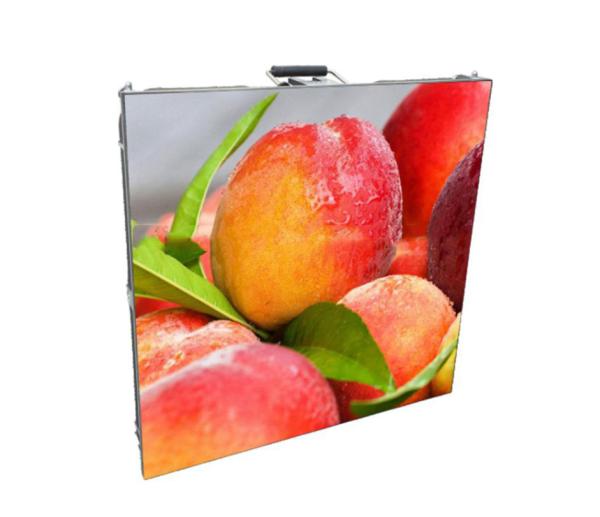

PRODUCT PICTURE

P5 Outdoor Panel 25W AC 220V 160x160mm Constant Drive LED Advertising Billboard

PACKING &SHIPPING

P5 Outdoor Panel 25W AC 220V 160x160mm Constant Drive LED Advertising Billboard

P5 Outdoor Panel 25W AC 220V 160x160mm Constant Drive LED Advertising Billboard

Packing :wooden case &flight case

About Us

Melton is a professional manufacturer of Led Module/ Indoor Outdoor LED Display//Rental Stage Led Display/Led Strip Display/Taxi
Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen.
Our Company: Melton covers 2000square meters with super clean, antistatic workshop, the most advanced equipment, patching,
soldering tin, gluing, aging and testing, have own patented technology.

Our products: are CE approved, RoHS compliant, C-TICK and FCC certificated.
