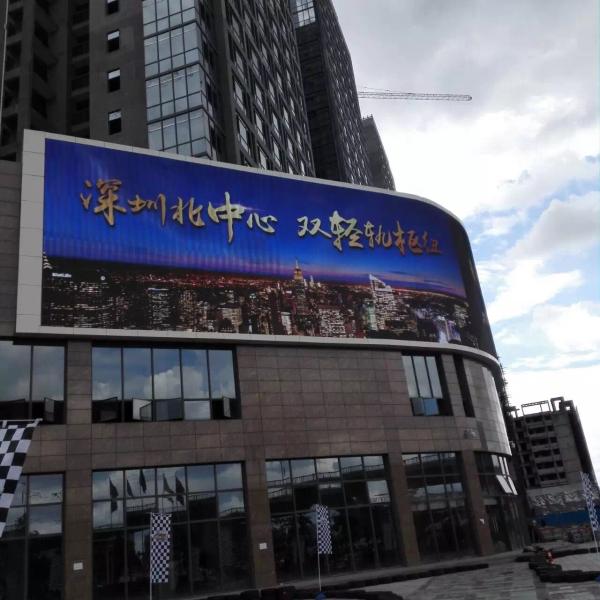

Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Specifications
Brand Name :
Meltonled
Model Number :
P16-35
Certification :
CE, RoHS, ISO,FCC,UL
Place of Origin :
Shenzhen, China
MOQ :
1pc/1sqm
Price :
650usd/m2
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
>500sqm/month
Delivery Time :
8-25 days
Packaging Details :
Anti-shaking wooden case/flight case/carton
Delivery term :
Ex-work/FOB/CIF/DDU
Product Name :
Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16
Tube Chip Color :
Full Color
Pixel Pitch :
16mm
Pixel Configeration :
1R,1G,1B
Pixel Density :
3906 dot / m2
Resolution(W*H) :
16dots*8dots
Brightness :
>6500cd
Description

Outdoor full color fixed install LED display/ screen / billboard P6, P8, P10, P12, P16


Specifications for outdoor led display:

SpecificationPH8PH10PH12PH16PH20PH25
Pixel Configuration1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B2R1G1B
Density of pixel1/4 scan1/4 scan1/4 scanStatic StaticStatic
Module Resolution32*16(W*H)16*16(W*H)16*16(W*H)16*8(W*H)16*8(W*H)8*8(W*H)
Pixel density15625100006400390625001600
Pixel Pitch8mm10mm12mm16mm20mm25mm
Best Viewing Distance6~12m8~15m10~20m12~24mm16~30mm20~40m
Module Size(mm)320*160160*160192*192256*128320*160200*200
Cabinet Size(mm)960*960960*960960*9601024*768960*9601000*1000
Weight55Kg55Kg55Kg47Kg55Kg60Kg
Working VoltageAC220/110 ± 10%, 47~63Hz
Waterproof RateIP65
Maxim Power≤780W
Average Power≤450W
Viewing AngleHorizontal:≥ 120° Vertical:≥60°
Brightness≥8000 nits
Working Temperature-20ºC to +60ºC
Operating humidity20% to 90%
Lifespan (50% Brightness)

100,000 hours

Product Feature

  • Play clear and non-flickering video image in video camera to realize live broadcast of different kinds of programs.
  • Display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation and etc, have abundant display methods, display moving messages, notices and slogans and etc, and have large capacity to store data and information.
  • Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time and realize network control.
