Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Specifications
Type :
Inkjet Printer
Print Dimension :
90*60cm
Applicable Industries :
Building Material Shops, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company
Condition :
New
Plate Type :
Flatbed Printer
Place of Origin :
Anhui, China
Brand Name :
Big-color
Use :
Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, Cloths Printer
Automatic Grade :
Automatic
Color & Page :
Multicolor
Voltage :
220v/110v
Dimensions(L*W*H) :
2120*1500*1220mm
Weight :
380 KG
Warranty :
1 Year, 1 year
Ink Type :
uv ink
Key Selling Points :
Multi Color
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Board
After-sales Service Provided :
Video technical support
Product name :
UV Flatbed Printer
Print head :
tx800
Printing material :
Metal,ceramic,acrylic board,wood,leather and so on
Print speed :
6.5㎡/h
Operating system :
Window7/8/9
Printer width :
Max90*60cm
Printing type :
glass acrylic board wood board metal leather and so on
Certification :
CE,ROHS,MSDS
Packaging Details :
The normal package is stronger wooden box with metal structure inside(packaging size: 2300*1400*1500mm). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to cu
Port :
Shanghai port or as customer's requirement
Price :
$7,000.00/sets 1-9 sets
MOQ :
1 set
Description

Product Application

Big Color small size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.

Product Description
SPECIFICATIONS FOR ZT-9060
Product Name
9060 uv flatbed printer
Model
ZT9060
Printer head
1/2/3 tx800 heads(or 4720)
Speed
6.5m2/h(Production mode) / 5.5m2/h(Precision mode) / 4.5m2/h(High precision mode)
Print size
100mm*70mm (3.93in*2.75in / 0.32ft*0.22ft)
Maximum Resolution
720*4320 dpi
Ink
4 color +white +varnish
Printing Type
Glass ,Acylic board,Wood,Board,Metal,Leather and so on
Machine Dimension
2.12*1.5*1.22m
packing size
2.56*1.44*1.50M=5.53CBM
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Total 3 pcs UV water cooling lamp
* 2 pcs big power uv lamp for color +1 uv lamp for varnish to make sure enough power even by high speed
* Longer working life
Auto Height sensor
equipped with auto height , make the printing work simply when use different kinds of material
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Mug cup printing function
*Cup printing mould fix on machine back side, no need to assembly,.
*It can print not only bottle but also mug cup and so on.
Enhance body frame body
Steel structure frame body , stronger enough and not easy to transformation
More than 12 platform support to ensure the platform accuracy into 0.2mm
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Double Screw rob on y direction
Double screw bar connect on Y direction. make sure the move accuracy.
Carriage up and down on Z axis
Max printing height 8cm
Carriage lift type by Z axis, movement more stable than table lift mode or beam lift mode.
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

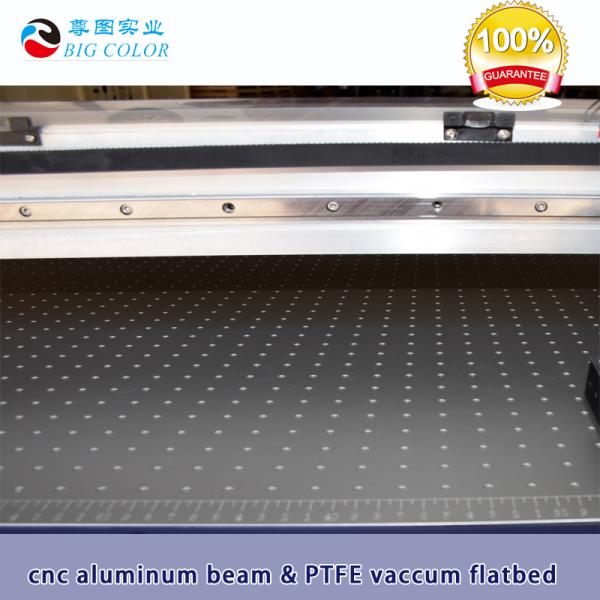

Hard oxidation PTFE vacuum platform
*Hard oxidation means scratch-resistant of the platform. you could use even knife to scratch the surface if have UV ink on it.
*PTFE Vacuum platform means the platform parallelism tolerance more less than 0.5mm in the whole area and then with suction fan inside.
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

Stainless steel auto up and down capping unit

Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

CNC aluminum carriage plate

Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

For service

1) we could support you import agent service if you don't know how to import goods to your country

2) When you got machine, we will teach you how to install machine step by step by teamview or any desk. also there are lots of instruction video to help you know better.

3) All machine with necessary parts and software and make sure you could use printer directly , no other extra payment.

Model No
Print head
Printing area
Max height
Speed
Color
A3-UV-single head
1 pcs Epson DX8
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A3-UV/DTG-double head
2 pcs Epson DX8
40*30cm
15cm
80sec/page
(A3)
CMYK+W+V
A3-DTG-single head
1 pcs Epson DX7
40*30cm
15cm
120sec/page
(A3)
CMYK+W
A2-UV/DTG-doube head
2 pcs Epson DX8
40*60cm
15cm
60sec/page
(A3)
CMYK+W+V
9060-dx8
3 pcs Epson DX8
100*70cm
8cm
4.5m²/h
CMYK+W+V
9060-4720
3 pcs Epson 4720
100*70cm
8cm
10m²/h
CMYK+W+V
1610-dx8
3 x Epson DX8
160*100cm
25cm
6.5m²/h
CMYK+W+V
1610-4720
3 x Epson 4720
160*100cm
25cm
12m²/h
CMYK+W+V
2513-dx8
3 pcs Epson DX8
250*130cm
8cm
6.5m²/h
CMYK+W+V
2513-4720
3 pcs Epson 4720
250*130cm
8cm
12m²/h
CMYK+W+V
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Blue color also available
If you want to other color, please kindly contact with us
Our Exhibition
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Our Factory
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Certifications
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Samples Display
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing



Wine bottle



Note book

Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing


Phone case


Mug or cup


Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Our Service
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Versatile A4 UV Printer for Glass Acrylic Board Wood Board Metal and Leather Printing
Size
2.56*1.44*1.50M=5.53CBM
Weight
0.38 T



Packaging
Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
