Specifications
Brand Name :
WISDONSHOW
Place of Origin :
Guangdong, China
MOQ :
1
Price :
CN¥21,314.84-25,259.46
Max input power :
6800
Voltage :
220V, 110V
Dimensions :
L600 X W640 X H850mm
Weight :
85kg
Total power :
max 6400w
PCB size :
max 410*380mm, min 10*10mm
Chip size :
max 70*70mm, min 1*1mm
Alignment system :
Optical lens +HD industrial camera
Mounting accuracy :
±0.01mm
PCB thickness :
0.3-5mm
Operation interface :
Touch-screen Board
Working modes :
5
Temperature precision :
±1°C
Material :
Metal
Welding mode :
Hot air, IR
Description

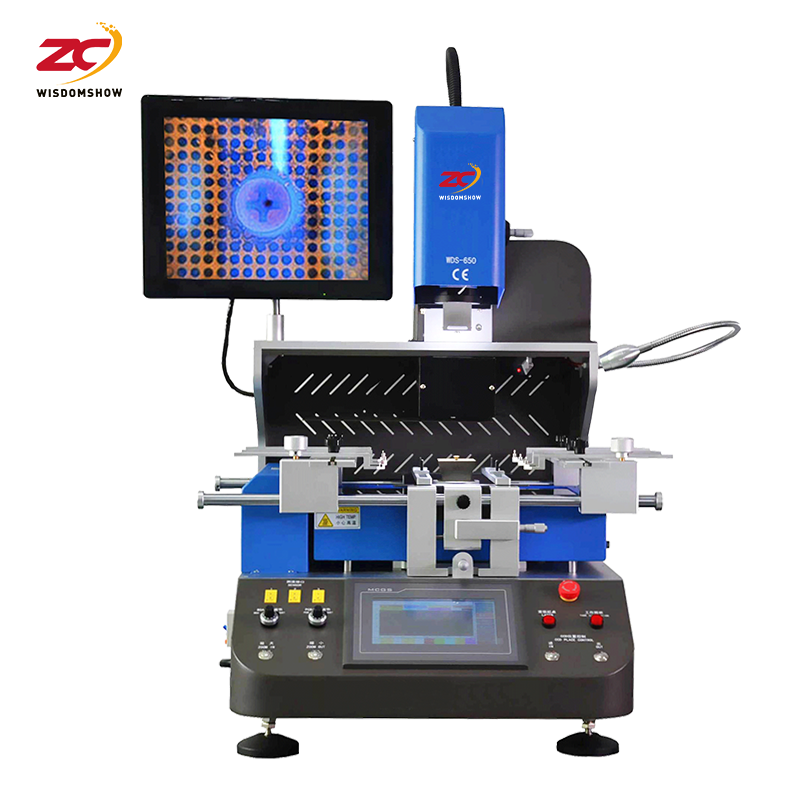

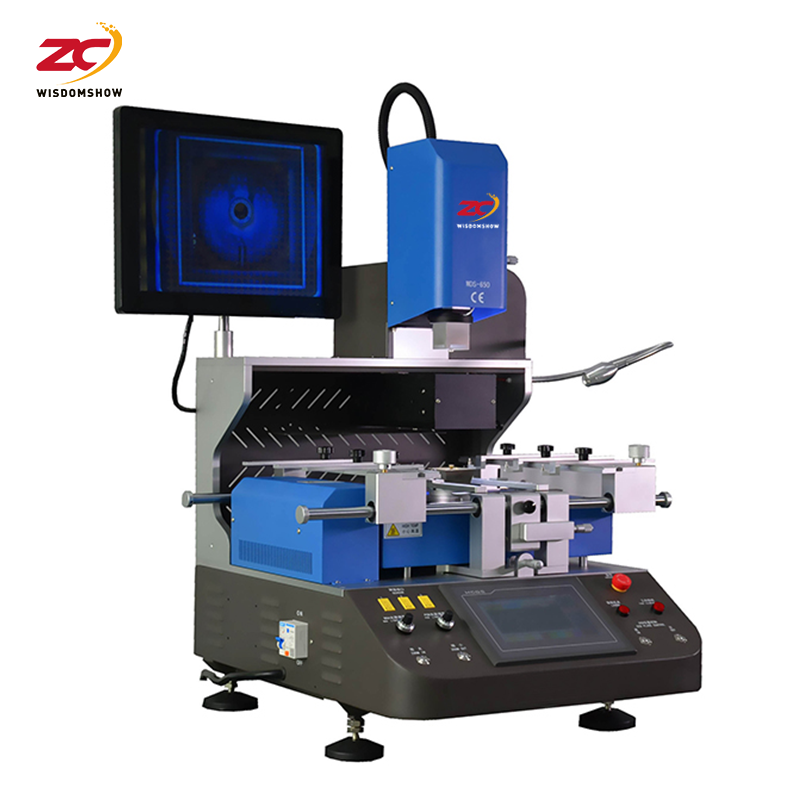

WDS-650 BGA Rework Station
The WDS-650 BGA Rework Station is a high-precision system designed for reworking and rebonding BGA, QFN, CSP, and other surface-mounted chips. It is widely used for replacing and repairing BGA chips on devices such as laptops, smartphones, gaming consoles, and industrial control boards.
This professional-grade equipment features independent triple-zone heating, HD optical alignment, and a smart touchscreen interface, ensuring precise placement and uniform soldering for both lead-free and traditional soldering tasks.
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair

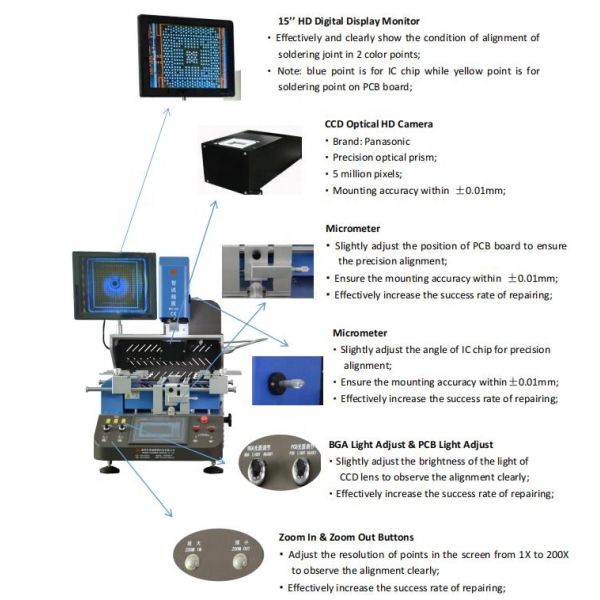

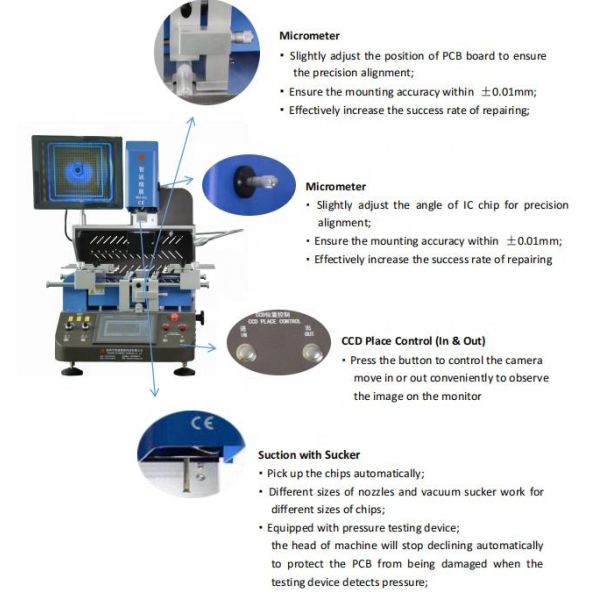

Operation System
  • Manual and precise operation mode for full control during rework
  • Capable of soldering, desoldering, picking, placing, and replacing various BGA chips

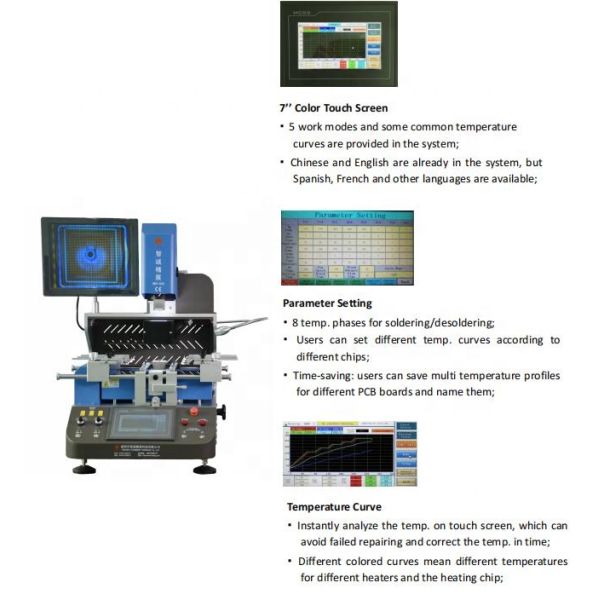

  • User-friendly interface with HD optical alignment and intuitive touchscreen
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair

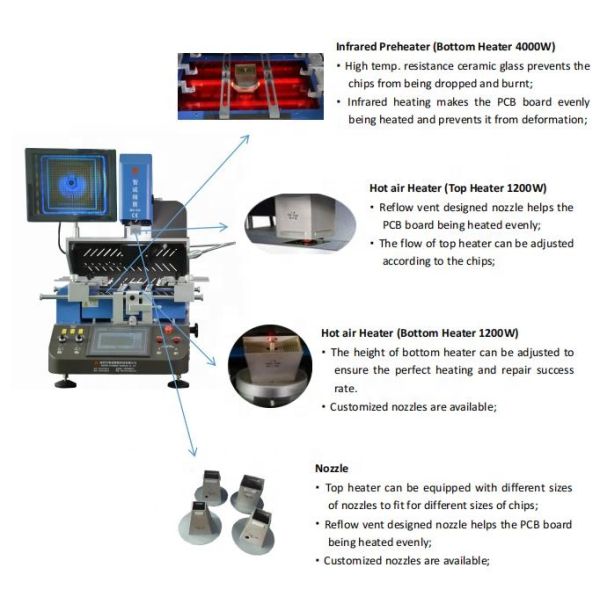

Temperature Control System
  • Supports 6-stage programmable temperature profiles for preheating, soaking, soldering, and cooling
  • ±1°C precision with independent closed-loop control
  • High-accuracy K-type thermocouples for consistent reflow results
  • External temperature sensors monitor and calibrate real-time soldering curves
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair
Safety Features
  • CE certified and compliant with international safety standards
  • Automatic power-off protection for abnormal operation
  • Dual over-temperature protection for stable performance
BGA Repair Process
How to Separate and Replace BGA Chips
  1. Desoldering: Use hot air to safely separate BGA chip with precise temperature control
  2. Pad Cleaning: Remove solder residue and thoroughly clean PCB pad area
  3. Reballing or Replacement: Reball original chip or install new BGA component

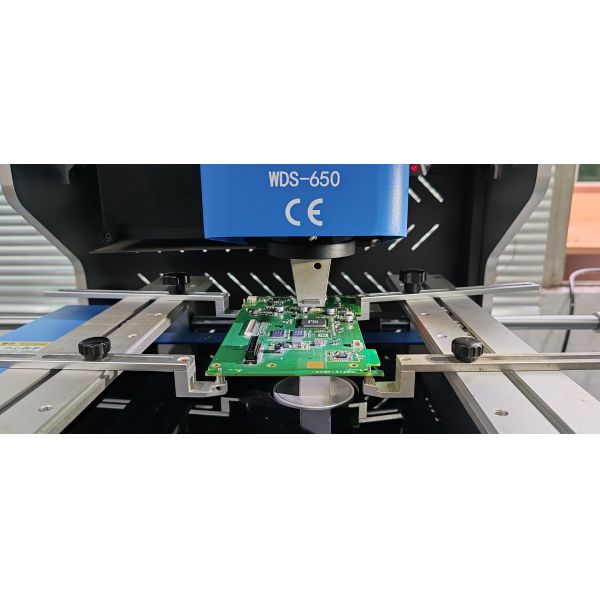

  4. Alignment & Positioning: Achieve accurate alignment using silk screen marks or HD optical camera
  5. Soldering: Precisely mount and solder using triple-zone heating and programmable reflow profile
Product Images
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair

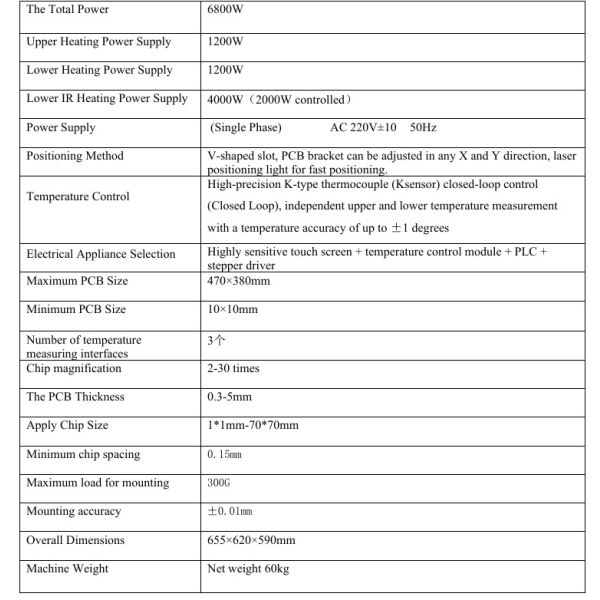

Technical Specifications
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair

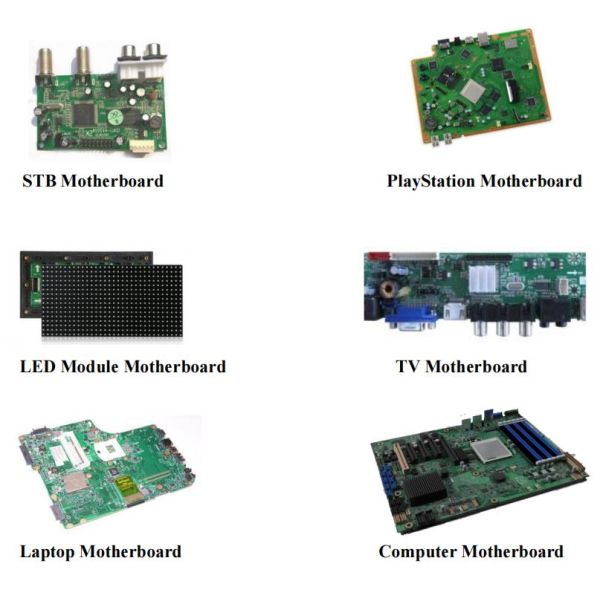

Applications
  • Laptop and computer board rework and repair
  • Game console applications rework and repair
  • Small and medium size electronics assembly factories
  • Medical equipment applications rework and repair
  • Automotive ECU and control unit repair
  • Light systems and LED applications
  • Home appliance and personal gadgets repair
  • Networking and communication equipment
  • Power supply and control PCB applications
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair

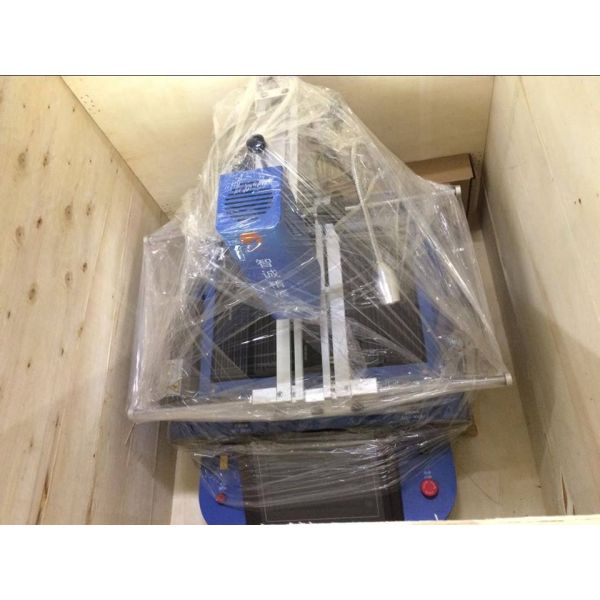

Packaging & Shipping

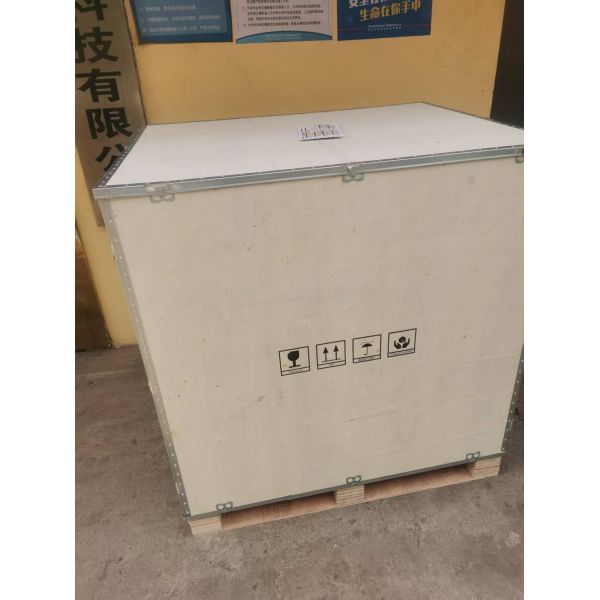

  • Package: Individual standard export strong wooden box
  • Delivery: Within 1-2 work days after receiving full payment
  • Shipping: TNT, DHL, FEDEX, or by air or sea
  • Loading port: Shenzhen or Hong Kong
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair
Company Information
Shenzhen Wisdomshow Technology Co., Ltd. was founded in 2011 by a team of experienced engineers and sales experts. Specializing in BGA rework stations and X-RAY inspection equipment, the company has grown rapidly through continuous R&D and technological innovation.
With ISO9001 and CE certifications, multiple patents, and strong customization capabilities, Wisdomshow serves clients across Asia, Europe, and North America. Our solutions are widely used in server motherboard repair, LED assembly, and smartphone production.
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair
Service & Support
  • Contact: 24 hours technical support by email or phone
  • Warranty: One year free warranty
  • Technology Support: Demo operation videos and on-site training available
  • Documentation: Friendly English user manual provided
  • Pricing: Competitive pricing with agency discounts
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair
Customer Feedback
Richard - Turkey: "Your best price and high purity product is so competitive in my country. Cooperating with you is wonderful!"
Robert - Australia: "Your packing is discreet and perfect. I will order more from you soon."
Corentin - Brazil: "I have cooperated with you for many times. Your product quality is great, that's why I keep buying from you."
Related Products
WDS-S7
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS-620
WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS-650

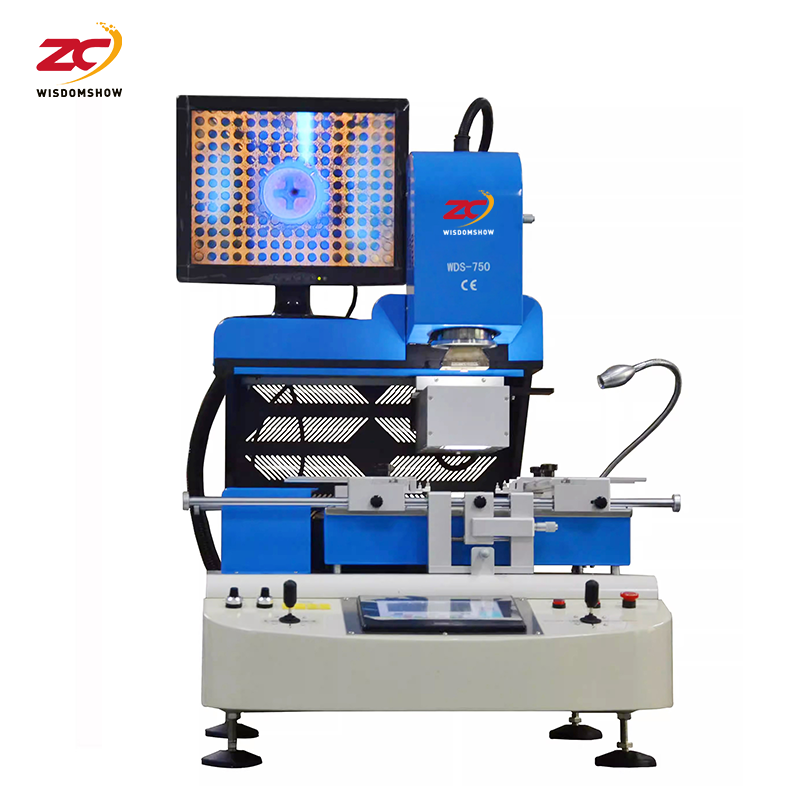

WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS-750

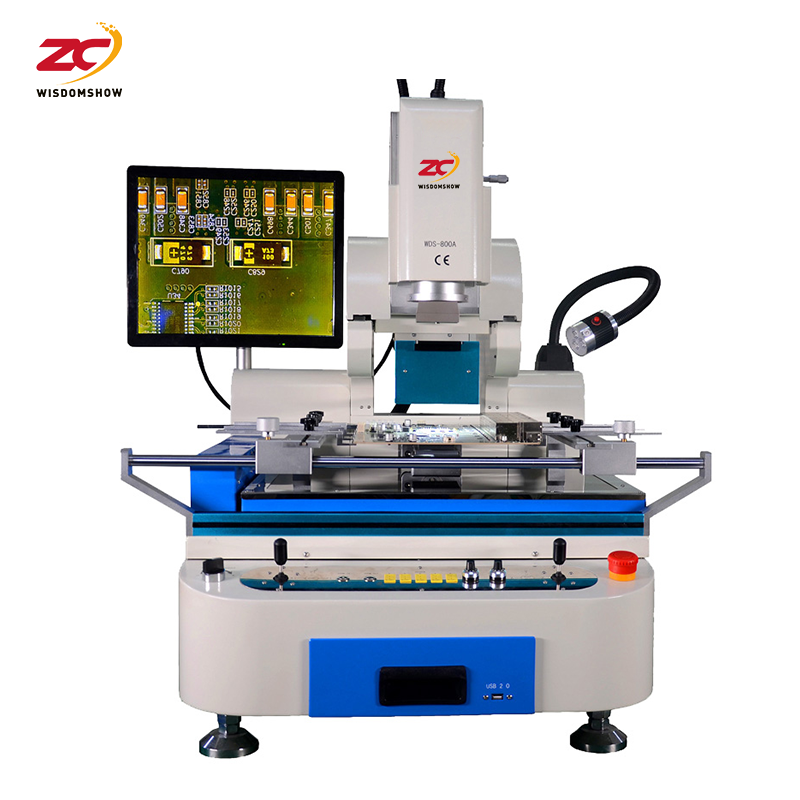

WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS-800A

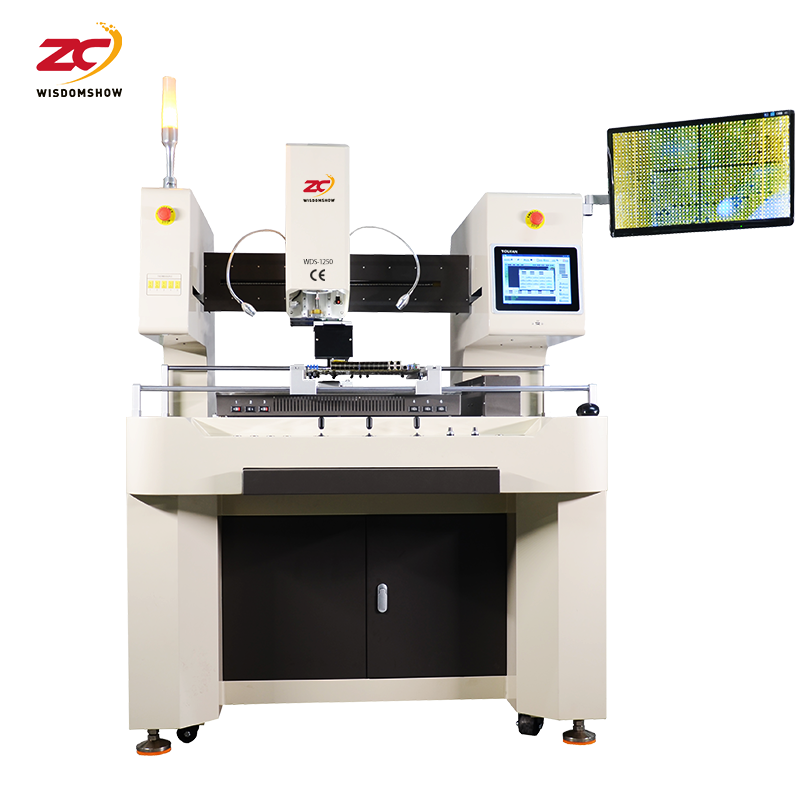

WDS650 BGA Rework Station with Triple-Zone Heating HD Optical Alignment and Touchscreen Interface for Precision BGA Repair WDS-1250
