DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
DS-3000 X-Ray Counter Machine with High Accuracy 99.9% 17 Inches Ultra-Clear Screen and 800W Total Power for Electronics Components
Specifications
Place of Origin :
Guangdong, China
Brand Name :
wisdomshow
MOQ :
2
Price :
$17,500
Weight :
1000 kg
Power :
50-80KV
Voltage :
220 V
Tube voltage :
50-80KV
Tube current :
0.2-0.6mA
Maximum tray size :
17 inches
Pixel matrix :
3072*3072 pixels
Image size :
430*430 mm
Detector size :
470*470*35 mm
Total power :
800W
Equipment size :
878*1480*1895 mm
Supply voltage :
220V 50-60HZ
Counting accuracy :
99.99%
Load-bearing capacity :
10KG
Maximum tray thickness :
80mm
Description

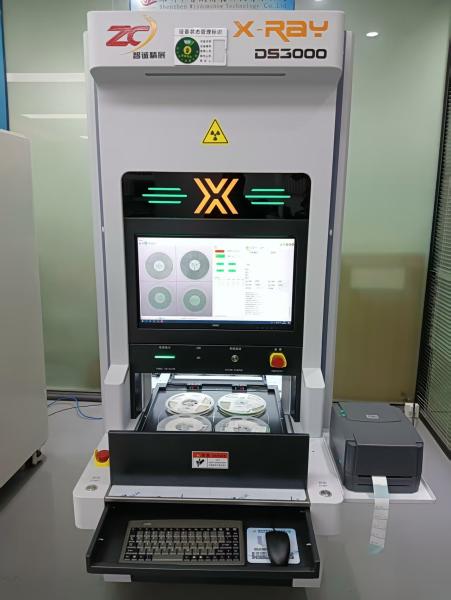

DS-3000 X-Ray Offline Counting Machine, A Offline Automatic Feeding Machine, It Doesn't Need to Bind components and Algorithm, This Model has been on the Market for 8 Years, with Mature Technology and Good Feedback from the Customer, 1 Year Warranty, Good Price, JUST BUY IT!
DS-3200 is an offline automatic feeding machine, It uses X-Ray perspective principle and cooperation with independent research and development of algorithm software with AI function. It can quickly and accurately calculate the number of objects in the tray, and has automatic scan code upload. Data is sent to MSE,ERP and other systems.
Product features
1, Compared with the traditional counting machine, no need to unpack try and transfer tray 2. The flat panel detector adopts 17 inches ultra-clear screen, fast imaging, no distortion 3, 4pcs 7 inches material try or 13-15 inches material try can be calculated simultaneously 4, The counting accuracy is up to 99.99%
5,The counting machine adopts digital data, which can be print barcode stickers or upload the database directly to the database
6.The diameter of the tray can be measured from 7 to 15 inches 7, The product has the function of material picking and foolproof. After the equipment is finished, you can pick up any electronic material. The printer will automatically sense the location of the material and print the response label and quantity.
Equipment advantages

Return on investment The X-RAY spotting machine is the latest high-tech spotting technology on the market, which can meet the counting needs of various electronic components. The speed is more than 10 times that of the traditional spotting machine, and the accuracy is higher, and it is easy to be intelligent. Management can save at least 8-10 people, and the investment cost can be recovered in about 12 months.
Product Paramenters
model
DS-3200
X-ray source
Tube voltage
50-80KV
Tube current
100-800UA<
Cooling method of bare pipe
Air-cooled
Radiation safety
<1μSV/H
Flat panel detector
Detector category
Amorphous silicon
Pixel matrix
3072*3072pixels
Image size
430*430mm
Detector size
470*470*35mm
Load-bearing platform
10KG
Detection size range
Maximum size of tray
17 inches
Minimum size of tray
Unlimited
Maximum thickness of tray
80mm
Bar code recognition
Automatic
Equipment Specifications
Total power
800W
Equipment size
908*1335*1968mm
equipment weight
about 1000KG
Supply voltage
220V50-60Hz
cooperative partner
Qualification
Packing&Shipping
1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
Company Information
Shenzhen Wisdomshow Technology Co., Ltd. was founded in 2011 by a team of experienced engineers and sales experts. Specializing in BGA rework stations and X-RAY inspection equipment, the company has grown rapidly through continuous R&D and technological innovation. In 2015, it expanded into the X-RAY field, launching several advanced inspection systems.Our factory bases on Shenzhen Baoan, has about ten thousand square meters.
With ISO9001 and CE certifications, multiple patents, and strong customization capabilities, Wisdomshow serves clients across Asia, Europe, and North America. Its solutions are widely used in server motherboard repair, LED assembly, and smartphone production. Guided by the principles of professionalism, innovation, and integrity, the company continues to earn global trust and
recognition.
Our Advantages and Service
Contact:24 hours technical support by email or calling;
Warranty:one year free,but all the other relative cost should be on the buyer's account;
Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
Service:Friendly English User manual provided; Good and professional after-sales service;
Price:Give great discount to AGENCY to ensure agents profit.
