Specifications
Place of Origin :
Guangdong, China
Brand Name :
Wisdomshow
MOQ :
1
Price :
$76,000
Weight :
1300 KG
Voltage :
220 V
Tube voltage :
80kV
Focus size :
35μm
Pixel matrix :
3072*3072pixels
Image size :
430*430 mm
Detector size :
470*470*35 mm
Total power :
2400w
Equipment size :
4500*1200*2118mm
Load-bearing platform :
10KG
Max tray size :
17 inches
Max tray thickness :
80mm
Counting accuracy :
99.99%
Radiation leakage :
<1μSV/h
Cooling method :
Air-cooled
Description

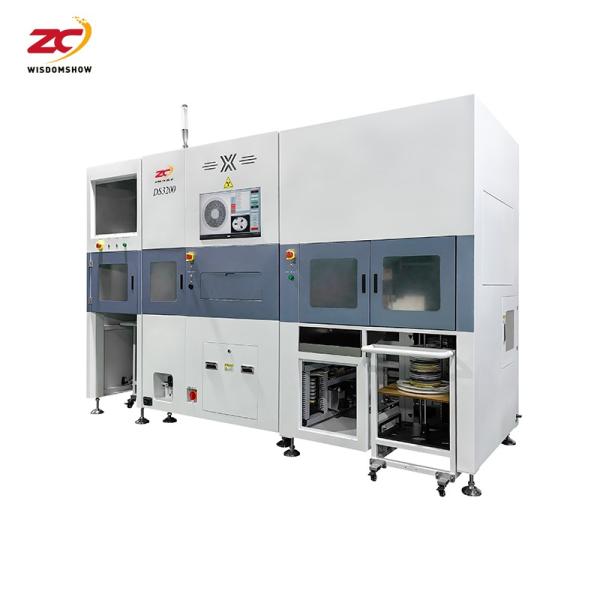

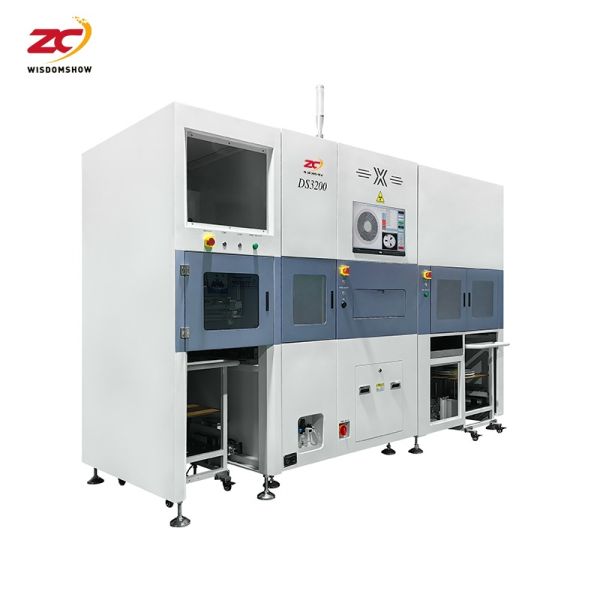

DS3200 Automatic IC Chip Component Counting Machine
Advanced X-Ray SMT Reel Counter for Electronics Production
Innovative Counting Technology

The DS-3200 is an online automatic counting machine based on X-Ray perspective technology with proprietary algorithm software. This AI-powered solution delivers rapid, accurate component counting for SMT production lines.

Key Features
  • Automatic feeding and unloading functionality
  • Online detection without manual intervention
  • Replaces 10-12 manual operators
  • ERP/MES system integration capability
  • 99.99% counting accuracy
  • Automatic CCD visual barcode scanning
  • Advanced neuron algorithm for image processing
  • High-density lead shielding (<1μSV/h radiation)
Operational Advantages
  • Reduces inventory time by 80%
  • Closed X-ray tube design for maintenance-free operation
  • 17-inch ultra-clear flat panel detector for distortion-free imaging
  • Eliminates material shortages and inventory errors
  • Non-destructive counting maintains material integrity
  • Full automation from feeding to labeling
Return on Investment

This advanced X-RAY counting technology operates at 10x the speed of traditional methods with superior accuracy. The system typically pays for itself within 12 months through labor savings of 8-10 operators.

Technical Specifications
Model DS-3200
X-ray Source 50-80KV, 100-800UA, Air-cooled
Radiation Safety <1μSV/H
Flat Panel Detector Amorphous silicon, 3072*3072 pixels
Load Capacity 10KG
Detection Range Up to 17-inch trays, 80mm thickness
Power Requirements 2400W, 220V 50-60Hz
Dimensions 4500*1200*2118mm
Weight Approx. 2500KG
Packaging & Shipping
  • Standard export wooden cases
  • 2 workday lead time after payment
  • Shipping via TNT, DHL, FEDEX, air or sea
  • Ports: Shenzhen or Hong Kong
