Specifications
Warranty :
1 Year
Delivery Time :
10 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Brand Name :
Wisdomshow
Power :
1600W
Weight :
1250KG
Model Number :
S7200
MOQ :
1
Place of Origin :
China
Packaging Details :
Wooden case
Certification :
CE FDA ISO
Product Name :
X-RAY detection machine
Product Size :
1300*1320*1800mm
Package Weight :
1340KG
Voltage :
110-220V 50-60HZ
Supply Ability :
100+
Package Size :
1460X1460X1640 cm
Description

The S7200 X-Ray Inspection System is a high-performance, closed microfocusX-ray solution for non-destructive testing (NDT) of electronics, lithium batteries, and industrialcomponents, equipped with a Hamamatsu source and an ultra-high-definition iRay flatpanel detector. The system features automatic defect detection, CNC batch programming,and void/bubble analysis, making it ideal for BGA void analysis, PCB solder inspection, andaerospace component validation.

High-Resolution Microfocus Imaging
Equipped with a Hamamatsu sealed X-ray tube and 5-15um focal spot for ultra-fine defectdetection, ideal for BGA, IC, and PCB analysis.


Real-Time CNC Batch Inspection

Supports automated batch testing via CNC programming for repeatable, operator-freemeasurements with image storage and reporting.


Comprehensive Defect Analysis
Detects voids, cracks, solder bridges, and microbubbles with high accuracy; supports bubblerate calculation, distance, angle, area, and curvature measurement.


Smart Image Enhancement
Software enables on-the-fly adjustment of brightness, contrast, and gain, with user-definedpresets for repeat product testing.


Integrated Data Output
Inspection results exportable in CSV and image formats, enabling seamless documentation,traceability, and offline review.

Radiation Protection Compliance
Triple-layer steel-lead-steel shielding ensures emission below 0.5 Sv/h, exceedinginternational safety standards.

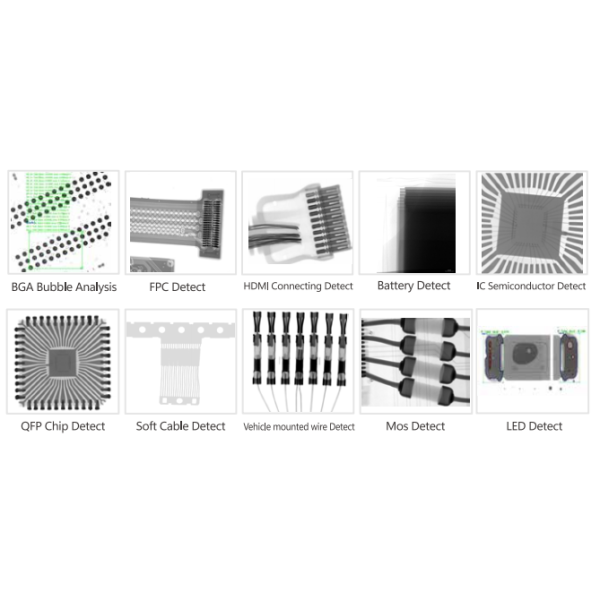

X-ray Inspection Image / Inspection Case Image

High Precision Microfocus X-Ray Inspection Machine with CNC Batch Programming for PCB Testing

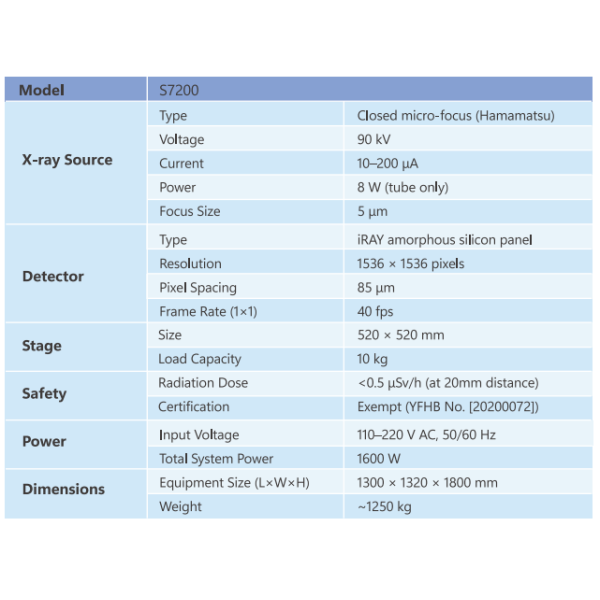

Specifications

High Precision Microfocus X-Ray Inspection Machine with CNC Batch Programming for PCB Testing
