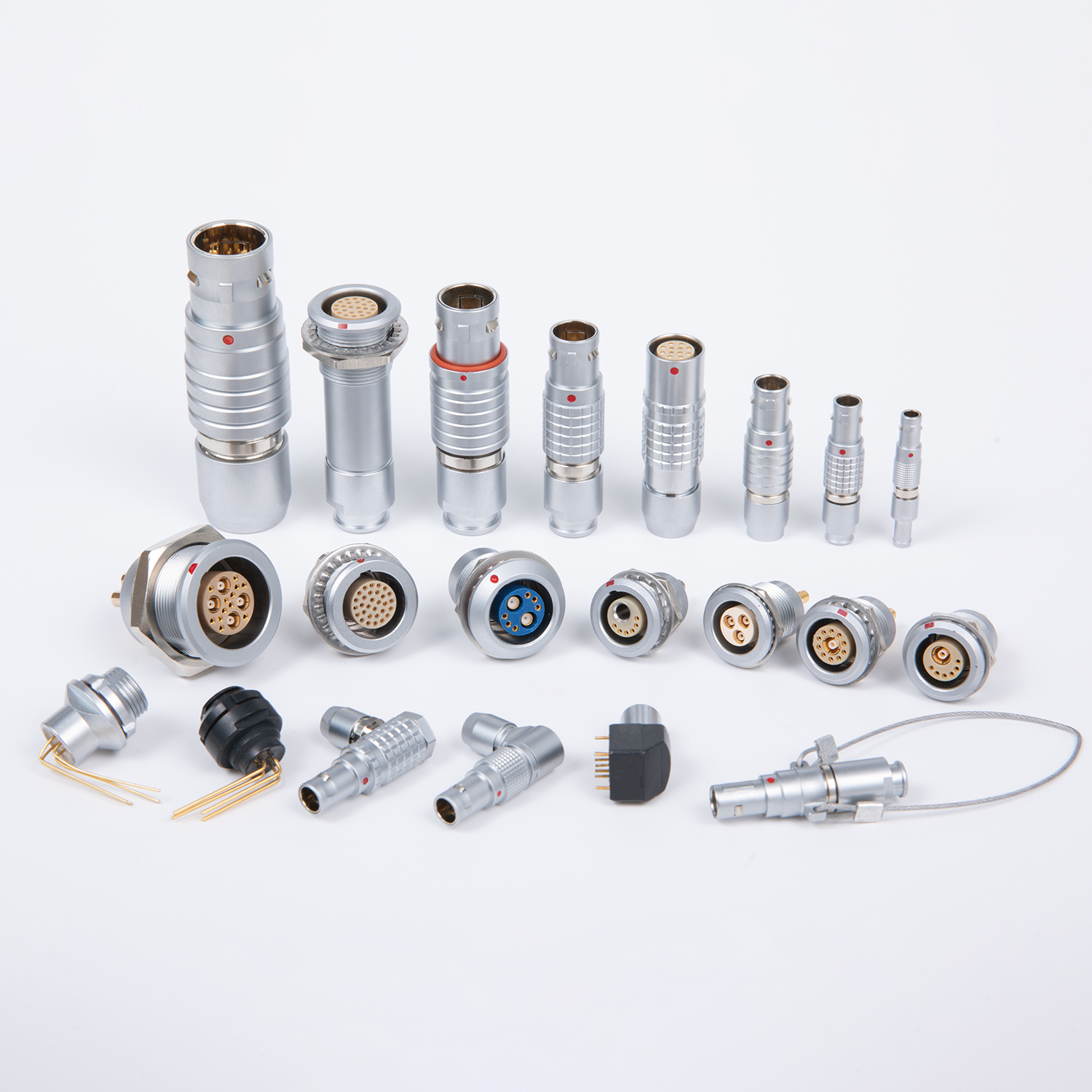

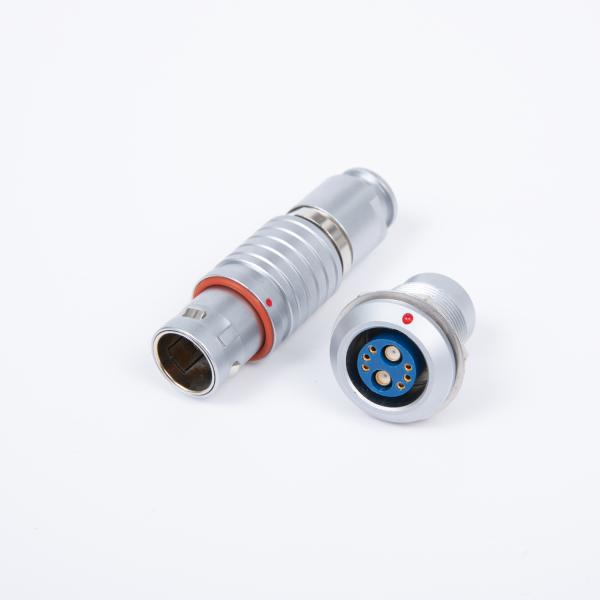

Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Mixed Series EMC Shielding IP50 to IP68 push pull 5000 mating cycles metal shell including Air/Liquid/Power/Signal/Coaxial size 1B to 3B Multifunctional connector
Specifications
Brand Name :
BEXKOM
Model Number :
BK-B-XXX
Certification :
UL/CE/ROHS/REACH/ISO9001/ISO13485/MSDS/COC
Place of Origin :
China
MOQ :
5pcs
Price :
USD4.9~15.5/pc
Payment Terms :
L/C,T/T
Supply Ability :
100000pairs/month
Delivery Time :
7 ~15 days
Packaging Details :
PE bag + Carton Box
Shell material :
Brass alloy chrome plated
contact material :
Brass alloy gold plated
Insulator material :
PPS
IP rate :
IP50/IP68
work temperature :
-55 ~ 250 centigrade
Vibration resistance :
10 ~ 2000 Hz
Salt spay corrosion resistance :
96 Hours
Mating cycles :
>5000
Sample :
Available
Warranty :
12 Months
Description
Multifunction Push Pull Self Locking Connector - Air, Liquid, Fluid and Signals with EMC Shielding
Circular push-pull connectors that integrate both air (fluid) and electrical signal transmission, along with EMC shielding, are specialized connectors designed for applications requiring multifunctionality in a compact, robust form. These connectors are typically used in advanced industrial, medical, and MIL applications where the combination of pneumatic control, fluid handling, and signal transmission in one connector is necessary.

Pin Numbers

2~48

Shell Material

Brass Chome Plated

Pin Material

Brass Gold Plated

Insulator Material

PPS/PEEK

Waterproof Level

IP50

Work Temperature

(-55 ~ 250) Centigrade

Salt spray corrosion resistance

96 Hours

Mating Cycles

>5000 times

Current Rate

1.5 - 25 A

Testing Vlotage

450~ 2100V

EMC Shielding

Available

Locking method

Push Pull Locking

Shock Resistance

100g/6ms

Vibration Resistance

10~2000Hz, 15g
Key Features
Multiple Functionality
  • Air/Fluid Channels: Integrated pathways for air or fluid transmission, allowing pneumatic control or fluid delivery alongside electrical signal transmission
  • Signal Contacts: Electrical contacts for transmitting data, control signals, or power
  • Hybrid Design: Combination of fluid and signal transmission in a single connector reduces connections needed, saving space and simplifying system design
EMC Shielding
  • 360-Degree EMC Protection: Comprehensive shielding protects sensitive electrical signals from electromagnetic interference (EMI)
  • Enhanced Signal Integrity: Prevents crosstalk between different signals and functions within the connector
Push-Pull Mechanism
  • Quick and Secure Connection: Easy and rapid connection/disconnection that resists vibration and accidental disconnection
  • Ease of Use: Intuitive operation even in tight or hard-to-reach spaces
Robust Construction
  • Metal Shell: Provides strong mechanical protection against impacts, vibrations, and environmental factors
  • Sealing Options (IP67/IP68): Protection against dust, moisture, and contaminants for harsh environments
  • Durability: Built for long-term reliability and repeated connection cycles in demanding conditions
Customizable Configurations
  • Variety of Pin and Channel Layouts: Customizable signal contacts and air/fluid channels to meet specific requirements
  • Material Choices: Options including stainless steel, aluminum, or high-grade plastics for specific environmental or regulatory needs
Applications
  • Medical Devices: Medical equipment requiring air/fluid control integrated with electrical signal transmission (surgical instruments, dialysis machines)
  • Industrial Automation: Systems requiring combined signal and pneumatic control (automated machinery, robotics, process control)
  • Aerospace and Defense: Avionics and MIL systems needing robust, multifunctional connectors for fluid and signal transmission in harsh environments
  • Laboratory Equipment: Analytical instruments and lab automation systems requiring both fluid management and data transmission
Leading Brands and Manufacturers
  • LEMO: Push-pull connectors configurable with fluid and electrical contacts, known for high precision and reliability
  • Fischer Connectors: Rugged connectors with fluid and signal integration options meeting stringent environmental standards
  • ODU: Connectors combining air and signal transmission with robust EMC shielding for medical and industrial applications
  • Staubli: Connectors integrating fluid and electrical connections for automation and robotics applications
Considerations for Selection
  • Application Requirements: Determine specific needs for air/fluid flow and signal transmission, including pressure, flow rate, and electrical specifications
  • Environmental Factors: Consider operating environment including temperature, humidity, and exposure to contaminants
  • Connection Cycle Durability: Ensure connector is rated for high number of mating cycles if frequent connections/disconnections are required
  • Custom Solutions: Work with manufacturers offering customizable connectors for unique or specialized applications
