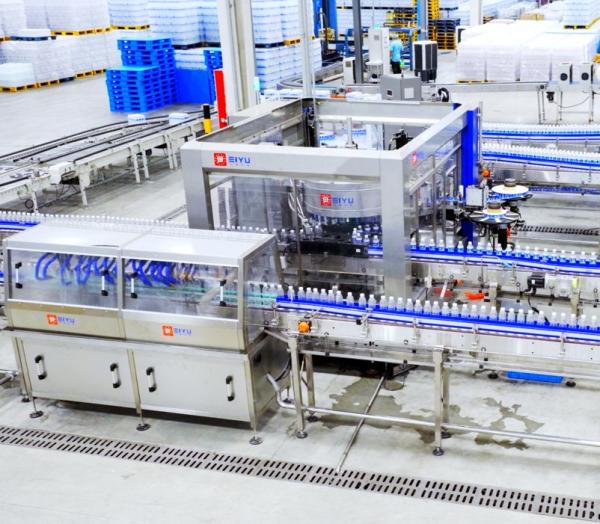

High-Speed Automated PET bottle filling machine – Efficient, Automated, and Reliable

Shanghai Peiyu Packaging Technology Co.,Ltd.

Meta Title: High-Speed Bottled Water Production Line | Automated, 10,000-60,000 BPH
Meta Description: Advanced high-speed bottled water production line for PET bottles (5L, 10L, 500ml-2L). Fully automated, energy-efficient, with blow molding, filling, capping, and labeling.

Key Features
Ultra-High Efficiency

Output: 10,000–50,000 bottles per hour (BPH).

Compatible with PET bottles (500ml–5L), including 5-gallon jugs.

Fully Automated Process

Integrated blow molding, rinsing, filling, capping, labeling, and packaging.

PLC control + HMI for precision and easy operation.

Hygienic & Safe

Stainless steel (304/316) contact parts, CIP/SIP cleaning systems.

Complies with FDA, CE, and ISO 9001/22000 standards.

Energy-Saving Design

Servo-driven motors reduce power consumption by 20%.

Low water waste with reverse osmosis (RO) purification.

Flexible Customization

Supports still/sparkling water, hot-fill, or cold-aseptic filling.

Adaptable to round/square bottles, various caps (screw, snap-on).

Technical Parameters
Parameter Specification
Production Capacity 10,000–50,000 BPH
Bottle Size 300ml–5L (customizable)
Filling Accuracy ±1%
Air Pressure 0.6–0.8 MPa
Power Supply 380V/50Hz or 460V/60Hz
Material 304/316 stainless steel

Advantages Over Competitors
✅ Lower Maintenance: Modular design reduces downtime.
✅ Smart Detection: Rejects defective bottles via sensors.
✅ Fast Changeover: Adjust bottle sizes in <15 minutes.
✅ OEM Support: Custom logos, labeling systems, and conveyor layouts.

FAQ
Q1: What’s the minimum order quantity (MOQ)?
→ Typically 1 line, with lead times of 60–90 days.

Q2: Does it support biodegradable PET bottles?
→ Yes, compatible with rPET and eco-friendly materials.

Q3: How is after-sales service handled?
→ We offer 24/7 remote support, on-site engineers, and 1-year warranty.

Q4: Can it fill carbonated water?
→ Yes, with added pressure-resistant fillers and anti-foaming tech.

Q5: What’s the energy consumption?
→ Approx. 25–40 kW/h depending on capacity.
