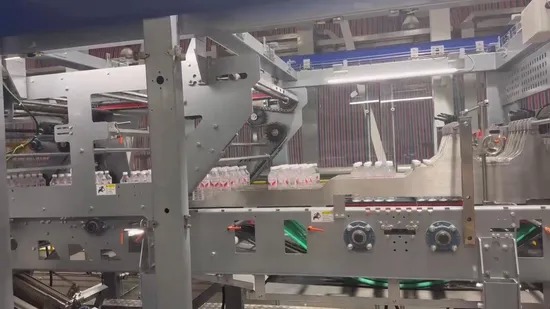

Automatic L-Sealer Shrink Wrapping Machine with 25-120 Packs/Min Capacity 0.6-0.8MPa Air Pressure and 1060mm Conveyor Height

Specifications

MOQ :

Price :

Individual quotation according to different requirements

Brand Name :

Peiyu

Model Number :

SPCSW.G1

Certification :

CE,ISO9001:2008,High-tech enterprise

Place of Origin :

China

Payment Terms :

L/C,T/T

Supply Ability :

300 pcs per month

Delivery Time :

10-20 workdays

Packaging Details :

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Model NO. :

SPC-MSW45F

Automatic Grade :

Automatic

Driven Type :

Electric

Manner of Packing :

Both Ends Open

Adjust Speed :

Frequency Conversion Speed Regulation

Heating Mode :

Quartz Heating Tube

Capacity :

25-120 Packs/Min

Air Pressure :

0.6-0.8MPa

Film Material :

Weight :

4500kg

Conveyor Height :

1060mm

Shrink Temperature :

200ºC~280ºC

Film Width :

≤900mm

Film Thickness :

0.06~0.12mm

Power :

380V/50Hz

Description

The shrink film packing machine has characteristics of simple operation,wide application range and good sealing performance. With the overall combination design, easy maintenance, and drive by servo motors, can save time for changing products. Removable operation panel operated by HMI, which can show the machine information. Special film reel device and cutter device, innovative film tension transferring and buffer unit, casy adjusting film length, special color film positioning device. The film is stick at the bottom of packaged product, so that the product packaging is firm and reliable. Advanced electric heating tunnel with both excellent and effective shrinking result. Its power is 70KW, and the actual consumption is less than 40KW when the heating temperature is 200ºC.

capacity	60packs/min;Dual channel 60*2 packs/min
packing pattern	34;46,4*7(D.55-62mm),
shrink temperature	200ºC~280ºC
product	PET bottle ,tin can,cases
applicated container shape	Cylinder /Square
film width	≤900mm
film thickness	0.06~0.12mm
film diameter	≤400mm
noise	≤65dB
power	380V/50Hz
air pressure	0.6~0.8Mpa
air consumption	100NL/min
main machine power	35kW
Dimension(mm)	L×W×H:20695×2890×3000
weight(t)	10.5
