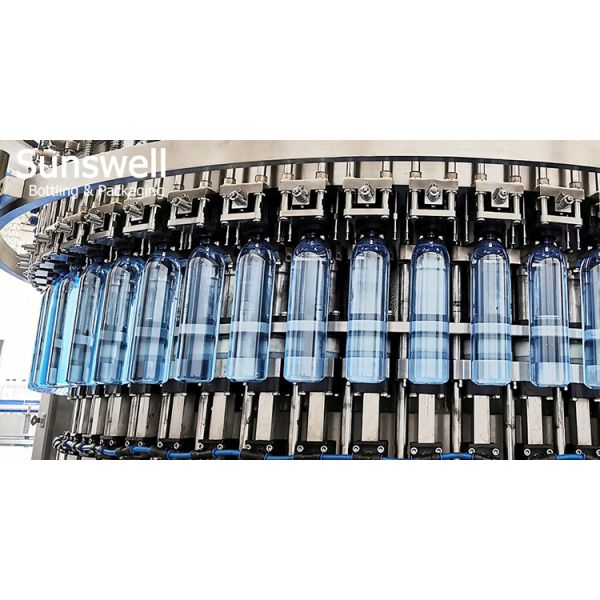

200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
Specifications
Brand Name :
Sunswell
Model Number :
DXGF
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 20000/set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Year
Delivery Time :
60 days
Packaging Details :
Wood case & Carton packaging
Filling Accurancy :
±5%
Filling Volumen :
200ml-2000ml
Bottle Type :
PET Plastic Bottle
Structure :
Rotary Rinser-Filler-Capper 3-in-1
Capacity :
3000BPH-36000BPH
Filling Principle :
Gravity Filling
Filling Valve Head :
Multi-head
Warranty :
1 Year
Voltage :
220V/380V/customized, 50Hz/60Hz
Weight :
3000 KG
Description
200ml Carbonate Filling Machine Soda Water PET Plastic Bottle
Products Description

Carbonated Drinks Filling Machine

Soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the
requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy.

The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing
all kinds of non-air drinks such as carbonated beverage ,fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure
water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.

1. Bottle infeed

Air conveyor, star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.

2.Rinser

Carbonated drinks filling machine is rotary washing machine

4. Filler

Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
Model
Filling Heads
Capacity 500ml
Bottle Size
Power
Dimension(mm)
Weight(KG)
DCGF14-12-5
12
2500BPH
200-2000ml
1.8kw
2200×1800 × 2000
2500
DCGF 18-18-6
18
3000BPH
200-2000ml
2.6kw
2500 × 1800 × 2300
3000
DCGF 24-24-8
24
6500BPH
200-2000ml
3.8kw
2800 × 2100 × 2300
5000
DCGF 32-32-10
32
8000BPH
200-2000ml
4.2kw
3500 × 2200 × 2300
6000
DCGF 40-40-10
40
1000BPH
200-2000ml
7kw
4760 × 2080 × 2300
7000
DCGF 50-50-12
50
13000BPH
200-2000ml
9kw
5150 × 3820 × 2700
10000
DCGF 60-60-15
60
17000BPH
200-2000ml
13kw
5300 × 3950 × 2700
8500
DCGF 72-72-18
72
19000BPH
200-2000ml
16kw
6250 × 4773 × 2700
8500

5. Capper

The bottle into the click wheel through the transition card bottleneck Capping Machine.
