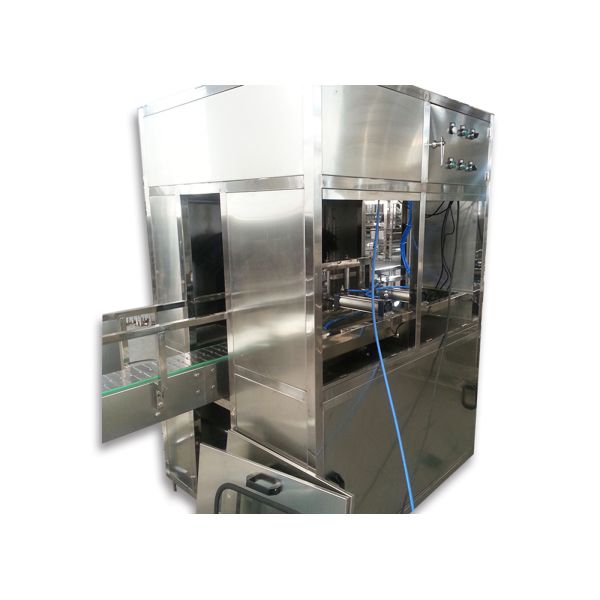

120-2000BPH Automatic Bottle Washing Filling And Capping Machine 5 Gallon Water Monoblock
120-2000BPH Automatic Bottle Washing Filling And Capping Machine 5 Gallon Water Monoblock
Specifications
Brand Name :
Sunswell
Model Number :
QGF
Certification :
CE SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$20,000/set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
90 days after receiving down payment
Packaging Details :
Wooden case
Product name :
Automatic 5 Gallon Bottle Water Filling Machine
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
220V/380V,380V 50HZ 3P or customized,380V/50HZ
Driven type :
Electric
Type :
Filling Machine
Material :
SUS304
Function :
Washing Filling Capping
Bottle type :
5 gallon barrel or 3 gallon barrel
Description

China Manufacture 5 Gallon 120-2000BPH Washing-Filling-Capping 3-in-1 Monoblock

Features:

1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. Three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts.
4. with AIRTAC brand air cylinder, F. R. L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: All 304 Stainless Steel, combine with clear fiber glass windows.

Name Function description
De-capper Automatic discharge cap fro recycled bottle
Out washer Wash and clean bottle's surface body ,neck and bottom
Inner washer Rinse and sterilize bottle inside by hot lye liquid , recycled water , sterilizer ,pure water
Filler Filling water into bottles
Capper Sealing bottles by caps
Cap feeder Send cap
Cap washer Wash/sterilizer cap
Shrinker Shrink label film at bottle neck
Bottle lifter Bottle is held by double belts and it keeps suspending state waiting for bing covered with bag manually
Palletizer Use machine to reduce labor force and use automatic control to reduce manual control
Name Model Capacity BPH
De-capper BG-1 100-450
BG-2 600-900
BG-3 1200-2000
Out washer ST-600 100-600
ST-1200 900-2000
Washer filler capper 3-in-1 QGF-120 120
QGF-150 150
QGF-240 240
QGF-300 300
QGF-450 450
QGF-600 600
QGF-900 900
Rotary Type filling QGF-1200 1200
Palletizer MD-1200 1200

120-2000BPH Automatic Bottle Washing Filling And Capping Machine 5 Gallon Water Monoblock
