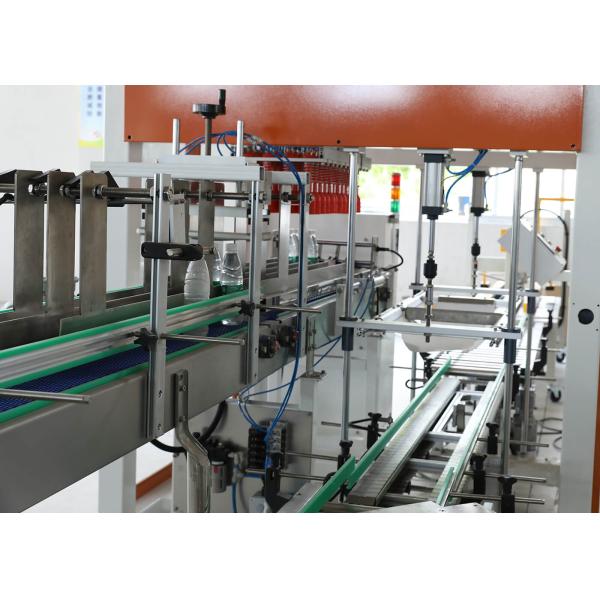

High Efficiency Shrink Packaging Equipment PET / Glass Bottle / Can Carton Packing Machine
High Efficiency Shrink Packaging Equipment PET / Glass Bottle / Can Carton Packing Machine
High Efficiency Shrink Packaging Equipment PET / Glass Bottle / Can Carton Packing Machine
High Efficiency Shrink Packaging Equipment PET / Glass Bottle / Can Carton Packing Machine
Specifications
Brand Name :
Sunswell
Model Number :
GB-20
Certification :
CE, ISO, SGS, UL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
60 days
Packaging Details :
Seaworthy Wooden Case
Name :
Case packer
Driven type :
Electric
Packaging type :
Cartons,Case
Application :
Food,Beverage,Commodity,Chemical,Medical
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field maintenance and repair service
Packaging material :
Wood
Automatic grade :
Fully-Automatic
Warranty :
12 months
Description

Full- Automatic PET/Glass Bottle/Can Carton Packing Machine Bottle Caser/Carton Wrap Round Packer

Features:

The rear cover fold automatic.

Belt drive with side cover.

Screw transfer so easy to adjust carton height.

The platform height is adjustable.

Moveable leg to convenient to move.

The sealing tap length is adjustable.

Good appearance and smooth operation, easy operation and maintain

Technical Parameters:

Speed: 18M/min

Max. Packing size: L600×W500×H500mm

Min. Packing size: L200×W150×H150mm

Tape: 48mm, 60mm, 75mm

Platform height: 600-700mm

Power supply: 110V, 220-240, 50/60Hz, 1Phase

Air consumption: 5-6bar 150Ne/min

Power: 400W

Dimension: L1770×W850×H1520mm

Weight: 250 kg

Material: carbon steel

Transport: left---right

Transfer roller: stainless steel

oversize(L/W/H) 4500/800/2050(mm)
total installed capacity 3KW
Main Power AC3-380V/50HZ+G+E
optimal working temperature -10ºC~40ºC
Auxiliary power supply 24VDC
pressure of compressed air 0.4~0.6Mpa
Consumption of compressed air 1500L/Min
weight 1000KG

High Efficiency Shrink Packaging Equipment PET / Glass Bottle / Can Carton Packing Machine
