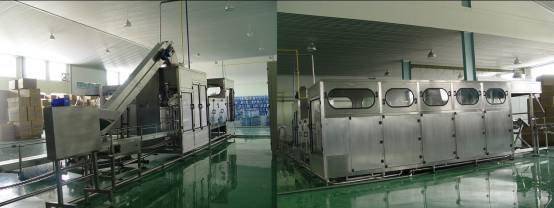

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Specifications
Brand Name :
Sunswell
Model Number :
Sunswell
Certification :
CE.ISO,SGS
Place of Origin :
China
MOQ :
1
Price :
Negothiate
Supply Ability :
100 sets per year
Delivery Time :
30 days
Packaging Details :
Standard export wooden case
Payment Terms :
L/C, T/T
Condition :
New
Automatic grade :
Automatic
Bottle type :
5 gallon barrel or 3 gallon barrel
Voltage :
380V 50HZ 3P or customized
Driven type :
Electric,Pneumatic
Type :
Filling Machine
Material :
304 stainless steel
Warranty :
12 Months
Description

Fully Automatic 3 Gallon 5Gallon Mineral Water Pure Water Production Line

List of Equipment

No

System

Item
Bottle Loading Loading Conveyor
Decapper Automatic Decapper
Washer Automatic Outer Brusher
Bottling Auto Loader
Rinsing-filling-capping Monoblock
Downstream Unloading Conveyor
Light Inspection
Seal Shrinker
Others Bridges, cable, wire tank
Pipelines, valves & fittings
Packaging & loading to Shanghai Port
Technical documents
Training
Auxiliary spare parts

Descriptions and Main Specifications of Equipments

Brush External Bottle Washer

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line

General description

Automatic external brusher is corollary equipment of 5 gallon barrel line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. Machine is made of stainless steel which anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate. It is well designed with reasonable structure and high efficiency, operating stably with highly automation.

Main parameters

  1. Pneumatic components: AirTAC
  2. AC contactor: Schneider/SIEMENS
  3. Adopt stainless steel conveyor
  4. Material: S.S. 304
  5. Bearing has good waterproof structure.
  6. Starwheel motor:Shanghai 0.75kw
  7. Washing pump: CNP 0.37kw
  8. Dimension:1600×1100×1300

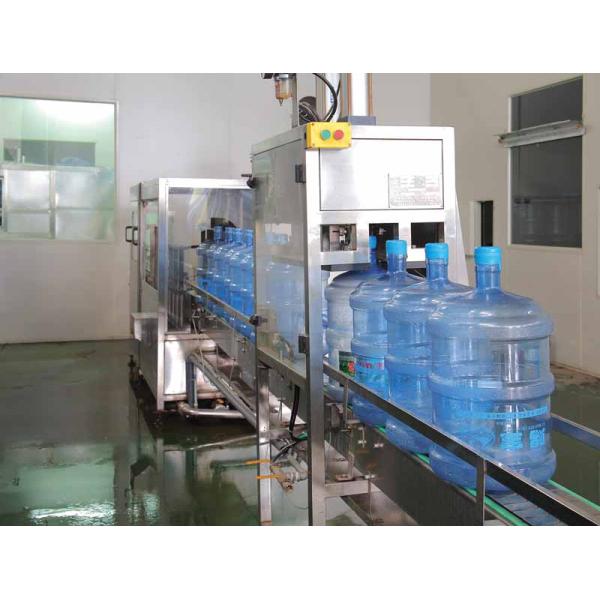

Washer/Filler/Capper

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line

General description

TXG300 is the core equipment specially for 5 gallon filling line, which is the ideal equipment for producing mineral water, pure water and still water. It is made of quality stainless steel, anti-corrosion and easy to clean.

Main parameter

  • Model:TXG-300
  • Filling heads:2
  • Dimension:Rinser 5000*2300*2200mm
  • Filling volume: 5 gallon
  • Bottle specification:φ276×490mm
  • Capacity: 300BPH
  • Power consumption max 4KW
  • Washing procedure: total 12 steps: No.1 Empty bottle, No.2 No.3 and 4: alkali water washing; No.5 recycled water washing; and NO. 6 7 8: cl02 washing; No.9: dripping, No. 10 and 11: product water washing; No.12: dripping. Rinsing heads are hoisting type.
  • Cycle disinfectant, recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.
  • Air source:pressure 0.5~0.6Mp,consumption 350L/M
  • Structure: transmission controlled by PLC.

Configuration (lye tank leaves steam joint)

  • PLC: MITSUBISHI
  • Pump: CNP
  • Pneumatic components: AirTAC
  • AC contactor: Schneider
  • Main motor: Shanghai Bolong
  • Equip automatic cap sorting and loading system
  • Equipment automatic malfunction protection device

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
