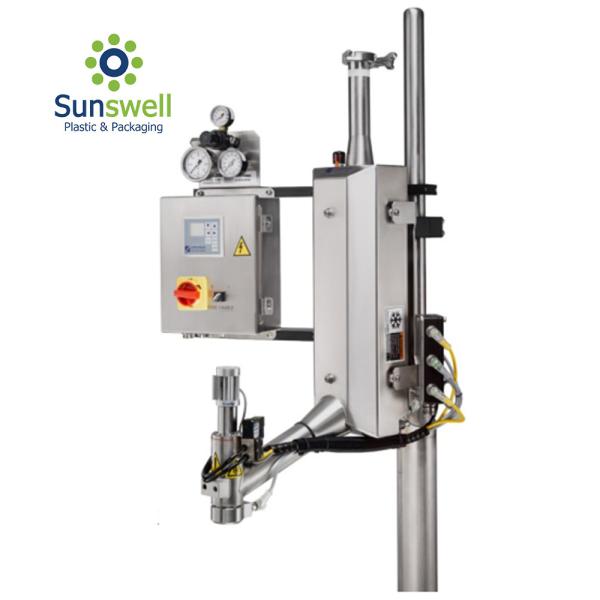

Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Specifications
Brand Name :
sunswell
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 12000
Payment Terms :
L/C, T/T
Supply Ability :
50 SETS PER MONTH
Delivery Time :
45DAYS
Packaging Details :
Standard export wooden case
Automatic grade :
Automatic
Voltage :
220V/380V
Type :
beverage nitrogen dosing machine
Application :
Beverage,Food,Aluminum can and PET bottle
Description
Product Description
Liquid nitrogen filling machine is specially designed for medium and low speed production lines (edible oil, drinking water,food,etc)
A multi-functional nitrogen injection system designed to accurately inject liquid nitrogen into each container. The injected liquid nitrogen is then vaporized to form an internal pressure, which increases the stacking load rate of the container, and at the same time pushes out the oxygen in the container for the purpose of inerting and oxygen isolation.
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Material
SUS 304
Weight
15kg
Size
700mmX159mm
Doser size
270mm×57mm
Doser arm size
380mm
Nozzel
0.040”,0.050”,0.060
Supply source
liquid nitrogen:3-22psi(0.2-1.5bar)
air nitrogen:60-100psi(4.1-6.9bar)
power:110-240V,AC,50/60Hz,100W
Consume
0.04gai/hour

Applications :
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Electric Can Filling 100W Liquid Nitrogen Dosing Machine
Operating Principle :
Liquid nitrogen (LN2) is first transferred from the storage tank to the nitrogen injection head through the vacuum insulation tube.
The first sensor detects the line speed, the second sensor senses the container, and calculate the required liquid nitrogen injection volume based on the container speed.
Once the container is sensed, the filling valve is opened and a fixed amount of liquid nitrogen is injected.
The entire process is controlled by the programmable logic controller ,sensor and human-machine interfac
