Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
Specifications
Brand Name :
Sunswell
Model Number :
TGX
Certification :
CE, ISO, SGS, UL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30 days
Packaging Details :
Seaworthy Wooden Case
Description

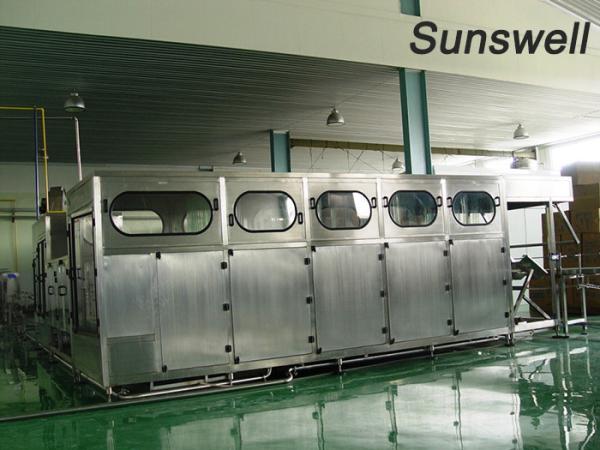

Automatic Pure Mineral Barrel 5 gallon water filling machine with good price

Desciption of Machine

(1) This filling line specially produces 3&5 gallons barreled drinking water.

(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.

(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.

(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

Specifications:

Model TGX-
120		 TGX-
300		 TGX-
450		 TGX-
600		 TGX-
900		 TGX-
1200
Filling heads 1 2 3 4 6 8
Volume(L) 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size(mm) 270*490 270*490 270*490 270*490 270*490 270*490
Capacity(b/n) 120 200 300 450 900 1200
Gas pressure(Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6
Gas consumption(m*3/min) 0.37 0.37 0.6 0.8 1.5 1.8
Moto power(kw) 1.38 1.75 3.8 3.8 9.75 13.5
Rated voltage(v) 380V/
50HZ		 380V/
50HZ		 380V/
50HZ		 380V/
50HZ		 380V/
50HZ		 380V/
50HZ
Weight(kg) 680 800 1500 2100 3500


4500

Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation


Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation

Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation

Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
Pure Mineral Barrel 5 Gallon Water Filling Machine High Degree Of Automation
