Specifications
Brand Name :
China Beverage
Model Number :
XGF24-24-8
Certification :
CE ISO
Place of Origin :
Zhangjiagang, Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets/season
Delivery Time :
45 Working Days
Packaging Details :
Wooden days
Bottle volume :
0.2L-2L
Bottle type :
PET Plastic Bottle
Product name :
Factory Price Automatic Bottle Pure Water Filling Machine (XGF24-24-8)
After-sales service provided :
Engineers available to service machinery overseas
Material :
Food grade, stainless steel
Capacity :
15,000BPH (adjustable)
Description

Factory Price Automatic Bottle Pure Water Filling Machine (XGF24-24-8)

Basic Information

1). Rated capacity: 15,000BPH (500ml);

2). Filling material: Drinking Water;

3). Filling type: Gravity filling;

4). Bottle type: PET plastic bottle; Max diameter 96, Max height 310mm;

5). Cap type: Standard HDPE screw cap, diameter 30/25mm;

7). Warranty: One year;

8). Package: Wooden case;

Main feature

1). Direct connection technology between air conveyor and in-feeding starwheel is applied to replace in-feeding screw and conveying chain to ease bottle changing process with only to change few parts. Newly-designed bottle-separating grippers are assembled to starwheel.
2). We adopts neck-hanging technology in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment, only few parts need to be adjusted.
3). Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.
4). High-speed, easily-cleaned filling valves with big flow volume are equipped with well CIP system and control system to rinse the equipment thoroughly.
5). Splint of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change arch board and starwheel, within ten minutes

Machine description

►Washing machine

  • The rotary wheel is a fully stainless steel welded structure.
  • The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
  • The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
  • All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
  • The rinser is driven by driving system positioned inside machine frame via gear transmission.

0.2L-2L Drinking Water Bottle Packing Machine , Water Bottle Packaging Machine XGF24-24-8

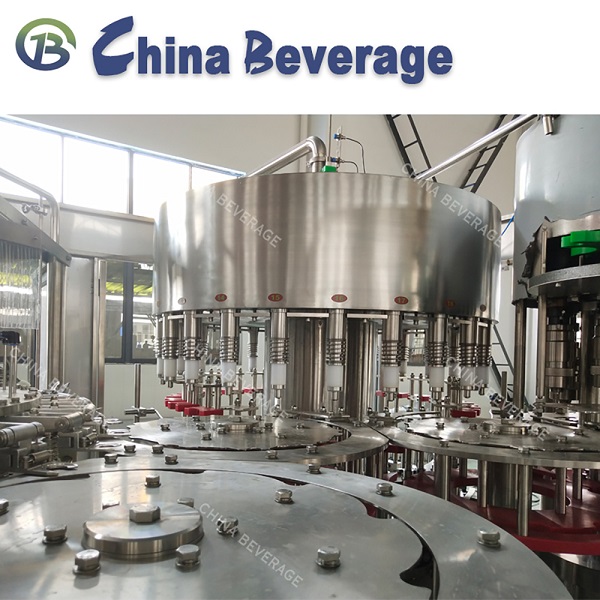

►Filling machine

  • Rotary wheel fully made of stainless steel SUS 304.
  • Gravity filling method.
  • Filling valves are made of SUS304.
  • Filling valves are reasonably structured with accurate filling.
  • Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
  • Level of cylinder is controlled with float-ball.
  • Filler is driven through gears inside the machine frame.
  • Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

0.2L-2L Drinking Water Bottle Packing Machine , Water Bottle Packaging Machine XGF24-24-8

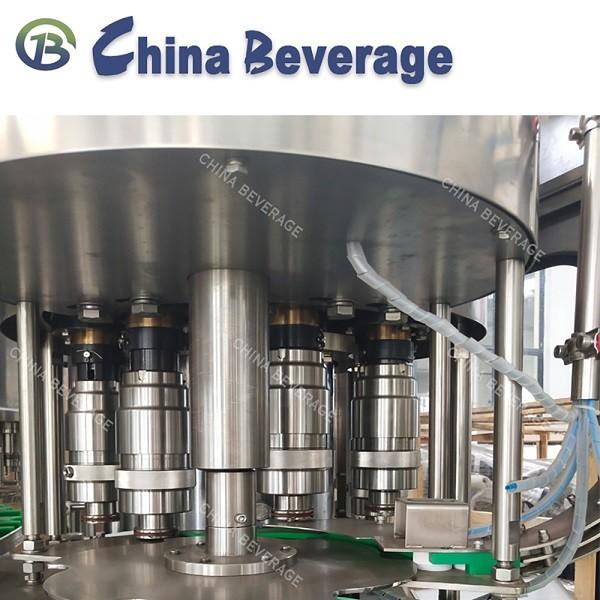

►Capping machine

Screw capping machine is most precision part in the 3-in-1 machine, it has a big influence to the goods stability and defective rate.

Our screw capping has following feature:

  • Magnetic constant torque, defective rate≤ 0.2%
  • Reversal caps ejecting device
  • No bottles, no feeding cap

0.2L-2L Drinking Water Bottle Packing Machine , Water Bottle Packaging Machine XGF24-24-8

Technical Parameters

Number of working stations

rinser: 24, filler: 24, capper: 8
Rated capacity 15000 (500ml)
Applicable bottle diameter 50-90mm, height 165-310mm
Air supply pressure

0.7MPa
Air consumption

0.8M3/min
Rinsing water pressure 0.2-0.25 MPa
Consumption of rinsing water 2 tons/hr
Filling way Gravity filling
Main motor power 3KW
Dimension 3430×2600×2750 mm (L×W×H)
Machine weight

7000Kg

If you have interest in learning more about our water filling machine, welcome feel free to contact with us.
