Specifications
Cooling System :
Direct Cooling
Door & Quantity :
Coated Tempered Glass, 2 Doors
Evaporator Tubing :
Alloy Pipe / Copper Tube
Rated Power (W) :
200W -560W
Capacity :
200L-710L
Door Type :
Sliding Door
Power Source :
Electricity
24h Power Consumption(Kwh) :
3.2kw -7.2kw
Refrigerant :
R290
MOQ :
10
Cabinet Material & Color :
D20 Prepainted Steel, White Color
Transport Package :
Cardboard Box + Wooden Frame
HS Code :
8418500000
Price :
250
Function :
Cold Storage & Freezing
Origin :
Shandong, China
Temperature Range (℃) :
8/-20
Temperature Type :
Single-temperature
Climate Type :
N/4
Certification :
CE
Foam Thickness :
75mm
Trademark :
Sunless
Temperature Control :
Mechanical Thermostat
Type :
Chest/Deep Freezer
Inner Liner Material :
D20 Prepainted Steel / PCM Sheet
Door Number :
Double Doors
Production Capacity :
50000pieces/Year
Defrost Type :
Manual Defrost
Description
Commercial Deep Frost Free Freezer Supermarket Island Cabinet Ice Cream Freezer
Product Specifications
Model No. SD/SC-1200/1400MY SD/SC-1600MY SD/SC-1800MY SD/SC-2000MY SD/SC-2000KMY SD/SC-2500KMY
Packing Dimension (mm) 1220/1420*670*900 1620*820*900 1820*820*900 2020*820*900 2020*1020*900 2520*1020*900
Product Dimension (mm) 1200/1400*650*910 1600*800*910 1800*800*910 2000*800*910 2000*1000*910 2500*1000*910
Inner Cavity Dimension (mm) 1050/1250*480*450 1430*630*450 1630*630*450 1830*630*450 1830*830*450 2330*830*450
Effective Volume (L) 200L 330L 380L 430L 560L 710L
Net Weight (kg) 56/61kg 72kg 81kg 87kg 100kg 126kg
Rated Power (W) 200w 280w 320w 340w 400w 560w
24h Power Consumption (kWh) 3.2kw 4.2kw 4.9kw 5.8kw 6.2kw 7.2kw
Climate Type N/4 N/4 N/4 N/4 N/4 N/4
Temperature Range (ºC) 8/-20 8/-20 8/-20 8/-20 8/-20 8/-20
Cooling System Direct Cooling Direct Cooling Direct Cooling Direct Cooling Direct Cooling Direct Cooling
Compressor Model Donper/Mitsubishi/Hubing
Refrigerant R290 R290 R290 R290 R290 R290
Inner Liner Material D20 Prepainted Steel / PCM Sheet
Cabinet Material & Color D20 prepainted steel, white color
Foam Thickness 75MM
Door & Quantity Coated Tempered Glass, 2 Doors Coated Tempered Glass, 2 Doors Coated Tempered Glass, 2 Doors Coated Tempered Glass, 3 Doors Coated Tempered Glass, 3 Doors Coated Tempered Glass, 3 Doors
Thermostat Mechanical Thermostat
Evaporator Tubing Alloy Pipe / Copper Tube
Grid Basket Qty 2 flat + 4 deep 3 flat + 4 deep 3 flat + 6 deep 3 flat + 6 deep 3 flat + 6 deep 4 flat + 6 deep
Product Overview

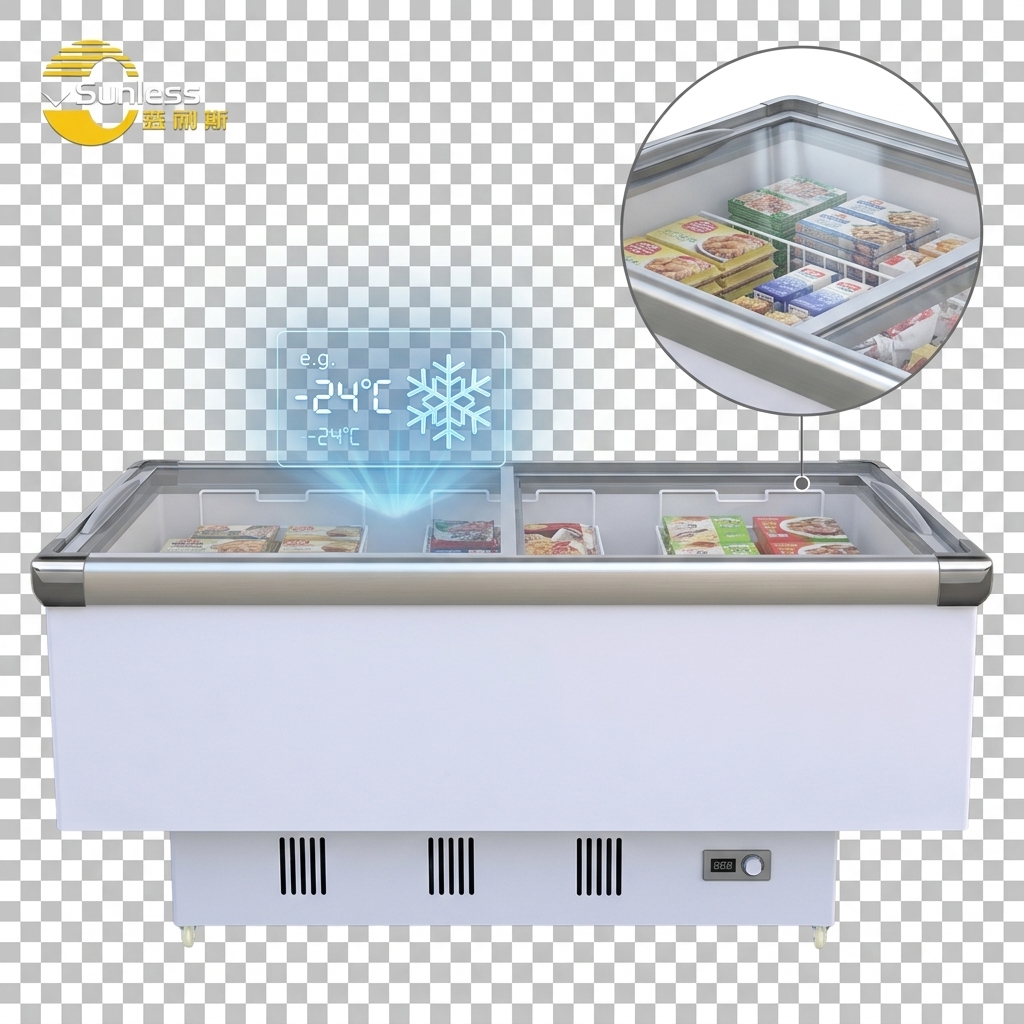

Our flat-top horizontal island freezer is professional commercial refrigeration equipment tailored for retail cold storage. It features a flat sliding tempered glass top with an all-aluminum anti-collision border and thickened high-density polyurethane integrated foaming cabinet. Built with full-copper refrigeration piping and high-efficiency compressor, the machine adopts mechanical knob temperature control, with optional frozen or fresh-keeping temperature settings. Equipped with brake-mounted universal casters at the bottom, multiple units can be freely spliced and combined to form central display islands, featuring stable cooling performance, excellent heat preservation and long service life for continuous all-day commercial operation.

Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Key Features

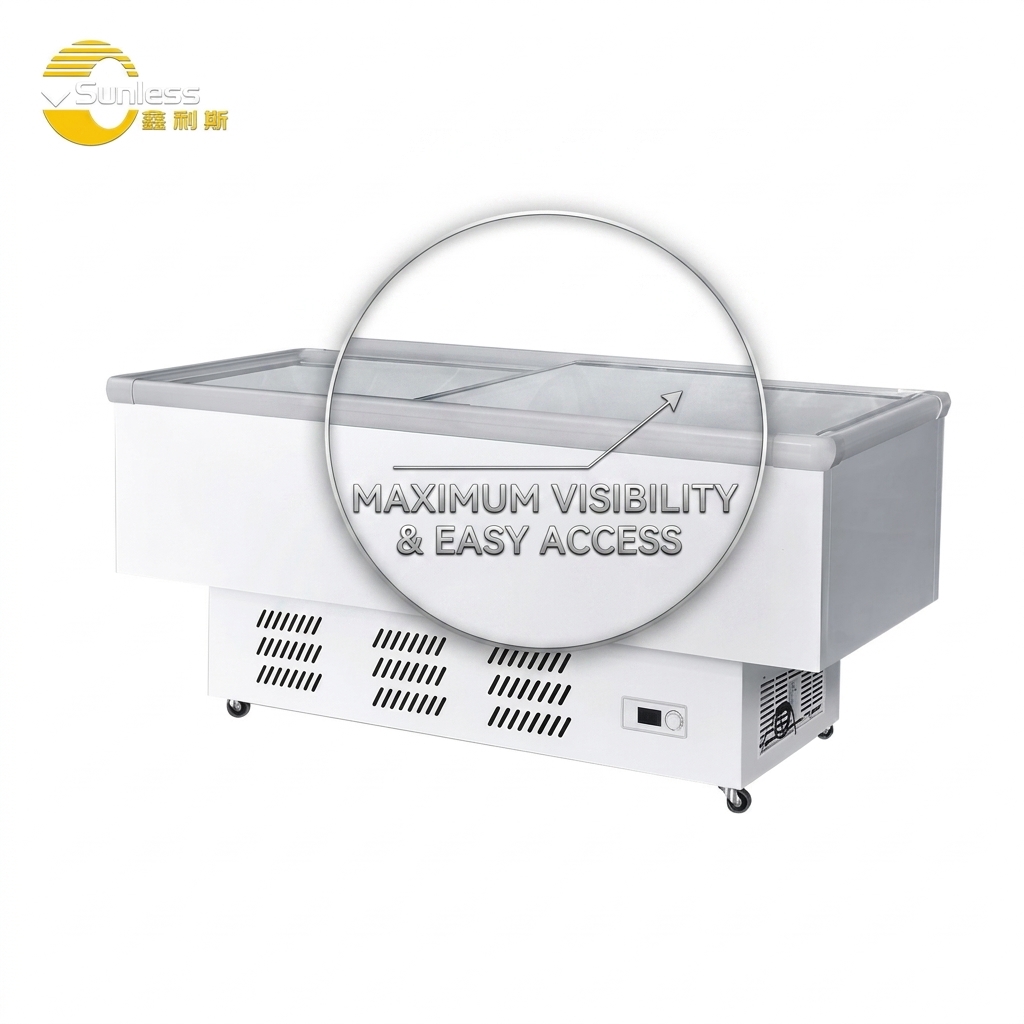

  • Flat full-view sliding glass cover enables intuitive product display while minimizing cold air loss to reduce power consumption
  • Integral thick PU foam insulation effectively isolates external heat, reducing compressor startup frequency for energy efficiency
  • Full copper cooling system achieves rapid and uniform internal temperature reduction with stable operation and low failure rate
  • Anti-collision aluminum edging protects cabinet corners against damage during daily loading and layout adjustments
  • Movable lockable casters support flexible relocation and convenient internal cabinet cleaning
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Related Products
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Deep Freezer
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Combined Island Display Cabinets
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Upright Refrigerator
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Ice Maker
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Ice Cream Display Cabinet
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Meat Hanging Cabinet
Company Profile

Senlis is one of the world's leading manufacturers and suppliers of professional refrigeration equipment. Its award-winning products have earned a global reputation for exceptional performance, superior quality, and excellent value.

Our extensive product line includes high-performance, energy-saving, and environmentally friendly refrigerated beverage coolers, refrigerated bar beer coolers, commercial refrigerators, commercial refrigerated worktops, supermarket meat hangers, air curtain cabinets, restaurant ordering counters, horizontal cabinets, island cabinets, ice cream counters, and ice makers.

Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature

Senlis Refrigeration Equipment Co., Ltd. was established in 2003 and currently has a production base in Shandong, China, and a sales office in Qingdao. We provide a wide range of catering equipment and professional manufacturing services for large-scale projects, including five-star hotels, high-end clubs, chain restaurants, fast food restaurants, and Shandong and Chinese government projects.

We currently export to over 70 different countries worldwide, including Southeast Asia, Africa, Europe, Oceania, South America, and North America.

Welcome to join us to achieve win-win cooperation.

Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Packaging & Shipping
Direct Cooling Commercial Ice Cream Freezer Sliding Door Chest Freezer Island Single Temperature
Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a factory with over 10 years of history, specializing in the production of high-end stainless steel commercial kitchen equipment, such as workbenches, sinks, shelves, cabinets, refrigeration equipment, etc.
2. Can you accept a sample order?
Yes. Both regular products and customized ones.
3. How about the payment method?
T/T will be the best.
4. How long will it take to delivery?
It will take about one month after receiving the deposit.
5. Do you allow a distributor in the abroad market?
Of course. Welcome to be our business partner.
6. How do you package the products?
Individual carton packing or as per your requirement, also wood packaging is acceptable.
