19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Beierde
Packaging Details :
Seaworthy wooden case as the general export package.We use carton as inner packing ,in case of damage in the course of carriage.We also could pack it according to the client's requirments.
Supply Ability :
5 Set/Sets per Month
Price :
$15,000.00/sets >=1 sets
Condition :
New
Type :
Filling Machine
Machinery Capacity :
400BPH, 500BPH, 1000BPH, 100BPH, 200BPH
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Showroom Location :
Viet Nam, Saudi Arabia, Indonesia, India, Kenya, Malaysia
Application :
Beverage
Packaging Type :
Barrel
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V/220V
Dimension(L*W*H) :
3500*2100*2100mm
Weight :
2500 KG
Warranty :
1 Year, One Year
Key Selling Points :
Easy to Operate
Filling Material :
Water
Filling Accuracy :
2%
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pressure vessel, Pump, Gearbox
Filling method :
normal pressure filling
Processing Types :
Washing Filling Capping
Material :
Stainless Steel 304
Capacity :
500-600 BPH
Operator :
1 worker
Bottle type :
5 gallon bottle
Filling material :
Drinking water
Machine name :
Automatic water filling machine
Advantage :
Easy Operation High Efficiency
Port :
Shanghai Port
Description
Barrel Packaging Type 19L Water Filling Bottling Machine for 5 Gallon Mineral 2500 KG
Product Overview

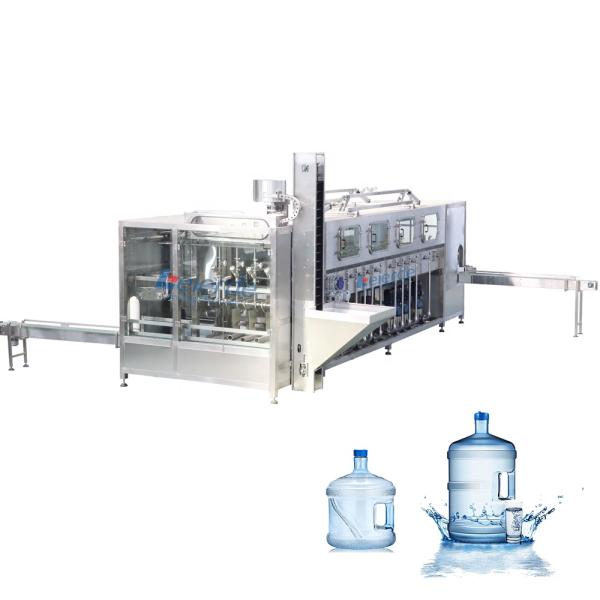

QGF series is special designed for producing 3 gallon bottle water and 5 gallon bottle
water. Whole unit includes bottle washing, filling and sealing. It can fill mineral water, pure water and other drinking water.
Machine is made by 304 stainless steel plate. Main electrical parts are Siemens,Omron, etc.

Main structure of the machine: machine shell, water collecting tank, water pipes, water pump, air cylinder, force conveying parts,

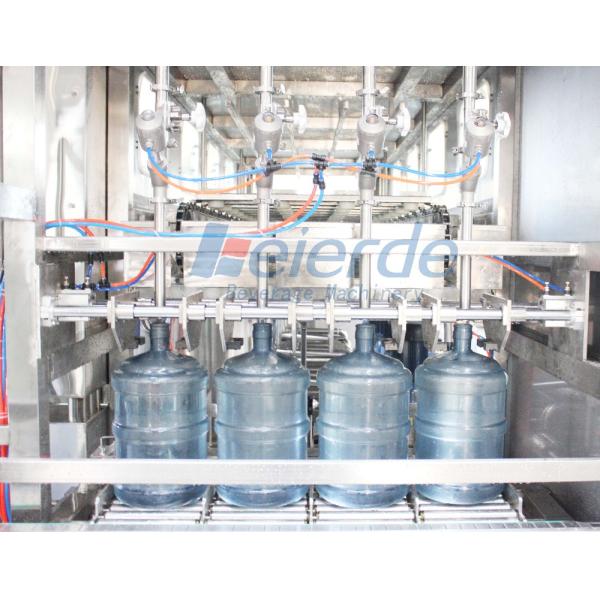

electrical parts, etc. Machine can finish empty bottle washing by several steps, precision fix quantify water filling, automatic

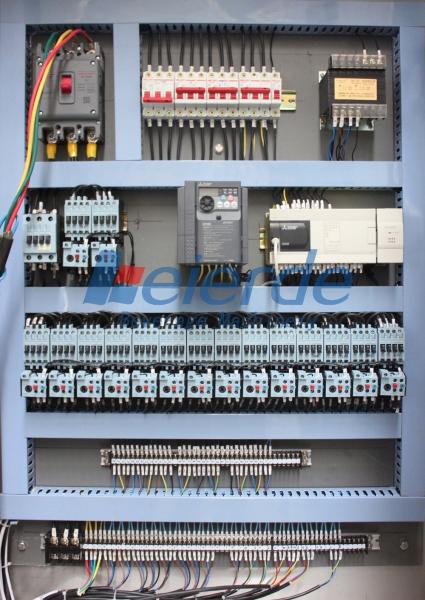

cap sealing in a unit. All action of the machine is controlled by PLC.

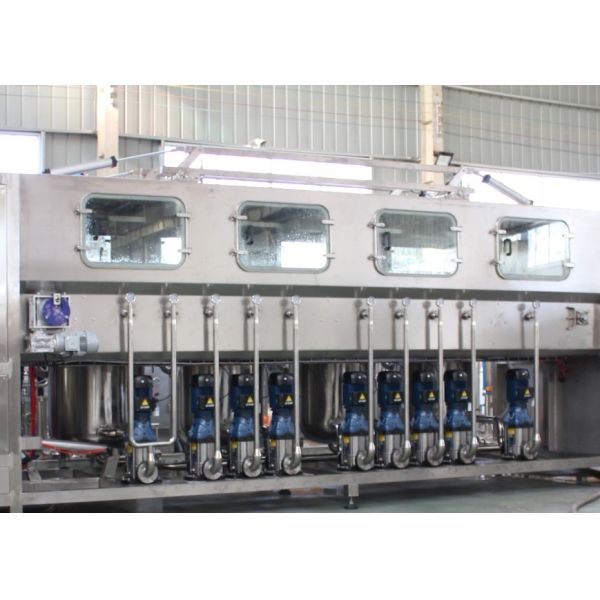

Empty bottle washing: alkaline water washing inside and outside of the bottle – sterilizing water inside and outside washing –
pure water insider and outside washing. Alkaline water and sterilizing water can be recycled. All water washing process is
controlled by PLC. Machine has several protecting devices, which can make the machine run steady.

Whole production line will include: automatic cap removing machine, rotary type bottle washing and brushing machine, automatic
bottle loading machine, bottle inside washing machine, water filling machine, cap loading machine, cap washing machine, cap
sorter, label shrinking machine, light inspector, linear type bottle lifting machine, automatic palletizer and conveying system.
PRODUCT SPECIFICATIONS
Model
QGF-100
QGF-300
QGF-600
Capacity (BPH)
100
200-300
500-600
Bottle washing position
1
2
4
Bottle filling position
1
2
4
Bottle capping position
By cylinder or capping belt
Suitable bottle
5 gallon and 3 gallon bottle
Filling pressure
Normal pressure
Machine size (mm)
2,800×1,1000×2,100
3,200×1,650×2,000
4,000×1,650×2,100
Machine weight (kg)
700
1500
2100
Machine power (kw)
1.5
3.5
4.5
Successful Project
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
Project in Thailand
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
Project in India
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
Project in Russia
SIMILAR PRODUCTS
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
19L 5 Gallon Water Bottle Filling Machine 2500 KG Stainless Steel 304
FAQ
Q1.How can I know your machine has good quality?
A1:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples
for a trial. We will test machine well for you.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 12months guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivery time is based on the exact machine you confirmed,and the bottle sample and caps should confirm by you.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things, we will offer you a spare parts list for your reference,some spare parts for free,some will
charge you the cost price.
