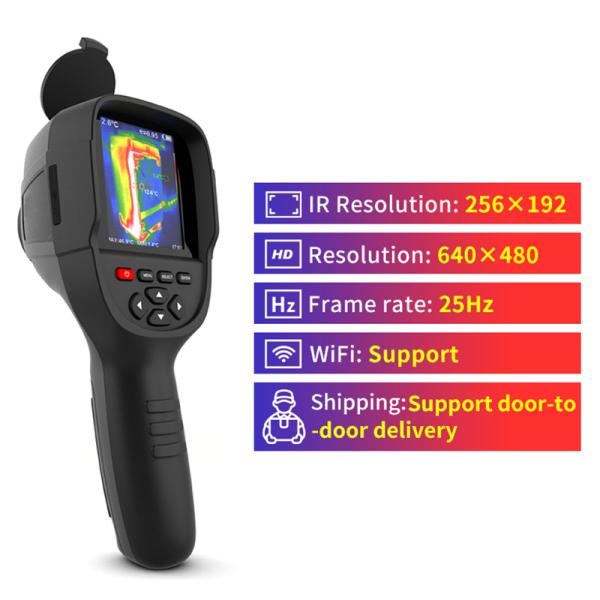

High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Specifications
Place of Origin :
Beijing, China
Brand Name :
LSJ
Model Number :
E320
Display resolution :
384x288
Field of View :
50° x 38°
Thermal color palettes :
5 color palettes
Thermal Image Pixel :
256x192
Image Frequency :
50Hz
Thermal Sensitivity :
＜60mk
Display :
2.8-inch TFT; 640*480 pixels
Frame rate :
25Hz
Field of View (FoV) :
56°x 42°/3.2mm
Focal Length :
3.2mm
Video/Picture :
Support
Hot spot track :
Support
Automatic alarm :
Support
Applications :
Water leak detect; electricity inspection; building inspection
Description
Product Paramenters
Model
LSJ-E310
Displayscreen
3.2"full angle TFT displayscreen
Infraredimage resolution
256×192
LCD resolution
640×480
Field angle/focus length
56°×42°/3.2mm
IFOV
3.75mrad
Pixelspacing
12μm
Frame rate
25Hz
Focusing mode
Manualfocus
NETD
≤50mK@25℃F#1.0
Wavelengthcoverage
8~14μm
Emissivity
Adjustablefrom 0.01 to 1.0
Colorpalette
Rainbow,iron oxide red,cold color,white hot,black hot
WIFI
Support
Measuring range
-20℃~550℃(-4°F~1022°F)
Accuracy
±3%
Setting
Unit、Language、Date、Time、Information
Language
Chinese、English、German、Italian
Storage capacity
Built-in 4G eMMC
File format
JPG
Powerinterface
Micro USB 2.0
Products Description
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Wide FOV The E320 also features a wide 56° field of view (FOV), allowing users to easily capture more objects within the frame. This expansive FOV enhances the efficiency of thermal inspections by covering larger areas without the need to adjust the focal length, providing a more convenient and streamlined user experience.
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Wide Measurement Range & Accuracy The E320 features a wide temperature measurement range of -20℃ to +550℃, making it suitable for a broad spectrum of applications. It can measure temperatures with an accuracy of ±2℃, ensuring precise temperature readings. The high-precision infrared sensor of the E310 boasts a NETD (Noise Equivalent Temperature Difference) of less than 50mK, a measurement accuracy of 0.1 degrees, and an error margin of less than 2%. These specifications guarantee the utmost accuracy in thermal readings, allowing users to trust the reliability of their measurements in critical applications.
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Built-in Fill LED Light The E320 is equipped with a built-in LED light, enabling users to record thermal readings without the need for an additional light source. This feature ensures that the target area is well-illuminated, improving visibility and accuracy in various lighting conditions, and enhancing the overall user experience.
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Built to Last The E320 is designed with durability in mind, featuring an IP66 rating for protection against water and dust. Additionally, it is built to withstand drops from up to 2 meters, allowing you to use the device with confidence and peace of mind in various challenging environments. This robust construction ensures the E310 remains reliable and functional, even under tough conditions.
High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
