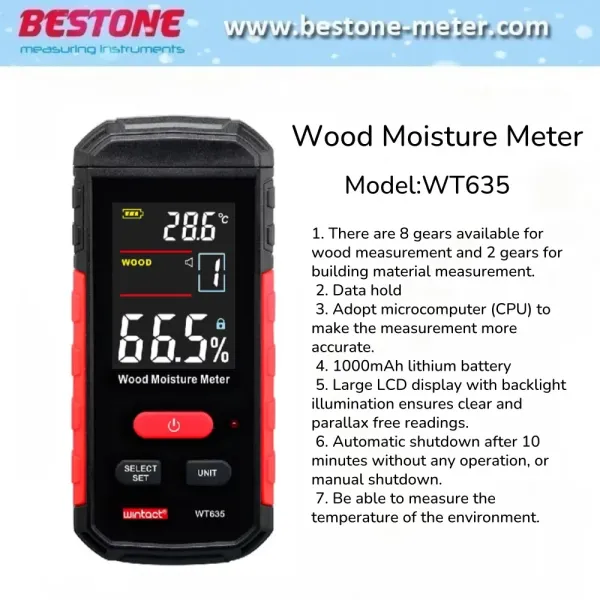

Wood Moisture Meter WT635 - Inductive Humidity & Temperature Measurement
This precision moisture meter utilizes advanced microcontroller technology for accurate moisture measurement in wood, construction materials, and other fibrous materials. Featuring an easy-to-read LCD display and portable design, it's ideal for professional use in various environments.
Key Features

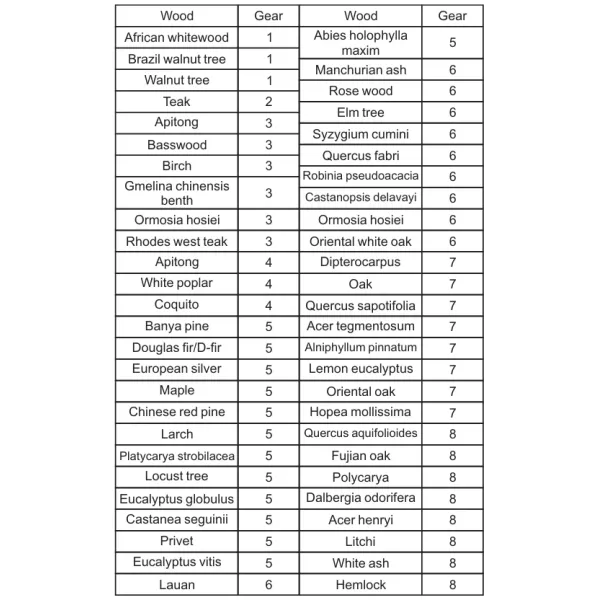

- 10 measurement ranges (8 for wood, 2 for building materials)
- Data hold function for recording measurements
- Microcomputer (CPU) technology ensures measurement accuracy
- 1000mAh lithium battery for extended use

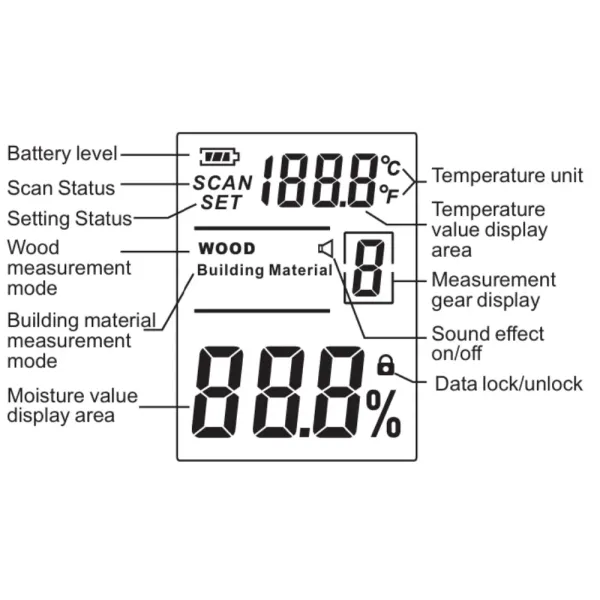

- Large backlit LCD display for clear readings
- Auto power-off after 10 minutes of inactivity
- Built-in environmental temperature measurement
Technical Specifications
| Measurement Type |
Range |
Max Error |
Resolution |
| Wood |
Grade 1: 2~69% |
±2% |
±0.5% |
| Grade 2: 1.5~65% |
| Grade 3: 1~60% |
| Grade 4: 0.5~55% |
| Grade 5: 0.5~50% |
| Grade 6: 0.5~45% |
| Grade 7: 0.5~40% |
| Grade 8: 0.5~35% |
| Construction Material |
Grade 1: 0.5~15% |
±3% |
±0.5% |
| Grade 2: 0.5~12% |
| Temperature |
-9.9 ~ 60ºC |
±2ºC |
±0.1ºC |
| Electrical Specifications |
Value |
| Working Voltage |
DC 2.75~3.7V |
| Working Current |
150mA (No sound) |
| Power |
650mW (No sound) |
| Battery |
1000mAh 3.7V lithium battery |
| Dimensions |
134×61×25mm |
* Moisture content definition: The ratio of water weight to dry material weight (H% = (wet weight - dry weight) / wet weight × 100%)

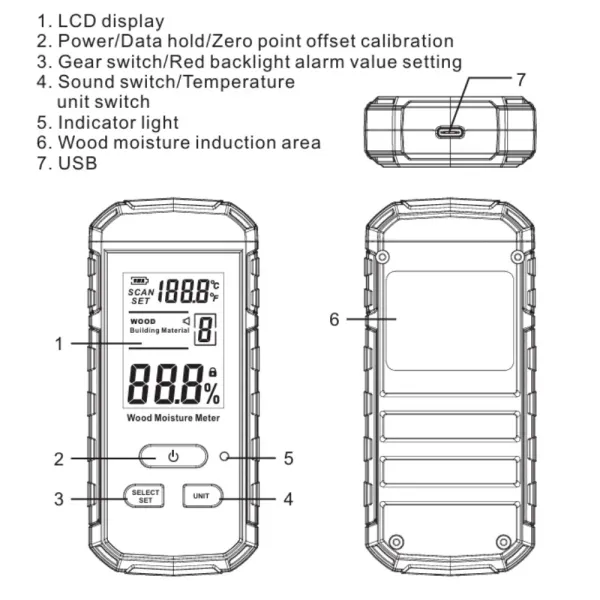

Product Components

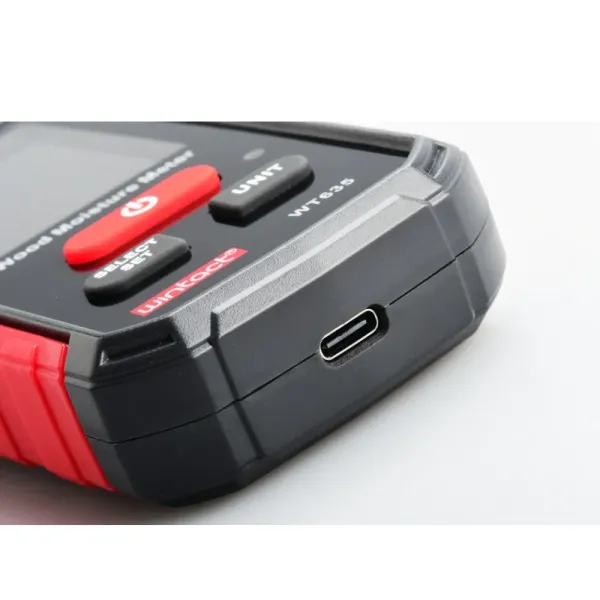

Detailed Product Views
