Specifications
Model NO. :
SM206-NIR
Resolution :
1W/M²
Error Range :
± (10%R+2dgts) R:Readings
Temperature Error :
±0.38W/M² / ºC
Over Load :
“ol”
Transport Package :

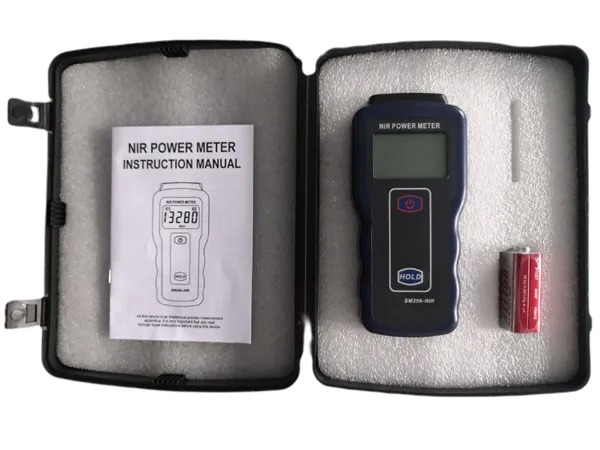

Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031499090
Production Capacity :
500000pieces/Year
MOQ :
2
Price :
79.9
Description

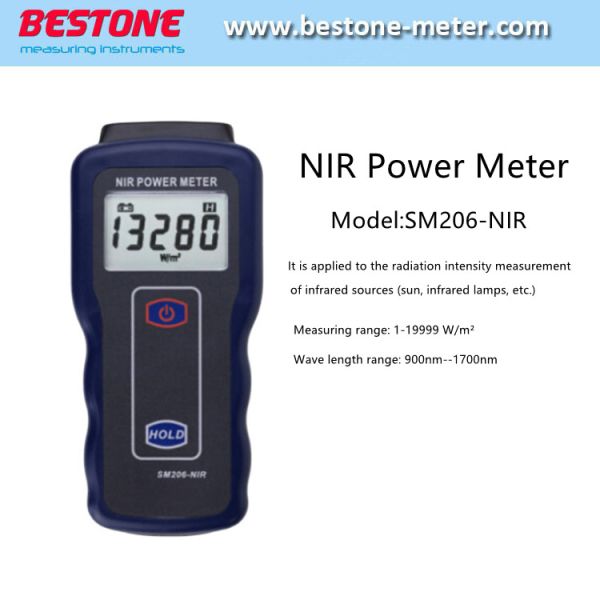

This instrument is a precision instrument for measuring the intensity of solar infrared radiation. It is applied to the radiation intensity measurement of infrared sources (sun, infrared lamps, etc.), the resistance performance test for infrared light (thermal insulation performance test) of building and automotive insulation glass, thermal insulation film etc, the energy test of infrared bath, infrared physiotherapy lamp, infrared electric heater. Infrared light sources are often used for heating, physiotherapy, night vision, communication, navigation, plant cultivation and poultry breeding, etc.
Feature:
1. 4 1/2 digital display
2. Data retention function
3. Wide measure range without adjustment
Specification:

Resolution: 1W/m²

Error range: ± (10%R+2dgts) R:readings

Temperature error: ±0.38W/m² / ºC deviation at 25ºC

Display: 4 1/2 LCD display, maximum displayed numerical value 19999,

over load "OL"

Drift: <±1.5% /year

Measuring range: 1-19999 W/m²

Wave length range: 900nm--1700nm

Peak wave length :1500nm

Sampling time: 2.5 times/s

Operation temperature and humidity: 0°C to 40°C <80%RH

Storage temperature and humidity: -10°C to 50°C <70%RH

Dimensions and weight: 132(L) x 60(W) x 38 (H)mm

Weight: approx. 150g

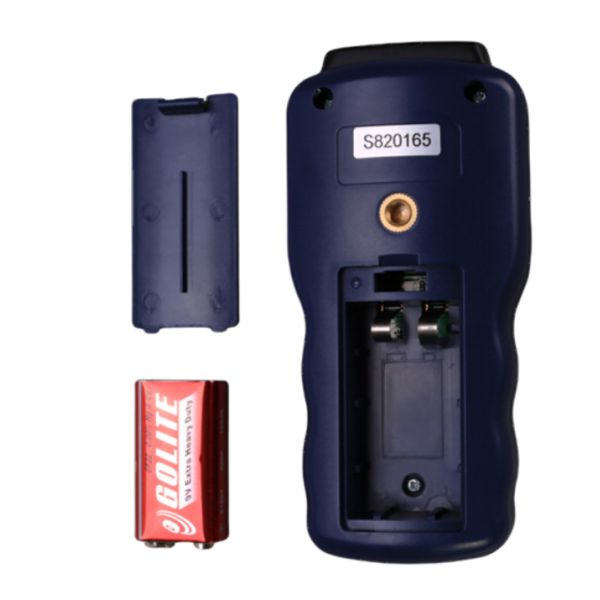

Battery: 6F22 alkaline 9V battery

Battery operation life: Approx. 100 hours
