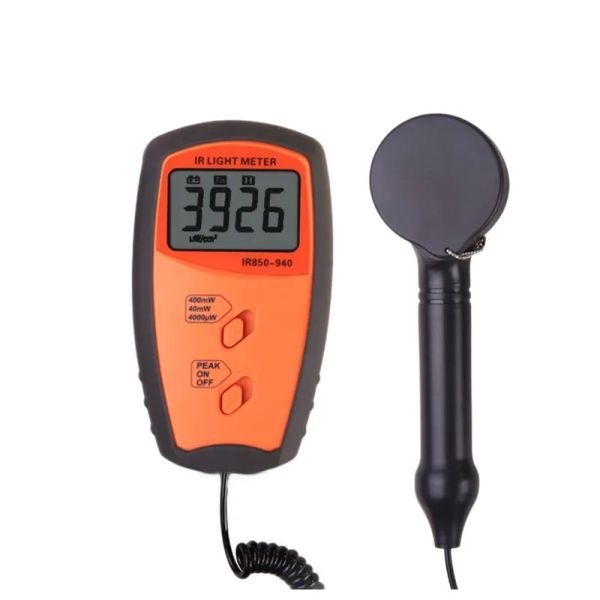

The IR radiometer is a high-precision, power-consuming, hand-held digital instrument with stable performance, easy to use, and easy to carry. It uses SIPIN sensor and precision filter to measure near-infrared radiation intensity. It can be used to measure the transmit power of 850nm--940nm infrared LEDs and infrared remote controls. It can also be used for the detection of infrared illumination in security engineering and the detection of infrared camera performance.
FEATURES
* 3 3/4 digits LCD display, maximum indication 3999
* Measuring range:1μW/cm²-400mW/cm²
* 9V laminated battery supplies power,with low voltage prompt symbol
* Peak hold function, can track pulse signals greater than 200ms
* Shockproof rubber sleeve protects instrument safety.
specification:
Wavelength range: 760nm-1100nm
Ranges: 4000μW/cm²,40mW/cm², 400mW/cm²
Resolution: 1μW/cm²,0.01mW/cm², 0.1mW/cm²
Accuracy: ±5% + 1digit
Sampling rate: 2 times/s
Power Supply: One 9V battery,
Operating Temperature & Humidity: 0ºC to 40ºC(32ºF-104ºF)
0~80%Rh
Storage Temperature & Humidity: -10ºC to 50ºC(14ºF-122ºF)
0~80%Rh
Battery operation life: More than 150 hours
Photo detector dimension: 106x57x26mm
Meter body dimension: 130x72x30mm
Sensor structure: Silicon photodiode and infrared wavelength correction filter
Over Range indication: "OL"
Weight: approx. 210g (Battery included)
