Specifications
Model NO. :
LX1332E
Certification :
CE
Warranty :
1 Year
Measuring Range :
0.1lux~200,000lux 0.01FC~20,000FC
Resolution :
0.1lux
Repeat Testing :
±2%
V(λ) Matching Error :
ƒ'1≤10%
Temperature Characteristic :
±1%/ºC
Transport Package :
Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Production Capacity :
500000pieces/Year
MOQ :
10
Price :
38
Description
Product Description

Appreciate you choose of this Lux meter. Please read this manual carefully before using, it will teach you the right operation method and simple processing. So that the good performance of this meter can be played. This digital LED lux meter is a precise instrument which could be use for detecting light intensity in any situations, especially for LED lighting intensity.

Product Parameters

Measuring range: 0.1Lux~200,000Lux 0.01FC~20,000FC
Display: 3 1/2 digits LCD display, maximum display value 1999
Range selection: 200Lux, 2,000Lux, 20,000Lux,200,000Lux
20FC,200FC,2,000FC,20,000FC
20,000Lux range: reading×10
200,00Lux range: reading×100
20,000FC range: reading×10
Accuracy: <20,000Lux/2,000FC, ±(4%rdg+10dgt)
≥20,000Lux/2,000FC, ±(5%rdg+10dgt)
(Calibrated to standard incandescent lamp at color temperature 2856K)
Resolution: 0.1Lux
V(λ) matching error:ƒ'1≤10%
Repeat testing: ±2%
Temperature Characteristic: ±1%/ºC
Sampling time: 2times/sec
Photo Sensor: one silicon photo diode with filter
Operation temperature-humidity: 0ºC to 40ºC(32ºF-104ºF) 0~70%RH
Storage temperature-humidity: -10ºC to 50ºC(14ºF-140ºF) 0~80%RH
Over load: Indication of "1"
Power Supply: One 9V battery, Model 6F22
Battery life: 200 hours for continuously use
Dimension: 185*68*38mm
Weight: About 130g

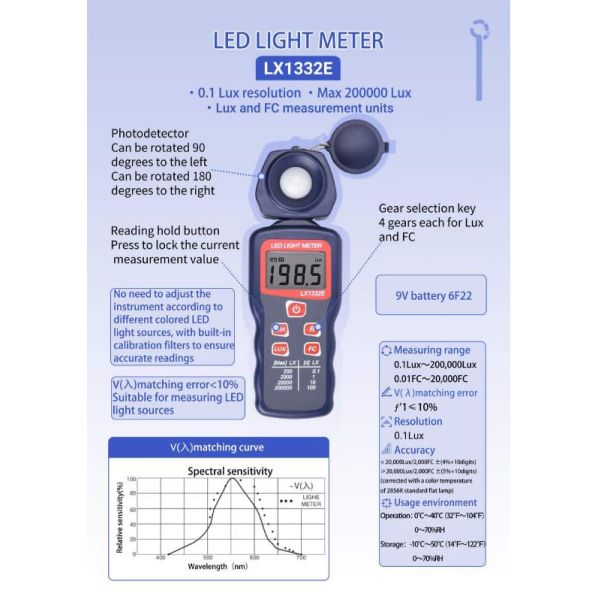

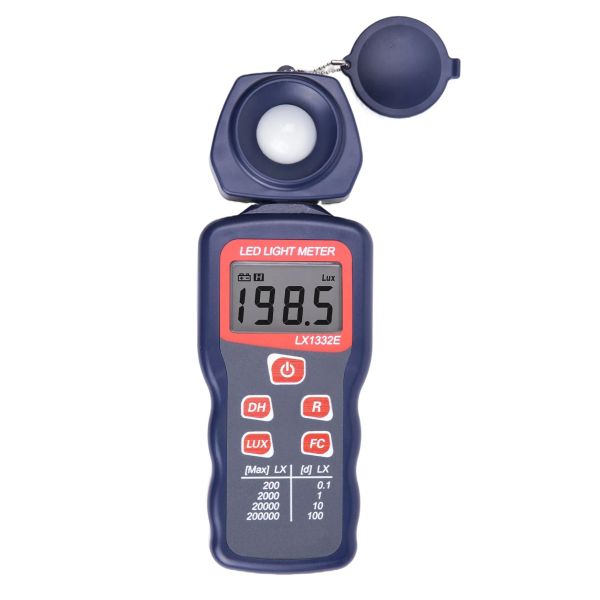

Detailed Photos

  1. Photo sensor (can left rotate 90 degree, right rotate 180 degree)
  2. LCD display
  3. Power switch button
  4. Range select button: 200.0Lux,2,000Lux,20,000Lux, 200,000Lux;
or 20.00FC,200.0FC,2,000FC,20,000FC
5. FC unit select button
6. Data hold button
7. LUX unit select button
