Applications
This product can be used for pH value measurement, solution temperature measurement and sensor voltage measurement of the solution. It is widely used in industries, electric power, agriculture, medicine, food, scientific research and environmental protection and other fields.
Features
- Measurement of pH value of solution
- Measurement of solution temperature
- Sensor voltage measurement
- Solution temperature compensation
- Automatically/manually record data and generate reports
- Data storage, viewing and deletion
- Adjustable sampling time interval
- Adjustable automatic shutdown time
- Self-calibration, Standard [4.00]-[6.86]-[9.18], optional [4.00]-[7.00]-[10.00]
- Temperature unit selection
- Restore factory settings
- Adjustable screen brightness
- Chinese/English selection
- Low battery prompt and power prompt
- USB charging
- Connect to computer PC software to transfer data
- It can generate csv and bmp files compatible with the Windows system, and can also be used as a small-capacity storage device (USB flash drive) to store files in other formats.
Common Error Displays
| Display |
Instructions |
| Display [OL.] |
Indicates that the data is out of range(overload). |
| Display [NC.] |
Indicates that the probe is not connected or the signal is disconnected (no connect). |
| Display [ATC] |
Indicates that the influence of temperature on the pH value is compensated (auto temperature compensation). The acidity and alkalinity of the solution will be affected by temperature changes. If the acidity and alkalinity of the solution to be tested are not affected by temperature, you can press the ENTER button briefly to cancel the ATC compensation. |
Technical parameters
|
Range |
Resolution |
Error |
| PH |
0.00~14.00 |
0.01 |
±0.05 |
| Temperature |
0℃~60℃(32~140°F) |
0.1℃ |
±1.0℃ |
| Voltage |
-500~500mV |
1mV |
±3% |
| Solution temperature compensation range |
0~60℃(32~140°F) |
| Working environment |
0~50℃(32~122F),<85%RH |
| Data storage |
8MB (Can store about 397,000 data) |
| Battery |
3.7V 1000mAh lithium battery |
| Low battery prompt |
4 levels of power indication. When the voltage is over than 3.3V, it will automatically shut down |
| Charging adapter |
5V/2A |

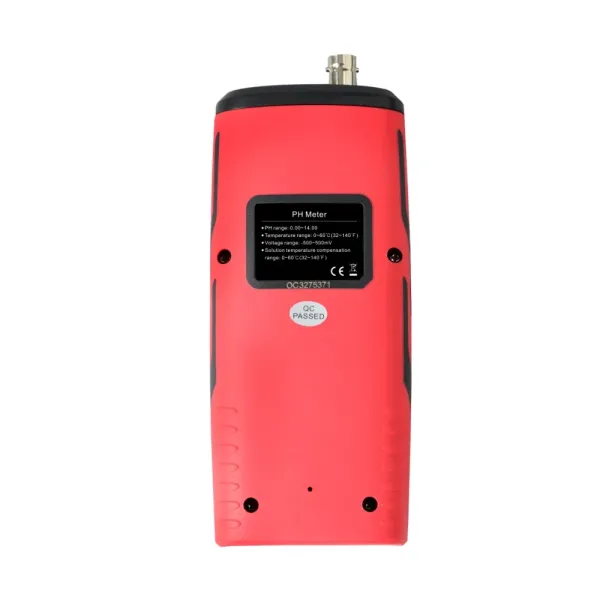

Product Images

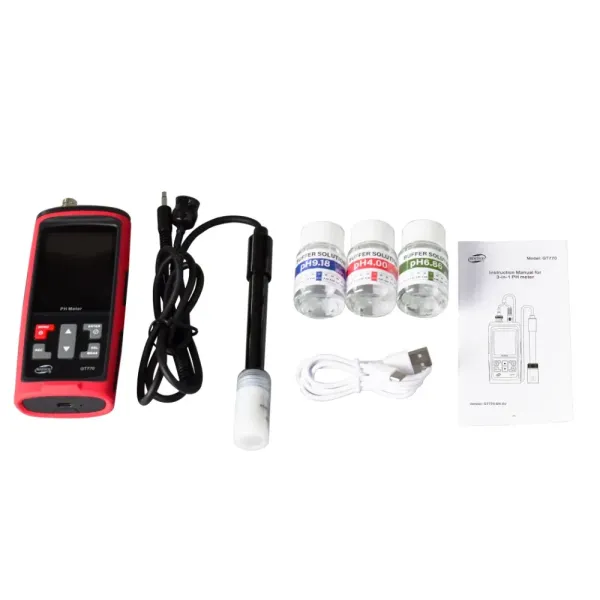

Shipment Contents
- PH Meter: 1 piece.
- 3.7V 1000mAh lithium battery (Built-in):1 piece.
- pH electrode: 1 piece.
- Calibration solution: [4.00]- [6.86]- [9.18]:3 bottles. (Not included for international transportation).
- USB cable:1piece.
- English Manual: 1 piece.
- Color Box Packaging: 1 piece.
- Fabric portable bag: 1 piece.
