SM6240Plus 5 Digits LCD Digital Stroboscope Tachometer with Backlight for Non-contact Detection and 0.05% Accuracy
SM6240Plus 5 Digits LCD Digital Stroboscope Tachometer with Backlight for Non-contact Detection and 0.05% Accuracy
SM6240Plus 5 Digits LCD Digital Stroboscope Tachometer with Backlight for Non-contact Detection and 0.05% Accuracy
SM6240Plus 5 Digits LCD Digital Stroboscope Tachometer with Backlight for Non-contact Detection and 0.05% Accuracy
SM6240Plus 5 Digits LCD Digital Stroboscope Tachometer with Backlight for Non-contact Detection and 0.05% Accuracy
SM6240Plus 5 Digits LCD Digital Stroboscope Tachometer with Backlight for Non-contact Detection and 0.05% Accuracy
Specifications
Detection Method :
Non-contact
Model Number :
SM6240PLUS
Time Base :
10MHz Industrial Grade Quartz Crystal
Delivery Time :
5-8 working days
Accuracy :
0.05%
Supply Ability :
More than 1000pcs per month
Display LCD :
5 Digits LCD with Backlight, Max. Indication: 400
Weight :
220g (including battery)
Packaging Details :
Plastic carrying case
Display :
5 Digits LCD with Backlight, Max. Indication: 40000
Brand Name :
Bestone
Measuring Range :
60 ~ 50000rpm/FPM
Power Supply :
4×3.7V AA lithium-ion rechargeable battery (14500)
Payment Terms :
T/T
Noctilucence :
LCD
Certification :
CE
Store :
10 Commonly Used Stroboscopic Data
Place of Origin :
CHINA
MOQ :
5
Size :
195×73×38mm
Description

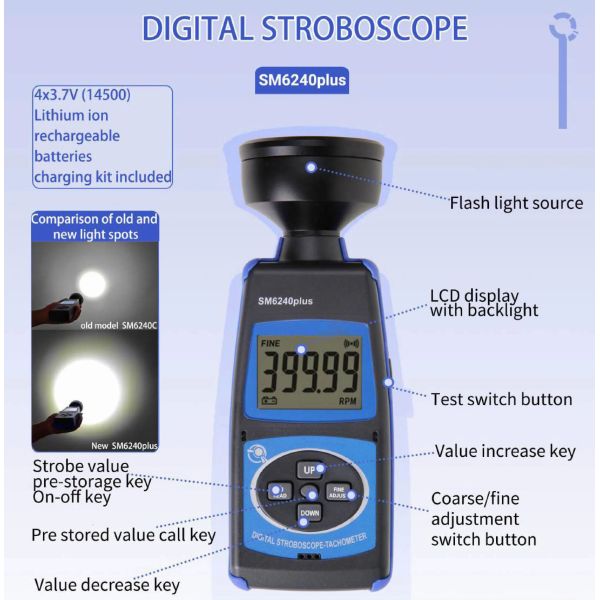

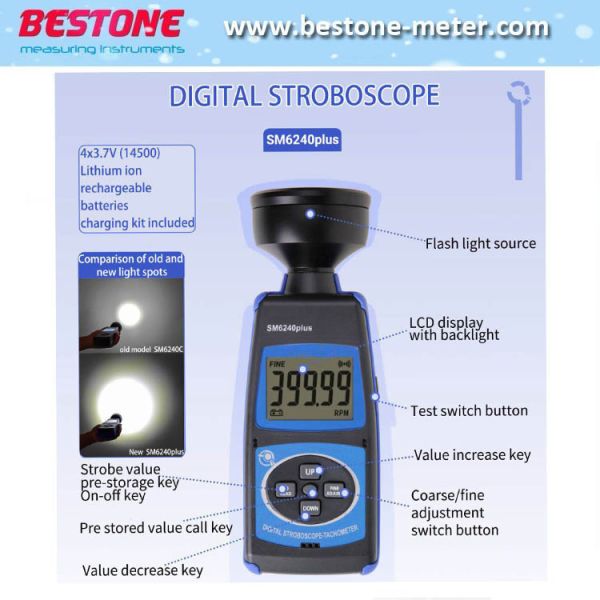

SM6240PLUS 5 Digits LCD Digital Stroboscope Tachometer With Backlight
Product Overview

The stroboscope is a precision rotational speed and vibration measuring instrument that utilizes the persistence of vision principle. When the light source flashing at the set frequency synchronizes with the rotational speed of the object, it creates a relatively static visual persistence phenomenon, enabling clear observation of high-speed moving objects.

This non-contact measurement technology allows for accurate rotational speed measurement of various rotating objects, as well as detection of motion states and surface defects. Applications include rotor analysis, gear meshing inspection, vibration equipment diagnostics, textile machinery, printing equipment, production lines, and other high-speed rotating object surface defect detection.

Key Features
  • Advanced micro-computer technology (CPU) with software frequency generator and anti-interference technology
  • Large LCD display with backlight for clear, parallax-free readings
  • Dual adjustment modes: single-step adjustment (coarse/fine) and continuous adjustment (coarse/fine)
  • Powered by 4×3.7V AA lithium-ion rechargeable batteries (14500) with automatic low-voltage indication

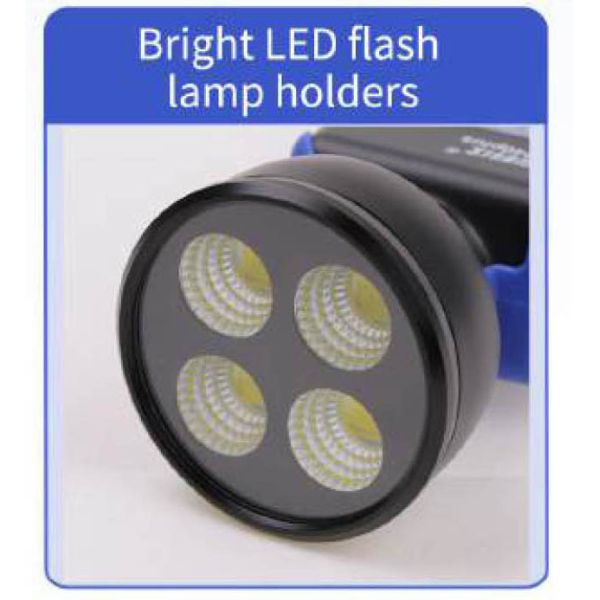

  • Double brightness output for enhanced observation capabilities
  • Sturdy construction using durable electronic components and lightweight ABS+PC engineering plastic casing

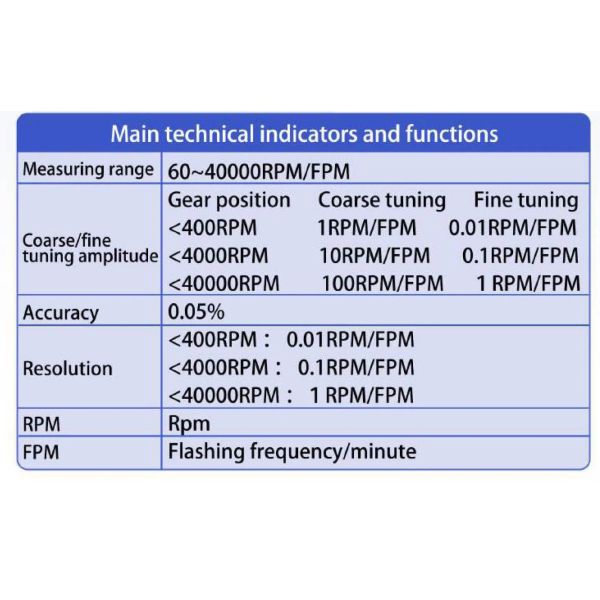

Technical Specifications
Display 5 Digits LCD with backlight, Maximum indication: 40000
Test Range 60~50000 RPM/FPM
RPM: R/min | FPM: F/min
Coarse/Fine Tuning Ranges:
• <500 RPM: Coarse 1 RPM/FPM, Fine 0.01 RPM/FPM
• <5000 RPM: Coarse 10 RPM/FPM, Fine 0.1 RPM/FPM
• <50000 RPM: Coarse 100 RPM/FPM, Fine 1 RPM/FPM
Resolution • <500 RPM: 0.01 RPM/FPM
• <5000 RPM: 0.1 RPM/FPM
• <50000 RPM: 1 RPM/FPM
Measurement Accuracy 0.05%
Power Consumption Approximately 60mA (5000ppm)
Time Base 10MHz industrial grade quartz crystal
Power Supply 4×3.7V AA lithium-ion rechargeable batteries (14500)
Dimensions 195×73×38mm
Weight 220g (including battery)
Operating Temperature 0～40℃
Standard Accessories 1 portable box, 1 operation manual, 4×3.7V lithium-ion rechargeable batteries (14500), 1 charging adapter, 1 charging plug
