GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
Specifications
MOQ :
60
Price :
EXW US$12
Brand Name :
Benetech,Bestone
Model Number :
GM8906
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pcs per month
Delivery Time :
3-5 working days
Packaging Details :
color paper box
Model NO. :
GM8906
Application :
Vehicle, Net Speed
Display :
Digital
Detection Method :
Contact
Noctilucence :
Backlight
Weight :
106g
Other :
Max., Min., Avg. and Last Value
Transport Package :
Box
Origin :
China
HS Code :
9027899090
Description

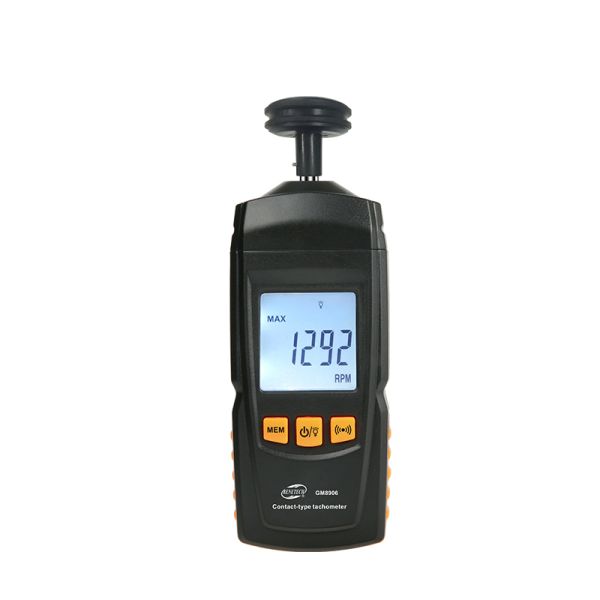

LCD Display Digital Motor Tachometer GM8906 Nondestructive Testing
Product Overview

Tachometer is one of the necessary instruments in machinery industry, which is used to measure rotation speed, linear speed or frequency of electric motor, as well as rotation speed of impeller blades, roller and shaft. It is widely used in industries like electric motor, fan, washing machine, textile, automobile, aircraft, ships, etc.

Key Features
  • Hold the maximum value, minimum value, average value and the last measured value.
  • Fully display operation instruction and unit symbol, which is concise and explicit.
  • Wide measuring range and high resolution.
  • Battery low power indication, LCD backlight display, and auto shutdown.
  • Adopt the latest microprocessor technology and laser technology, which enables the instrument to be more intelligent and reliable.
  • Oversized screen LCD display, with clear indication.
  • Solid and dedicated structure. The entire machine adopts durable and optimized electronic elements, and the shell adopts light and solid ABS plastic, with beautiful appearance and convenient use.
  • Data retention.
  • Non-contact operation (only GM8905).
Technical Specifications

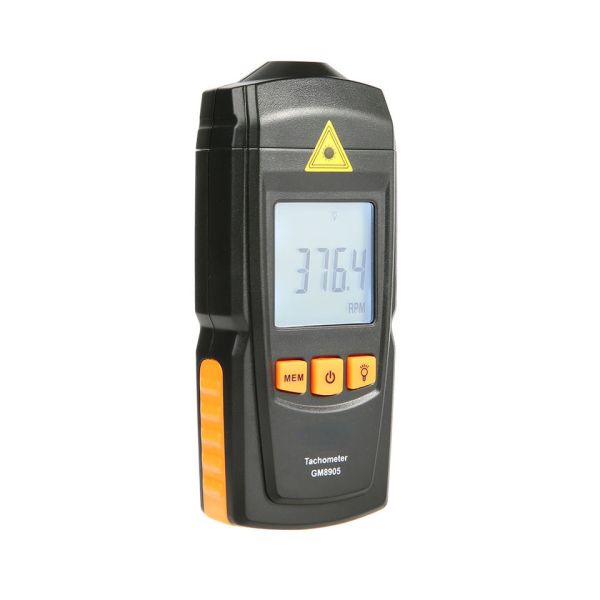

Model GM8905 GM8906
Unit rpm rpm, m/min, ft/min
Range 2.5-99999rpm 0.5-19999
Basic precision ±(0.1%n+5d) rpm; (2.5~999.9rpm) ±(1%n+5d) rpm; (1000~99999rpm) 0.05%+1
Resolution ratio 0.1rpm(2.5~999.9rpm) 1rpm(1000~99999rpm). 0.1rpm(0.5~999.9rpm) 1rpm(1000~19999rpm)
Sampling ratio Once/second 0.8S (60RPM or above)
Measurement distance 50-500mm Contact
Dimension 55.7*29.9*127mm 55*33*157.8mm
LCD display 5-digit large screen LCD display, with word height of 18mm
Laser power CLASS IIIA2 5mW(for GM8905)
Time base Quartz crystal
Automatic shutdown The instrument will shut down after 60 seconds without any pressing.
Operation environment 0~50℃;32~122℉;10%~90%RH
Storage environment -10~80℃; -14~176℉;10%~75%RH
Power supply 2x1.5V AAA battery
Weight 106g
Equipped with 3 bars of silver reflection tag (200mm*12mm) (for GM8905)

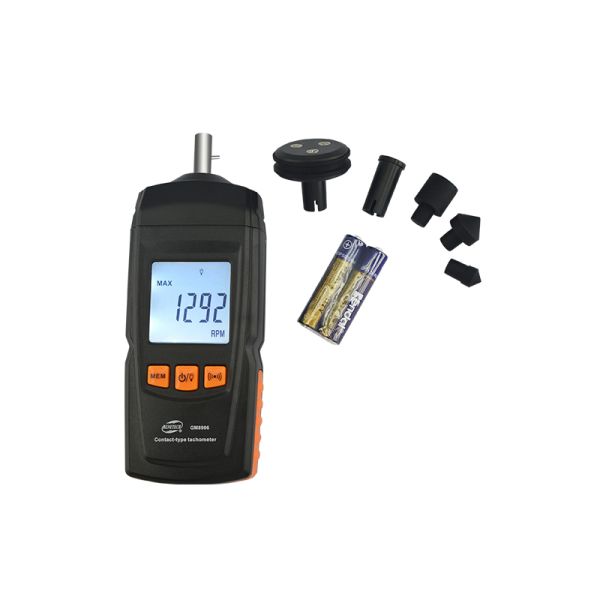

The contents included in the shipment:

  1. Tachometer:1pc
  2. English Instruction Manual:1pc.
  3. 1.5V AAA battery:2pcs. (International shipment excluding)
  4. Silver reflection tag:3pcs (for GM8905); Probes:5pcs (for GM8906).
  5. Paper color box:1pc.
Product Images
GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement GM8906 Motor Tachometer Digital LCD with Backlight for Non-destructive Testing 0.5~99999 RPM Measurement
