SM6806plus Digital RTD Thermometer
The SM6806plus RTD thermometer delivers exceptional testing accuracy up to 0.05°C, designed specifically for high-precision temperature measurement applications. Featuring a PT100 platinum resistance temperature sensor with a 1-meter extension cable, this instrument provides reliable temperature readings with the sensitive probe section located 10mm from the tip. For optimal performance, position the probe within the tested environment or ensure tight contact with the measured surface. The thermometer supports three temperature units (Kelvin, Fahrenheit, and Celsius) with easy conversion, plus advanced functions including data recording, recall, and maximum/minimum value tracking.
Key Features
- High accuracy and resolution for precise measurements
- Digital display with switch-controlled LCD background light
- Wide measurement range suitable for various applications
- Three selectable temperature units: ℃/℉/K
- Upper and lower limit temperature setting capability
- Multiple data storage functions

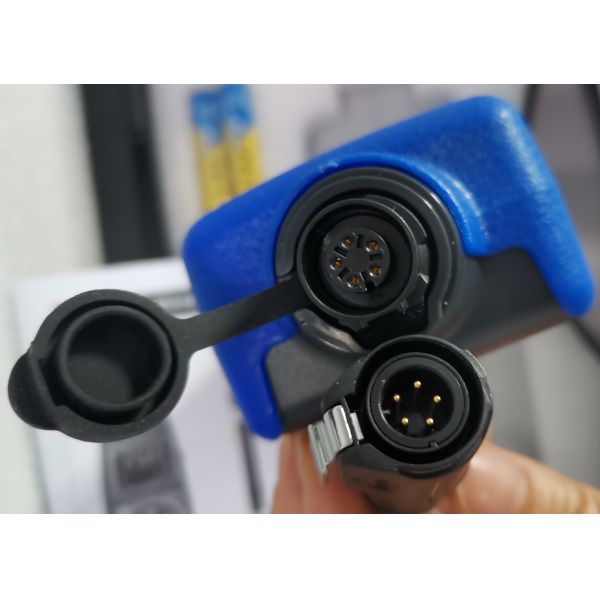

- Probe socket with spring snap-type reinforced lock
Technical Specifications
| Measuring Range |
-199.95℃ to 199.95℃ 200.0℃ to 600.0℃ |
| Resolution |
0.05℃ (<200℃) 0.1℃ (≥200℃) |
| Accuracy |
±(0.05% + 0.1℃) |
| Display |
High brightness VA green screen |
| Sampling Rate |
2.5 times/second |
| Data Recording |
256 data sets |

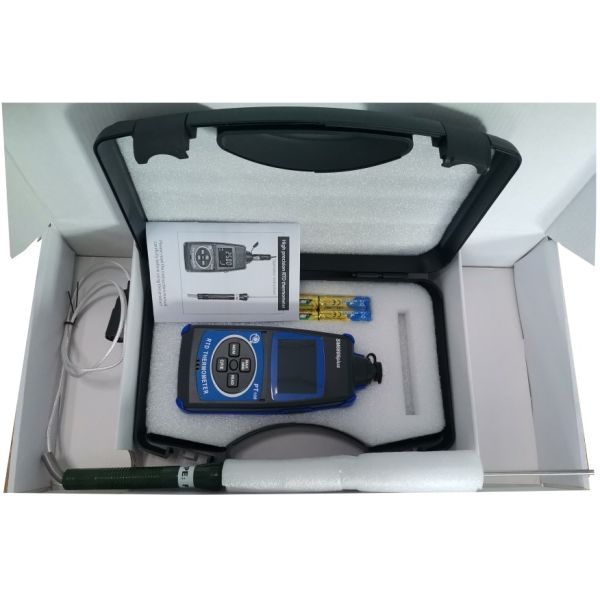

Standard Accessories
- Digital RTD Thermometer unit
- Measurement probe
- Plastic carrying case and white paper box
- Instruction manual
- 4 AAA batteries (excluded for air shipping)
