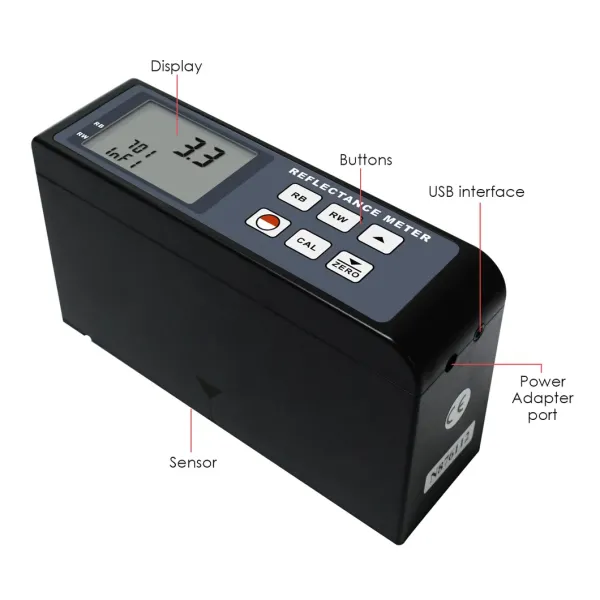

RM-206 Light Reflectance Meter
Professional portable instrument for measuring light reflectance of specular and diffuse surfaces, coatings, pigments, and plastics with 0-100 range.
Applications
Measures transparency of coatings, grease, films, plastic products, and organic materials, as well as reflectivity of solid surfaces including stereo movie screens. Widely used in coatings, pigments, inks, plastics, printing, dyeing, leather, and film screening industries for quality control and standardized inspection.
Key Features
- Complies with international standards ISO3906-1980 (E), ISO3905, ISO2814 and national standards GB/T13452.3-92, GB9270-88, GB5211.17-88
- RS-232 data output for PC connectivity
- Optional Bluetooth data output
- Complete set includes main unit, standard boards (black and white), and testing boards (black and white)
- Advanced photoelectric measurement technology for accurate readings
Technical Specifications
| Range |
0~100 |
| Resolution |
0.1 |
| Accuracy |
±1 |
| Repeatability |
0.3 |
| Measuring Area |
7x14mm (Ellipse) |
| Operation Temperature |
0~40°C |
| Operation Humidity |
<85%RH |
| Power Supply |
3.7 V Lithium Ion Rechargeable Battery |
| Size |
141x45x79mm |
| Weight |
310g (Including Batteries) |
Display data is directly proportional to reflected light. Spectral sensitivity approximately equals the product of Sc(λ) and y(λ).
Standard Accessories

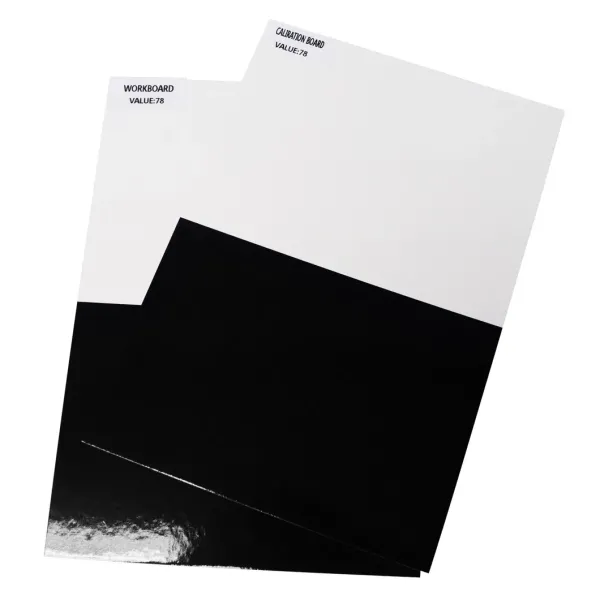

Main Unit, Standard Board (Black), Standard Board (White), Testing Board (Black), Testing Board (White), Power Adapter, Optic Cleaning Cloth, Carrying Case, Operation Manual
Optional Accessories
USB Data Cable with Software, Bluetooth Data Adapter with Software
